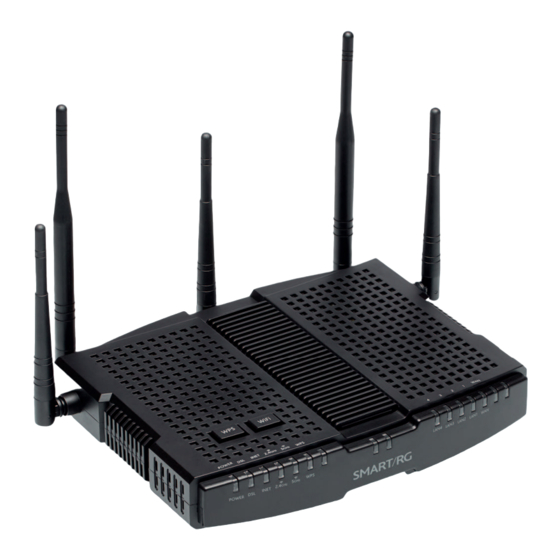

- Page 1 SR700ac Quick Start Guide...
-
Page 2: Installation
Installation 1. Connect one end of the phone cable to the DSL port on the gateway and connect the other end to the phone jack on the wall installed by your provider. 2. Connect one end of the Ethernet cable to a LAN port on the gateway and connect the other end to your computer. 3. - Page 3 POWER Reset...
-
Page 4: Led Indicators
LED Indicators The LEDs on the SR700ac gateway can help you better understand the current state of your gateway. Legend: Green Green blinking Red blinking Action Explanation All LEDs except those Connection enabled. listed below Data being transferred. DSL & WAN Not lit Connection dropped;... - Page 5 Action Explanation WPS setup procedure in progress. WPS connection completed. No partner found for pairing. Session overlap detected. Possible security risk.
-
Page 6: Logging In To Your Gateway
Warning: Do not press the Reset button unless you want to clear the current settings. The Reset button is in a small circular hole on the rear panel. If you want to restore the default settings, insert a thin wire (such as a paper clip) into the hole, press the Reset button gently for 1 second, and then release the button. - Page 7 Configuring an LTE Connection 1. With the gold contacts facing up, insert the SIM card containing the LTE information into the SIM slot on the back of the gateway. Note: The SR700ac gateway accepts a Standard SIM (15 x 25mm) card. 2.
- Page 8 4. In the APN Name field, enter the APN for your network provider. 5. Click Save/Apply to apply your changes. Note: It may take up to 90 seconds for the Save action to complete. Your device should now be connected to your network via LTE.
- Page 9 WiFi Setup Two methods, WPS and Manual, are available for WiFi setup. Perform the steps on this page first, and then follow the instructions for the applicable method. 1. In the left navigation bar, click Wireless. 2. If the Enable Wireless option is not already selected, select it now.
- Page 10 WPS Method If the device you wish to connect to the Internet via your gateway supports the WPS secure WiFi connection method, follow these steps. 1. In the left navigation bar, click Wireless. 2. Click the wireless band that you want to configure and then click Security. 3.
- Page 11 4. In the Select SSID field, select the network to which you want to connect. 5. Click Apply/Save. 6. Within 2 minutes, activate on the 3rd party device to which you wish to connect. The device may have a pushbutton on its exterior or a software interface is used to initiate WPS connection. To learn how to use the WPS feature on your client device, refer to its documentation.
- Page 12 Manual Method Set up your gateway’s parameters first, then follow these steps. 1. In the left navigation bar, click Wireless. 2. Click the wireless band that you want to configure and then click Security. 3. Scroll down to the Manual Setup AP section.
- Page 13 4. If your gateway supports multiple wireless networks, select the SSID of the network you wish to configure. You will need this ID for Step 9. 5. Select the desired Network Authentication. Make sure that the host devices you intend to use support the selected authentication type.
-
Page 14: Optional Wall Mount
Optional Wall Mount 1/16” (2-3mm) Wall Anchor Using the template below, mount the two included screws to the wall. Using wall anchors is recommended. 5.12" (130mm) Slide the back of the gateway down onto the screws. -
Page 15: Additional Support
Predefined wireless settings If you change the preset wireless settings WiFi network name (SSID) Network key (password) Additional Support If you require further instructions, please contact your local ISP Support. SmartRG Inc., an ADTRAN company. All Rights Reserved. © 2019...
