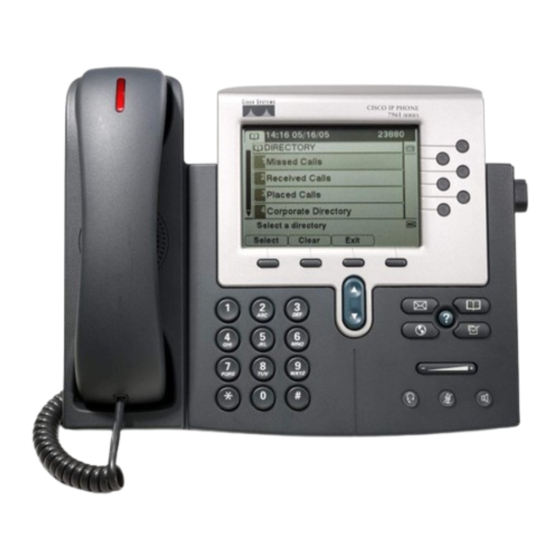

Cisco IP Phone 7941/7942/7961/7962 Users
Name
1
Cisco phone model
2
LCD screen
3
Line / speed-dial button
4
Foot stand adjustment
5
Directories button
6
Question button
7
Settings button
8
Speaker button
9
Mute button
10 Headset button
11 Volume button
12 Services button
13 Messages button
14 Navigation button
15 Keypad
16 Soft keys buttons
Guide
Description
Shows the Cisco Unified IP phone model number.
Displays information such as call status, phone number, and soft key tabs.
Opens a new line, speed-dials a phone number, or ends a call.
Allows you to adjust the angle of the phone base.
Provides access to phone directories.
Get help about button by pressing this button and then press the button
you want help with. The help information will appear in the LCD screen.
Provides access to phone settings such as display contrast and ring type.
Toggles the speaker on and off.
Toggles mute on and off.
Toggles the headset on and off.
Increases or decreases handset, headset, ringer, or speakerphone volume
depending upon which feature is currently active.
Provides access to phone services.
Provides access to the voice mail system.
Scrolls through text and selects features that are displayed on the LCD
screen.
Functions like a traditional telephone keypad.
Engages the functions displayed on the corresponding LCD tabs.
