Structural Concepts Reveal NE3620RSSV User Manual

Reveal® User Manual
P A R T N U M B E R : 2 1 - 3 4 8 2 2
Please Note
Your specific model number is located on the
serial label (usually at the case rear). However,
label locations may vary depending on the
model – see page 20 for more details.

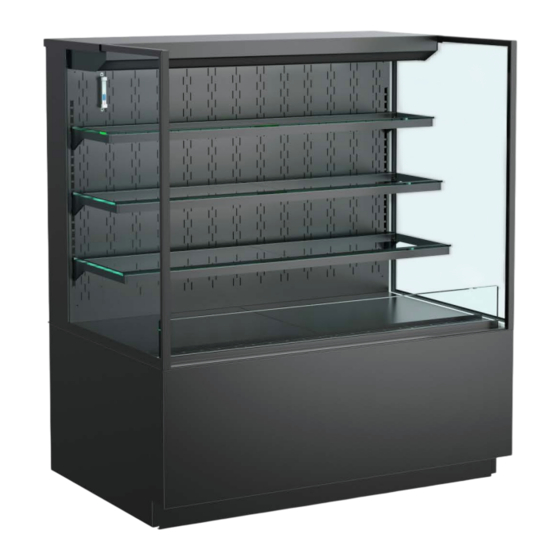

Models shown on this cover sheet do not
represent all models covered by this manual.
Support: structuralconcepts.com/support
Tech Service/Warranty: 1 (800) 433-9490, EXT. 1
Hours: Monday – Friday, 8am to 8pm EST (Closed holidays)
21-34822 REVEAL REFRIGERATED SELF-SERVICE MANUAL-EN
Models
NE3613RSSV NE7220RSSV
NE3620RSSV NE7227RSSV
NE3627RSSV NE7235RSSV
NE3635RSSV NR3633RSSV
NE4813RSSV NR3640RSSV
NE4820RSSV NR3647RSSV
NE4827RSSV NR3655RSSV
NE4835RSSV NR4833RSSV
NE6020RSSV NR4840RSSV
NE6027RSSV NR4847RSSV
NE6035RSSV NR4855RSSV
Before contacting, you must have the following:
Serial no., model no., store no., store address, details (photos, leak locations,
damage, store's ambient conditions, etc.)
NR6040RSSV
NR6047RSSV
NR6055RSSV
NR7240RSSV
NR7247RSSV
NR7255RSSV
REV IR DATE: 08/01/24
