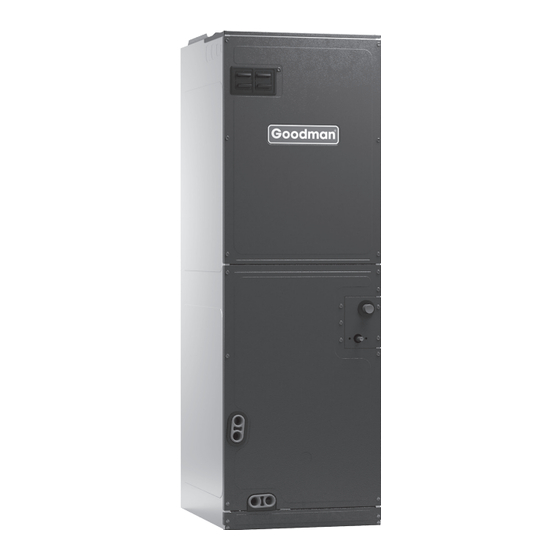

Goodman ARUF Series Manual
Multi-position, multi-speed air handler with psc motor 1 1/2 to 5 tons
Hide thumbs
Also See for ARUF Series:
- Installation and operating instructions manual (13 pages) ,
- Manual (4 pages) ,
- Installation & operating instructions manual (14 pages)
Table of Contents
Advertisement
Product Features
• Check flowrator for cooling
and heat pump applications
• Direct drive, multi-speed PSC blower motor
• All-aluminum evaporator coil
• Coil mounting track for quick repositioning
• Cabinet air leakage less than 2.0% at
1.0 inch H₂O when tested in accordance
with ASHRAE standard 193
• Cabinet air leakage less than 1.4%
at 0.5 inch H₂O when tested in
accordance with ASHRAE standard 193
• AHRI certified; ETL listed
SS-GARUF
• Rigid SmartFrame
• Horizontal or vertical
configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain
pan with secondary drain connections
• Screw-less sides and back helps to reduce
condensation when installed in humid locations
• Foil-faced insulation covers the internal
casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access
• Field Installed 3 kW - 25 kW electric heater
kits available
* Complete warranty details available from your local dealer or at www.goodmanmfg.com. To receive the 10-Year Parts Limited Warranty,
online registration must be completed within 60 days of installation. Online registration is not required in California or Québec.
www.goodmanmfg.com
ARUF Series
Multi-Position,
Multi-speed Air Handler
with PSC Motor
Contents
Nomenclature ....................................... 2
Product Specifications .......................... 3
Heater Kit Nomenclature ...................... 3
Dimensions ........................................... 4
Airflow Data .......................................... 5
Heat Kit Data ......................................... 6
Wiring Diagrams ................................. 13
Accessories ......................................... 15
cabinet
™
1½ to 5 Tons
1/18
Supersedes 7/17
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Goodman ARUF Series
Summary of Contents for Goodman ARUF Series
-
Page 1: Table Of Contents
ARUF Series Multi-Position, Multi-speed Air Handler with PSC Motor 1½ to 5 Tons Contents Nomenclature ........2 Product Specifications ......3 Heater Kit Nomenclature ...... 3 Dimensions ........... 4 Airflow Data .......... 5 Heat Kit Data ......... 6 Wiring Diagrams ......... 13 Accessories ......... -
Page 2: Nomenclature
Nomenclature 11,12 Brand Engineering * Single-‐piece Major/ M inor R evisions Air H andler * N ot u sed f or i nventory m anagement Unit A pplication Refrigerant ... -
Page 3: Product Specifications
Product Specifications ARUF ARUF ARUF ARUF ARUF ARUF ARUF ARUF ARUF ARUF ARUF 25B14* 29B14* 31B14* 37C14* 43C14* 49C14* 37D14* 43D14* 47D14* 49D14* 61D14* Nominal Ratings Cooling (Btu/h) 24,000 25,000 30,000 36,000 42,000 48,000 36,000 42,000 43,000 48,000 60,000 Piston Size 0.051 0.057 0.065... -
Page 4: Dimensions
Dimensions 4 1/2" (11.43 cm) 7 3/16" (18.26 cm) 6 1/8" (15.56 cm) 4 5/16" (4.31 cm) " (55.88 cm) 2 1/8" (5.40 cm) 9 1/4" (23.50 cm) 11 5/16" (28.73 cm) 7 1/2" (19.05 cm) 5 1/8" (13.02 cm) 1 5/8"... -
Page 5: Airflow Data
Airflow Data Static Pressure (in w.c) Airflow (CFM) Motor Model Speed ARUF25B14 High 1255 1225 1130 1090 ARUF29B14 High 1255 1225 1130 1090 ARUF31B14 High 1235 1185 1130 1060 1120 1085 1040 1000 ARUF37C14 1425 1385 1345 1285 1220 1145 1060 High 1625... -
Page 6: Heat Kit Data
Heat Kit Data Circuit 1 Circuit 2 Single-Point Kit Heater Kit Model Amps MCA¹ MOP² Amps MCA¹ MOP² MCA¹ MOP² ARUF25B14AC 2.2/2.2 15/15 HKSX03XC - 208 V 10.8 HKSX05XC - 208 V 17.3 HKSX06XC - 208 V No Breaker 21.7 HKSX08XC - 208 V 28.9 HKSX10XC - 208 V... - Page 7 Heat Kit Data (cont.) Circuit 1 Circuit 2 Single-Point Kit Heater Kit Model Amps MCA¹ MOP² Amps MCA¹ MOP² MCA¹ MOP² HKSX03XC - 240 V 12.5 HKSX05XC - 240 V HKSX06XC - 240 V No Breaker HKSX08XC - 240 V 33.3 HKSX10XC - 240 V 40.0...
- Page 8 Heat Kit Data (cont.) Circuit 1 Circuit 2 Single-Point Kit Heater Kit Model Amps MCA¹ MOP² Amps MCA¹ MOP² MCA¹ MOP² HKSC05XC - 208 V 17.3 HKSC08XC - 208 V 28.9 HKSC10XC - 208 V 34.7 HKSC15XA - 208 V Breaker 34.7 17.3...
- Page 9 Heat Kit Data (cont.) Circuit 1 Circuit 2 Single-Point Kit Heater Kit Model Amps MCA¹ MOP² Amps MCA¹ MOP² MCA¹ MOP² HKSC05XC - 240 V HKSC08XC - 240 V 33.3 HKSC10XC - 240 V HKSC15XB - 240 V Breaker HKSC19CB - 240 V HKSC15XF - 240 V ^ 34.6 HKSC20XF - 240 V ^...
- Page 10 Heat Kit Data (cont.) Circuit 1 Circuit 2 Single-Point Kit Heater Kit Model Amps MCA¹ MOP² Amps MCA¹ MOP² MCA¹ MOP² HKSC05XC - 208 V 17.3 HKSC08XC - 208 V 28.9 40.5 HKSC10XC - 208 V 34.7 HKSC15XA - 208 V Breaker 34.7 17.3...
- Page 11 Heat Kit Data (cont.) Circuit 1 Circuit 2 Single-Point Kit Heater Kit Model Amps MCA¹ MOP² Amps MCA¹ MOP² MCA¹ MOP² ARUF49D14AC 15/15 HKSX03XC - 208 V 10.8 HKSX05XC - 208 V 17.3 HKSX06XC - 208 V No Breaker 21.7 HKSX08XC - 208 V 28.9 40.5...
- Page 12 Heat Kit Data (cont.) Circuit 1 Circuit 2 Single-Point Kit Heater Kit Model Amps MCA¹ MOP² Amps MCA¹ MOP² MCA¹ MOP² HKSX03XC - 240 V 12.5 HKSX05XC - 240 V HKSX06XC - 240 V No Breaker HKSX08XC - 240 V 33.3 HKSX10XC - 240 V HKSC05XC - 240 V...
-
Page 13: Wiring Diagrams
Wiring Diagram – Air Handler SS-GARUF www.goodmanmfg.com... - Page 14 Wiring Diagram – Three-Phase Heater Kit www.goodmanmfg.com SS-GARUF...
-
Page 15: Accessories
Accessories Expansion Valve Kits for Air Conditioning and Heat Pump Applications Tonnage: Description Application Refrigerant Number Outdoor Unit TX2N4A Non-bleed Valve AC or HP R-410A 1½ - 2 Ton TX3N4 Non-bleed Valve AC or HP R-410A 2½ - 3 Ton TX5N4 Non-bleed Valve AC or HP... - Page 16 Notes Goodman Manufacturing Company, L.P., reserves the right to discontinue, or change at any time, specifications or designs without notice or without incurring obligations. © 2016 Goodman Manufacturing Company, L.P. • Houston, Texas • Printed in the USA. www.goodmanmfg.com SS-GARUF...
