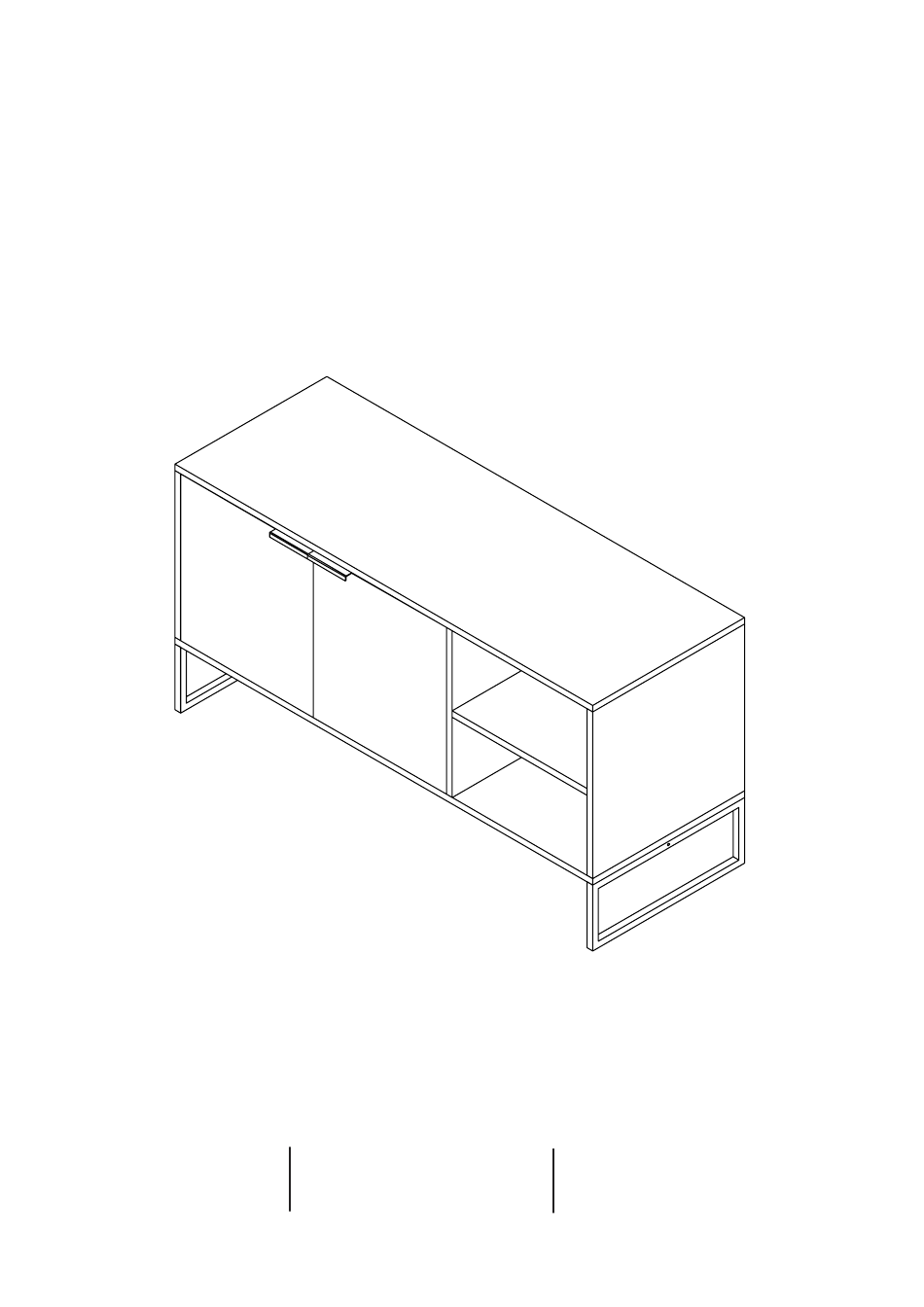

- Page 1 Item No.: H0044 Contact Us: service@anmytek.com Stockholm Media Console TV Stand with Doors ASSEMBLY AND CARE GUIDE 1 HOUR 2 PEOPLE 2 x 1 m ASSEMBLY TIME REQUIRED FOR ASSEMBLY FLOOR SPACE REQUIRED Contact Us: service@anmytek.com...
- Page 2 Item No.: H0044 Contact Us: service@anmytek.com SAFETY PRECAUTIONS PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND USING THE PRODUCT. Please check that all parts are present before you start the assembly of your furniture. A Philips head screwdriver (not included) is required for the assembled of thisproduct.
- Page 3 Item No.: H0044 Contact Us: service@anmytek.com ASSEMBLY DIAGRAM ⑧ ① ⑥ ② ③ ⑦ ⑩ ④ ⑥ ⑪ ⑨ ⑤ ⑦ ⑫ ⑬ ⑫ AFTER SALES SUPPORT If you have any general enquiries or require spare parts for this product, please...
- Page 4 Item No.: H0044 Contact Us: service@anmytek.com 14 PCS Cam Bolt Cam Lock 14 PCS Wooden Dowel 20 PCS Screw 6 PCS O 3.5x45mm Handle 2 PCS Screw 6 PCS O 3x10mm Screw 3 PCS O 3.5x35mm Cabinet Swing Hinge 4 PCS...
- Page 5 Item No.: H0044 Contact Us: service@anmytek.com ASSEMBLY STEPS STEP 1. ⑧ ⑩ ⑪ Attach the magnetic door hinge (K) to the top panel (8) using 2 x screws (M). Attach 2 x metal sheets (L), 2 x door handles (E) to panels (10), (11) using 6 x screws (F) with a screwdriver.
- Page 6 Item No.: H0044 Contact Us: service@anmytek.com ASSEMBLY STEPS STEP 3. ⑥ ① ⑦ ⑤ Slide back side panels (6), (7) into grooves. STEP 4. ⑧ ① ⑤ Attach the top panel (8) to assembled unit using 6 x wooden dowels (C), 6 x cam bolts (A), 6 x cam locks (B).
- Page 7 Item No.: H0044 Contact Us: service@anmytek.com ASSEMBLY STEPS STEP 5. ⑦ ⑤ ⑥ ① Put the upside down to slide back side panels (6), (7) into position. STEP 6. ⑨ ⑤ ⑪ ① ⑩ Attach the door panel (10), (11) to assembled unit using 4 x cabinet swing hinges (H).
- Page 8 Item No.: H0044 Contact Us: service@anmytek.com ASSEMBLY STEPS ⑫ STEP 7. ⑫ ⑬ Fix 2 x metal legs (12) to metal part (13) using 2 x bolts (I) with an Allen key (I). Attach the assembled metal leg to the cabinet using 4 x screws (N), 3 x screws (G).
