Vector 40-10 0260 Manual

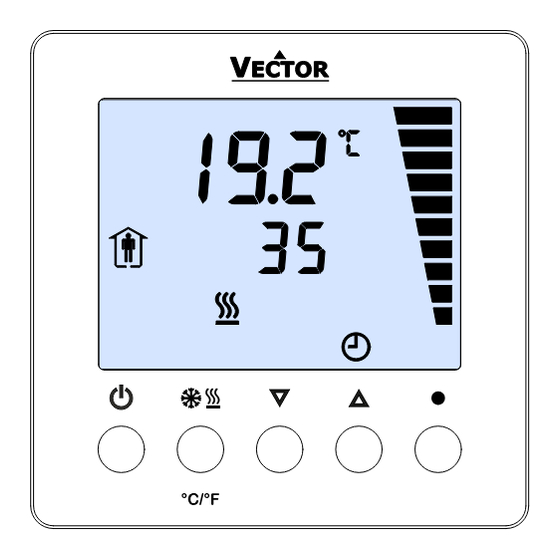

TCI-W13, TCI-W23 Series Wall Mounted Universal Controller
Features
• Universal PID and/or binary control for any analog
input/output signal and range.
• Multiple auxiliary functions: heat-cool auto changeover,
automatic enable, setpoint compensation.
• Differential, averaging, min and max functions
• Cascading of control loops (-W23 type).
• Alarm monitoring of low and high limits on all inputs.
• Programmable reaction in case of alarm.
• Feedback function for inputs and set points.
• Functions for dehumidifying, set point shift, cascade
control.
• Password protected programmable user and control
parameters.
• Blue backlight.
TCI-W23 also includes
• Power Cap protected real-time clock with 48hr power
backup.
• Clock with up to 8 switching events
• 7-day programmable schedules, with options including
change of setpoints and direct position of manual outputs.
Applications
• Fan coil units
• Heat exchangers
• Zoning
General
• TCI-W13: 1 independent control loop, 1 internal temperature sensor, 1 universal input (analog/binary/temp),
1 binary/PWM output, 2 analog outputs
• TCI-W23: 2 independent control loops, 8 time schedules, 1 internal temperature sensor, 1 universal input,
1 passive input, 1 binary/PWM output, 2 analog outputs
• Internal temperature sensor standard. Add replaceable humidity element as required: AES3-HT-A2 (2%), AES3-
HT-A3 (3%), or AES3-HT-A5 (5%)
• Flexible application configuration is made with a parameter-setting routine using the standard operation terminal.
Product Name
- W
T C I 2
Types and Ordering
Product
Product No.
Name
TCI-W13 40-10 0259
TCI-W13-H 40-10 0260
TCI-W23 40-10 0263
TCI-W23-H 40-10 0264
AES3-HT-A2 40-50 0102
AES3-HT-A3 40-50 0103
AES3-HT-A5 40-50 0104
Temperature sensors: Use Vector Controls NTC sensors to achieve maximum accuracy:SDB-Tn10-20 (duct), SRA-Tn10
(room), SDB-Tn10-20 + AMI-S10 as immersion sensor.
Actuators: Choose modulating actuators with an input signal type of 0-10 V DC or 4-20 mA (Min. and max. signal
limitations may be set with parameters.3-pointpoint actuators with constant running time are recommended.
Binary auxiliary devices (e.g. pumps, fans, on/off valves, humidifiers, etc): Do not directly connect devices that exceed
specified limits in technical specifications – observe startup current on inductive loads.
Doc: 70-00-0365C, V2.0, 20220523
Subject to alteration
• VAV
• Air handlers
• Fan, Pump control
-
3 U
Housing
In/Outputs:
Control loops:
Mounting:
Series:
Temperature Humidity
Loop Sensor Sensor
(internal) (internal)
1
1
2
© Vector Controls GmbH, Switzerland
TCI-W13, TCI-W23 Universal Controller
• Humidifiers
• Dehumidifiers
• Ventilation
Blank = square housing
See table below
1 = 1 control loop, 2 = 2 control loops
W = Wall mounted
TCI
Binary
UI TI
Output
0
0
1
1 1
0
1
1
1
1
1
• Radiant heating
• Radiant cooling
• Pressurization
Time
Analog
Schedules
Output
0
rH Sensor 3% acc.
2
Time schedules
8
rH Sensor 3% acc.
rH Sensor 2% acc.
rH Sensor 3% acc.
rH Sensor 5% acc.
O
VERVIEW
TCI-W13
TCI-W23
Option
Standard
Page 1-22
