Vector MZ3-V11 Manual

MZ3-V11
Controller/positioner for comfort ventilation
Function
• Positioner and controller for comfort ventilation with touch panel
• Design according to Feller EDIZIOdue®
• Manual operation with up to 4 Levels, OFF, minimum air, 1st Level, 2nd
Level, maximum air
• AUTO level mode: The controller activates the ventilation level based on
controls curve. The controls curve may be adjusted
• AUTO Continuous mode: The controller adjusts the ventilation level
gradually between adjustable minimum and maximum according to
sensor value
• One 0...10 VDC input for connection of a CO2 or air quality sensor
• One 0...10 VDC controls output to control the ventilation system
• Automatic reset of the maximum air level (standard: level 0 after 120
min.)
• Password protected controls settings
• Copy of settings with accessory (AEC-PM2)
Applications
This device is designed to control ventilation systems for comfort applications. For example, for well insulated residential
areas which are required to be ventilated or for controlling dampers, valve drives, blinds or windows, etc.
General description
The MZ3-V11 is a microprocessor-controlled precision positioner / proportional controller with touch panel. Through user
and engineering parameters the positioner may be configured to work for most of the standard ventilation applications.
The device is pre-configured according to this documentation. Settings such as switching levels of the control curve and
ventilation strengths for each Level may be adjusted. The configuration may be performed using the programming device
called OPA-S. This device may be used as well to visualize measuring values. Configuration can as well be updated using a
remote memory device called AEC-PM2.
Safety
DANGER! Safety note
This device serves as an actuator or proportional controller for ventilation systems. Where a control failure would
result in personal injury and/or property damage, it is the responsibility of the customer, designer and installer to
install additional equipment and devices that will prevent a control failure or warn if limits are exceeded.
The device contains electronic components and must not be disposed of with household waste.
Types and ordering
Product name Product No.
MZ3-V11-T4-W 40-100285
MZ3-V11-T4-S 40-100286
MZ3-V11-B-T4-W 40-100287
MZ3-V11-B1-T4-W 40-100288
Accessories
OPA-S 40-500006
AEC-PM2 40-500130
Doc: 70-00-0563A V2.5, 20230220
Subject to alternation

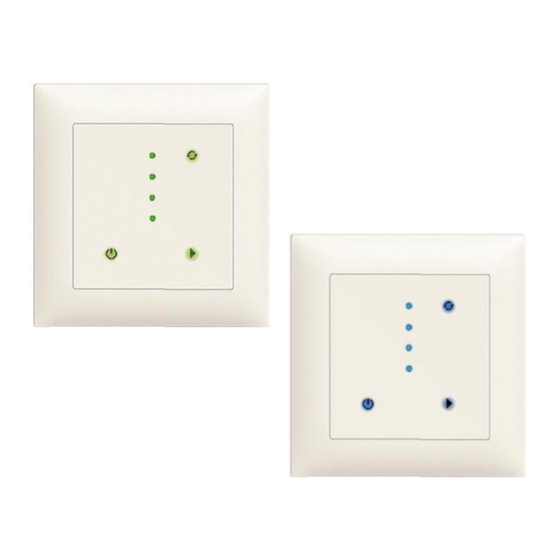

Description
- Green LED
- White frame, without lettering
- Green LED
- Black frame, without lettering
- Blue LED
- White frame
- Lettering: Minimum, Normal, Maximum, Party
- Blue LED
- White frame
- Lettering: Minimum, Level I, Level II, Maximum
Programming and display device
Memory-Device. Used for copying settings
© Vector Controls GmbH, Switzerland
www.vectorcontrols.com
MZ3-V11
Features
Compact positioner /
controller in a white Feller
EDIZIOdue® frame, with
one 0-10 VDC input and
output.
Operation as 4-Level switch
with touch panel and AUTO
function.
LCD display for surface
mounting or handheld
operation.
Stores settings of MZ3
Page 1-8
