ChargePoint CT4020-HD Replacement Instructions Manual

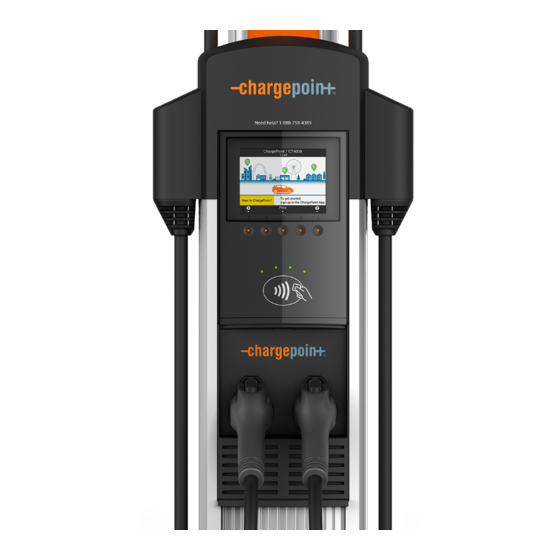

CT4000-HD (Head Assembly)
REPLACEMENT INSTRUCTIONS
Ordering Information and Shipping Specifications
Single Output (non-gateway)
Single Output (gateway)
Dual Output (non-gateway)
Dual Output (gateway)
Parts Included
GATEWAY STATIONS ONLY:
The shipping box also includes an envelope
containing a SIM card. When replacing an existing
gateway head assembly, you will need to destroy
and discard its SIM card and use this new one in the
replacement head.
*Depending on your ordering option, the head assembly may have only one charging cable.
You Will Need
• Needle Nose Pliers
• #2 Phillips screwdriver
• A ChargePoint card that has been activated on ChargePoint and set up for using
paid charging stations. Go to www.chargepoint.com to create a driver account and
order a ChargePoint card.
CT4010-HD
CT4010-HD-GW
CT4020-HD
CT4020-HD-GW
Head assembly*
A T25 L-wrench is attached to the side
of the head assembly with a security
tag
Rubber plugs
(4 - two are spares)
Keep the spare activation label. It contains
important information that you must
provide to allow the new head assembly to
be activated on ChargePoint (see page 11).
A duplicate label is attached to the head
assembly.
25 lbs 27" x 20" x 11.75"
25 lbs 27" x 20" x 11.75"
31 lbs 27" x 20" x 11.75"
31 lbs 27" x 20" x 11.75"
SIM card
Instructions
Page 1
