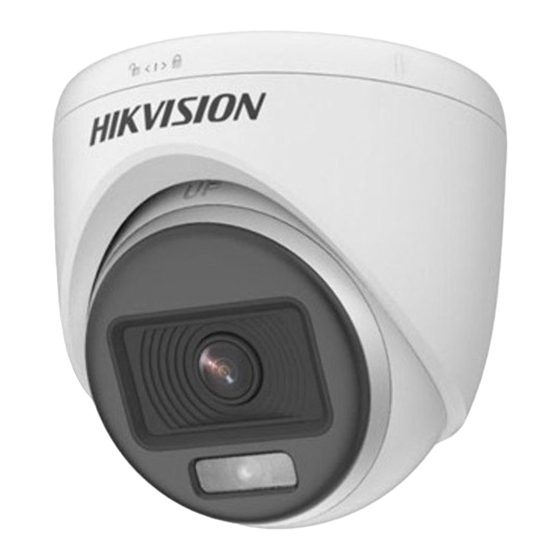

2mp colorvu dual-light audio fixed bullet & turret camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
2MP ColorVu Dual-light
Audio Fixed Bullet & Turret
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Type I Camera
Type II Camera
Type III Camera
Type IV Camera
Type V Camera
This manual may contain several technical mistakes or
printing errors, and the content is subject to change
without notice. The updates will be added to the new
version of this manual. We will readily improve or update
the products or procedures described in the manual.
Type
Camera
User Manual
Model
DS-2CE10DF0T-LFS
DS-2CE10DF0T-LPFS
DS-2CE12DF0T-LFS
DS-2CE70DF0T-LPFS
DS-2CE70DF0T-LMFS
DS-2CE72DF0T-LFS
01040020221214

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-2CE10DF0T-LPFS and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-2CE10DF0T-LPFS

Summary of Contents for HIKVISION DS-2CE10DF0T-LPFS

  • Page 1 Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual applies to the models below: Type Model DS-2CE10DF0T-LFS Type I Camera DS-2CE10DF0T-LPFS Type II Camera DS-2CE12DF0T-LFS Type III Camera...
  • Page 2 With the philosophy of “Technology for the Good”, Hikvision requests that every end user of video technology and video products shall comply with all the applicable laws and regulations, as well as ethical customs, aiming to jointly create a better community.
  • Page 3 believe that these products will also play an active role in more aspects of social life. Any abuse of video products in violation of human rights or leading to criminal activities are contrary to the original intent of technological innovation and product development. Therefore, each user shall establish an evaluation and tracking mechanism of their product application to ensure that every product is used in a proper and reasonable manner and with good...
  • Page 4 DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET...

  • Page 5: Regulatory Information

    NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER PREVAILS. Regulatory Information EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE"...
  • Page 6 In the use of the device, you must be in strict  compliance with the electrical safety regulations of the nation and region. Input voltage should meet both the SELV (Safety Extra  Low Voltage) and the Limited Power Source with 12 VDC according to the IEC60950-1 and IEC62368-1 standard.

  • Page 7: Product Features

    1 Introduction 1.1 Product Features The main features are as follows: High performance CMOS sensor  OSD menu with configurable parameters  24-hour color image  Smart light  3-axis adjustment  1.2 Overview 1.2.1 Overview of Type I Camera Switch Button Power Cord Video Cable...

  • Page 8: Installation

    1.2.4 Overview of Type IV Camera Base Set Screw Enclosure Main Body Microphone Switch Button Power Cord DC12V Video Cable Figure 1-4 Overview of Type IV Camera Note: Press and hold the switch button for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.
  • Page 9 1. Paste the drill template (supplied) to the place where you want to install the camera. 2. (Optional) For cement ceiling, drill the screw holes with a 5.5 mm drill and insert the supplied wall plugs. Screw Hole Screw Hole Screw Hole templat e Figure 2-1 Drill Template...
  • Page 10 Figure 2-4 Drill Template for Junction Box 3. (Optional) Drill the cable hole, when the cables are routed through the wall. 4. Take apart the junction box. 5. Align the screw holes of the camera with those on the junction box cover. Attach the camera to the junction box cover with three PM4 ×...
  • Page 11 3. Drill the screw holes with a 5.5 mm drill and insert the supplied wall plugs. Figure 2-9 Drill Template for Wall Mount 4. Attach the main body of the wall mount to the wall and secure it with three PA4 × 25 screws (supplied). Secure Main Body to Wall Figure 2-10 5.
  • Page 12 Figure 2-13 Lock Cover to Body 10. Repeat steps 6 to 7 of 2.1.1 Ceiling/Wall Mounting to adjust the angle and finish the installation. Installation of Type II Camera 2.2.1 Ceiling/Wall Mounting Before you start: Ceiling mounting and wall mounting are similar. Following steps take ceiling mounting as an example.
  • Page 13 2). Loosen the thumbscrew to adjust the tilt position [0° to 180°]. 3). Loosen the screw to adjust the rotation position [0° to 360°]. 7. Tighten the trim ring and screws to finish the installation. 2.2.2 Ceiling/Wall Mounting With Junction Box For installation with junction box, refers to 2.1.2 Ceiling/Wall Mounting with Junction Box.
  • Page 14 Figure 2-20 Snap Camera into Gang Box 6. Connect the power cord and video cable. 7. Power on the camera to check whether the image on the monitor is gotten from the optimum angle. If not, adjust the camera according to the figure below. Figure 2-21 3-Axis Adjustment 1).
  • Page 15 Figure 2-24 Combine Junction Box Cover and Body 8. Fix the gang box onto the junction box cover with PA4 × 10 screws that come with the junction box. 9. Connect the power cord and video cable and put the cables back into the junction box.
  • Page 16 Type II Wall Mount Steps: 1. Take apart the wall mount. Figure 2-29 Take Apart Wall Mount 2. Paste the drill template (supplied) to the place where you want to install the camera. 3. Drill the screw holes with a 5.5 mm drill and insert the supplied wall plugs.
  • Page 17 Main Body Step 2 Step 1 Cover Figure 2-33 Secure Cover to Body 9. Lock the cover to the body with one PA3 × 8 screw. Figure 2-34 Lock Cover to Body 10. Repeat steps 6 to 7 of 2.3.1 Ceiling/Wall Mounting to adjust the angle and finish the installation.
  • Page 18 Figure 2-37 Secure Base to Ceiling 6. Align the screw hole with the triangle mark to install the camera back to the base and secure it. Triangle Mark Figure 2-38 Install Camera Back 7. Connect the power cord and video cable. 8.
  • Page 19 Steps: 1. Loosen screws to take apart the junction box. 2. Paste the drill template for junction box to the place where you want to install the camera. 3. (Optional) For cement ceiling, drill the screw holes with a 5.5 mm drill and insert the supplied wall plugs. Figure 2-41 Drill Template for Junction Box 4.
  • Page 20 Figure 2-45 Finish Installation 2.4.3 Wall Mounting with Wall Mount Before you start: You need to purchase a wall mount in advance. Steps: Drill Ø10 mm screw holes in the wall where you want to install the wall mount. 2. Use four M6 expansion bolts to fix the wall mount onto the wall.
  • Page 21 Figure 2-49 Finish Installation Installation of Type V Camera 2.5.1 Ceiling/Wall Mounting Steps: 1. Paste the drill template (supplied) to the place where you want to install the camera. 2. (Optional) For cement ceiling, drill the screw holes with a 5.5 mm drill and insert the supplied wall plugs. Figure 2-50 Drill Template 3.
  • Page 22 Pan Position Rotation Position [0° to 360°] [0° to 360°] Tilt Position [0° to 75°] Figure 2-54 3-Axis Adjustment 1). Rotate the enclosure to adjust the pan position [0° to 360°]. 2). Move the main body up and down to adjust the tilt position [0°...
  • Page 23 Figure 2-57 Fit Camera 7. Turn the camera clockwise until it snaps into the gang box. Figure 2-58 Snap Camera into Gang Box 8. Secure the junction box body on the ceiling with four PA4 × 25 screws. Figure 2-59 Secure Junction Box Body 9.
  • Page 24 Figure 2-61 Fix Wall Mount 3. Use three PM4 × 10 screws to fix the gang box onto the wall mount. Figure 2-62 Fix Gang Box 4. Repeat the step 4 to 7 of 2.5.1 Ceiling/Wall Mounting to adjust the angle and finish the installation. Figure 2-63 Finish Installation Type I Wall Mount 1.
  • Page 25 4. Attach the main body of the wall mount to the wall and secure it with three PA4 × 25 screws (supplied). Secure Main Body to Wall Figure 2-66 5. (Optional) Drill the cable hole, when the cables are routed through the wall. 6.

  • Page 26: Menu Description

    3 Menu Description Please follow the steps below to call the menu. Note: The actual display may vary with your camera model. Steps: 1. Connect the camera with the TVI DVR and the monitor, as shown in figure 3-1. Figure 3-1 Connection 2.

  • Page 27: Video Format

    Figure 3-2 Main Menu Overview 5. Click the direction buttons to control the camera. 1). Click up/down direction buttons to select menu options. 2). Click Iris + to confirm the selection. 3). Click left/right direction buttons to adjust the value of the selected option. 3.1 VIDEO FORMAT You can set the video format to 2MP@25 fps, 2MP@30 fps, PAL, or NTSC.

  • Page 28: White Light

    Night to Day Threshold is used to control the sensitivity of switching the night mode to the day mode. You can set the value from 1 to 9. The larger the value is, the more sensitive the camera is.  WHITE LIGHT Under the WHITE LIGHT sub-menu, you can set the mode to OFF or AUTO.

  • Page 29: Audio Settings

    Figure 3-4 WHITE BALANCE BRIGHTNESS Brightness refers to the brightness of the image. You can set the brightness value from 1 to 9 to darken or brighten the image. The greater the value is, the brighter the image is. CONTRAST This feature enhances the difference in color and light between parts of an image.
