- Page 1 A900-PM Pole Mount Kit for Ceiling Array Microphones Shure A900-PM Pole Mount Kit user guide. Mount MXA920 microphones on standard 1.5-inch threaded NPT pole using the included VESA bracket. Version: 0.2 (2022-D)
-
Page 2: Table Of Contents
Shure Incorporated Table of Contents What's in the Box A900-PM Pole Mount Kit for Ceiling Array Microphones 3 Attaching Microphones to 1.5 in. Threaded NPT Pole A900-PM Pole Mount Kit IMPORTANT SAFETY INSTRUCTIONS Compatible Microphones Contact Customer Support 2/10... -
Page 3: What's In The Box

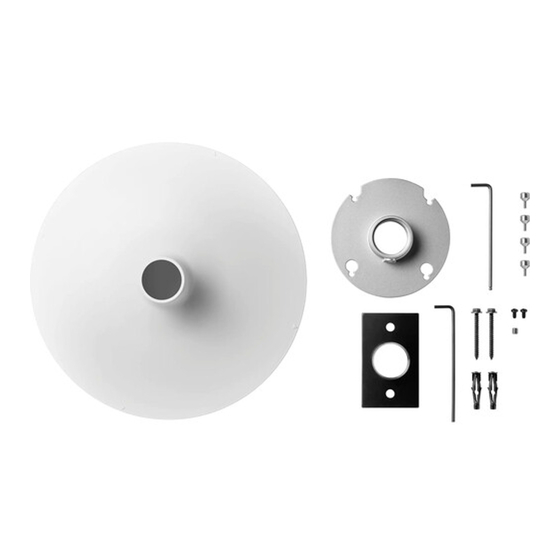

A900-PM Pole Mount Kit Shure's A900-PM Pole Mount Kit includes parts to install MXA920 series microphones on standard 1.5-inch diameter threaded NPT poles (pole not included). Install the pole on the ceiling plate, and then attach the microphone using the VESA bracket for a simple mounting solution. -
Page 4: Attaching Microphones To 1.5 In. Threaded Npt Pole
Allen key (M4) • Peerless ACC560 ceiling plate and mounting hardware Attaching Microphones to 1.5 in. Threaded NPT Pole To get started, you will need: • A900-PM kit • 1.5 in. diameter threaded NPT pole* ◦ Must include cable exit 4/10... - Page 5 Shure Incorporated ◦ Adjustable extension poles with a larger bottom diameter may not fit the round pole mount cover • Ethernet cable* *Not included Install the Peerless ceiling plate according to the included instructions. Route the Ethernet cable through the ceiling plate and the pole. Thread the pole onto the ceiling plate.
- Page 6 Shure Incorporated Partially thread the thumb screws into the microphone. Lift the microphone and align the thumb screws with the holes in the VESA bracket. Tighten the thumb screws to secure the microphone to the VESA bracket. Important: Before tightening, make sure that the thumb screws are properly seated in the VESA bracket.
- Page 7 Shure Incorporated Rotate the microphone to your preferred position. Tighten the VESA bracket's set screw with the Allen key to lock the position. Connect the Ethernet cable to the microphone. 7/10...
- Page 8 Shure Incorporated 8. Round microphones: Before attaching the pole mount cover, use the Allen key to loosen and remove the installed eyelet screws. Snap together the 2 halves of the pole mount cover around the pole. Attach the pole mount cover to the microphone.
-
Page 9: Important Safety Instructions
Shure Incorporated IMPORTANT SAFETY INSTRUCTIONS READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer’s instructions. -
Page 10: Contact Customer Support
Shure Incorporated DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replace...
