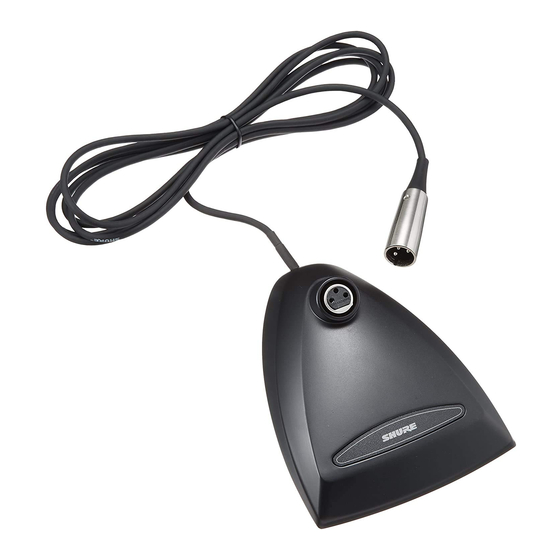

A412B -- Desktop Base
General Description
The Shure A412B microphone base allows
gooseneck microphones to be quickly mounted
in situations where permanent installation is im
practical. The angled XLR input connector main
tains a low profile, while inside the base there is
ample room for custom circuitry.
Installation
Attaching a Microphone to the Base
Insert the XLR connector on the microphone into the female XLR connector on the top of the microphone base.
Securing the Microphone Base to a Surface (Op
tional)
1. Install two No. 6 wood screws, two inches apart, on the mounting surface (see Figure 1, diagram A).
2. Place the key holes over the screw heads and push the microphone into position. Adjust the height of the
screws as necessary to secure the microphone (see Figure 1, diagram B).
1/3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shure A412B
Summary of Contents for Shure A412B
- Page 1 A412B -- Desktop Base General Description The Shure A412B microphone base allows gooseneck microphones to be quickly mounted in situations where permanent installation is im practical. The angled XLR input connector main tains a low profile, while inside the base there is ample room for custom circuitry.
- Page 2 Shure Incorporated FIGURE 1: SECURING THE A412B TO A MOUNTING SURFACE Specifications Weight Net Weight 0.68 kg (1.5 lbs) Packaged Weight 0.91 kg (2.0 lbs) FIGURE 2: DIMENSIONS...
- Page 3 Shure Incorporated FIGURE 3: REMOVING THE BACKPLATE Accessories Replacement Parts Cable (10 ft) C121 Base Plate Bumpers 80A8053A...
