- Page 1 A900-GM Gripple Suspension Mount Kit for Ceiling Array Microphones A900-GM Gripple Suspension Mount Kit user guide. Learn how to suspend Shure's MXA920 series microphones from the ceiling. Version: 0.2 (2022-D)
- Page 2 Shure Incorporated Table of Contents Compatible Microphones A900-GM Gripple Suspension Mount Kit for Ceiling Ar- ray Microphones Suspending the Microphone with Gripple Connectors 4 A900-GM Gripple Suspension Mount Kit Contact Customer Support What's in the Box IMPORTANT SAFETY INSTRUCTIONS...

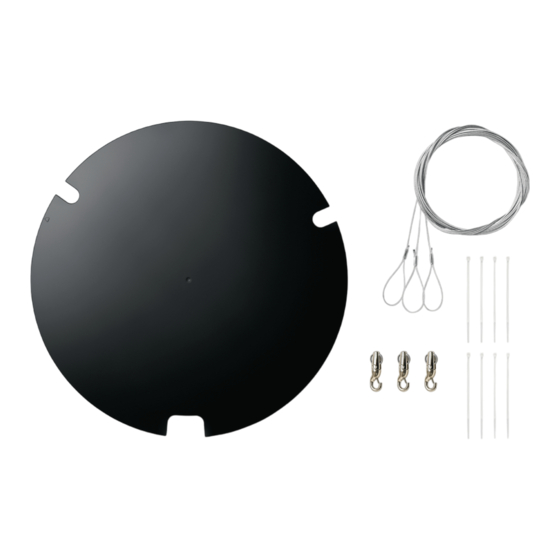

- Page 3 A900-GM Gripple Suspension Mount Kit The A900-GM Gripple Suspension Mount Kit includes accessories to suspend MXA920 series microphones from the ceiling. Using the kit, you can suspend the microphone and easily adjust the length of the suspension cables. Hardware to attach the suspension cables to the ceiling is not included.
- Page 4 Shure Incorporated Compatible Microphones This accessory works with all MXA920 series microphones. Suspending the Microphone with Gripple Connectors To get started, you will need: • A900-GM kit • Hardware to attach cables to ceiling* • Ethernet cable* * Not included Attach all Gripple side hook connectors to eyelets (12 mm diameter) on the microphone.
- Page 5 Shure Incorporated Gripple working load limit at vertical: 33 lbs (15 kg) Trim excess cable, leaving at least 1 inch (25 mm). Mount the looped end of the cables on the ceiling using appropriate hardware. Connect the Ethernet cable to the microphone. Use the cable ties to secure the Ethernet cable to the suspension cable.
- Page 6 Shure Incorporated IMPORTANT SAFETY INSTRUCTIONS READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer’s instructions.
