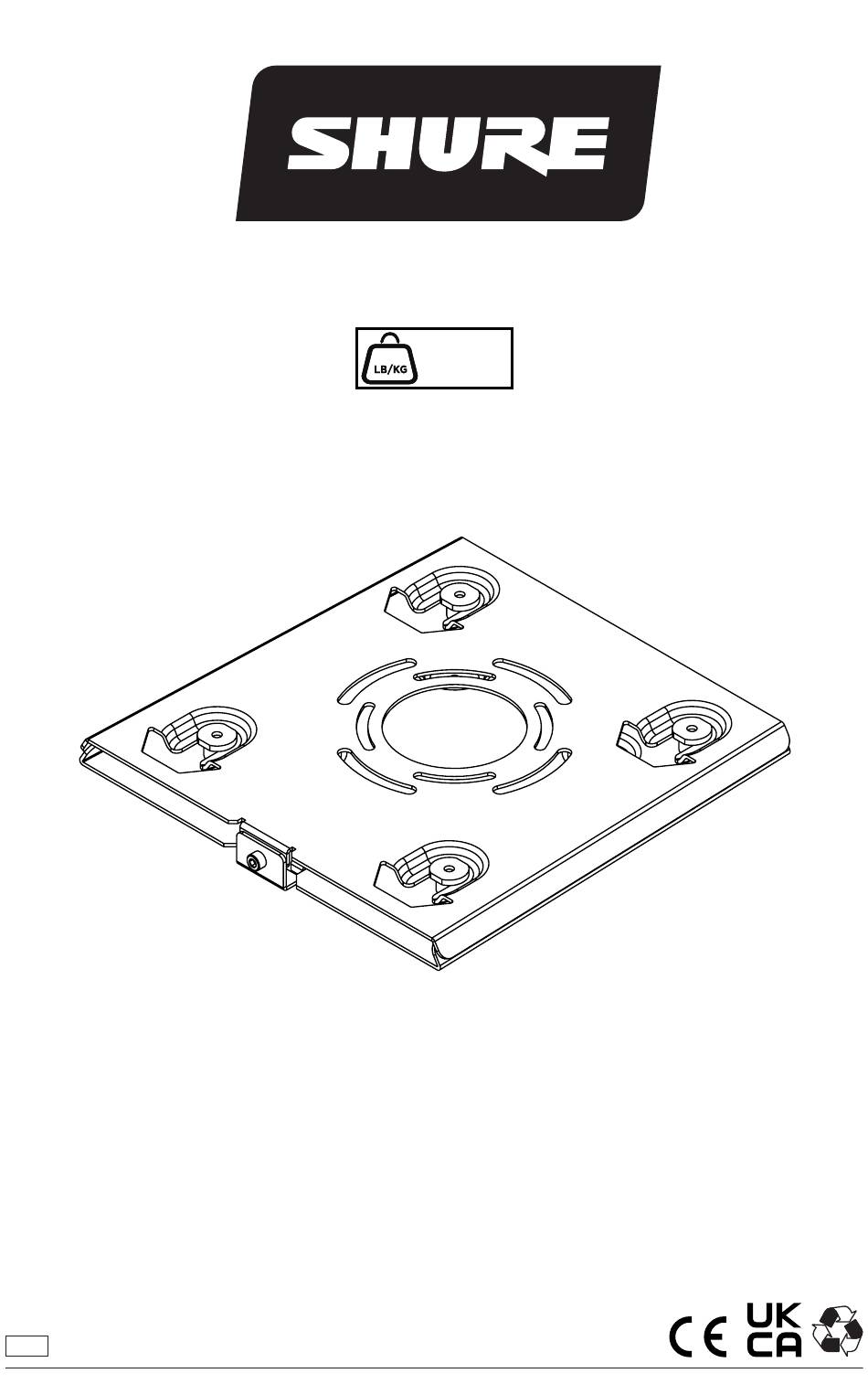

- Page 1 A900-CM 15 lb (6.8 kg) Manufactured by Peerless for Shure Incorporated. 2022-05-09 #:126-9268-1...
- Page 2 WARNING ENG - This product is designed for use only with Shure MXA920W-S, MXA920W-S-60CM, MXA901W-S, MXA901W-S-60CM, MXA902W-S, MXA902W-S-60CM, MXA920W/B/AL-R. This product is designed to be installed on wood joist/beam or solid concrete ceilings. Hardware is included for wood joist/beam and solid concrete installation.
- Page 3 Symbols ENG To properly tighten screws: Tighten until screw head makes contact, then tighten another 1/2 turn. Do not overtighten screws. Skip to step. WARNING Do not overtighten screws. Tools Needed for Assembly. +1/2 5/32" (4mm) 3/8" (10mm) 5/16" (8mm) 2022-05-09 #:126-9268-1...
-
Page 4: Table Of Contents
Parts (Before beginning, make sure you have all parts shown below). Parts List Description Part# ceiling plate 10010122 ceiling adaptor plate 10009762 M4 x 8mm screw 520-2237 #14 x 2-1/2" wood screw 5S1-015-C04 8mm anchor 590-0320 4mm allen wrench 560-1145 B ( 1 ) A ( 1 ) C ( 4 ) - Page 5 Wood joist/drywall Concrete Ceiling Wood joist Plywood RACO125 2022-05-09 #:126-9268-1...
-
Page 6: A ( 1 )
WARNING ENG - When installing Peerless ceiling mounts on a wood joist/beam covered with gypsum board (drywall), verify that the joists or beams are a minimum of 2" x 4" nominal size. Do not install over gypsum board thicker than 5/8". 1a-1 1/2"... -
Page 7: D ( 4 )
1a-3 5/32" (4mm) 2.5" Mounting hole must center (64mm) on stud. Drill mounting holes into supporting surface (2.5" (64mm) minimum depth required). 5/32" (4mm) 1a-4 Install using wood screws provided. 3/8" (10mm) D (2) Maximum 80 in. • lb (9 N.M.). 2022-05-09 #:126-9268-1... - Page 8 WARNING ENG - When installing Peerless ceiling mounts on a concrete ceiling, the ceiling must be at least 8" thick with a minimum compressive strength of 2000 psi. Never attach concrete expansion anchors to concrete covered with plaster, drywall, or other finishing material. 1b-1 Mark mounting holes.
- Page 9 1b-3 Insert anchor flush to concrete. E (4) 2b-4 1b-4 Install using concrete anchors and wood screws provided. 3/8" Maximum 80 in-lb (9 Nm). (10mm) D (4) 2022-05-09 #:126-9268-1...
- Page 10 WARNING ENG - When installing Peerless ceiling mounts on a wood joist/beam covered with plywood, verify that the wood joist/beam are a minimum of 2" x 4" nominal size and plywood is a minimum Grade BC, 1/2" (13mm) thick. Ply- wood may be covered by gypsum board (drywall) up to 5/8"...
- Page 11 1c-3 5/32" (4mm) 2.5" Mounting hole must center (64mm) on stud. Drill mounting holes into supporting surface (2.5" (64mm) minimum depth required). 5/32" (4mm) 1c-4 Install using wood screws provided. Maximum 80 in-lb (9 Nm). 3/8" (10mm) D (2) 2022-05-09 #:126-9268-1...
- Page 12 WARNING ENG - When installing Peerless ceiling mounts on a wood joist/beam, verify that the wood joist/beams are a minimum of 2" x 4" nominal size. 1d-1 Mark mounting holes. 1d-2 5/32" (4mm) 2.5" Mounting hole must center (64mm) on stud. Drill mounting holes into supporting surface (2.5"...
- Page 13 1d-3 Install using wood screws provided. 3/8" (10mm) D (2) Maximum 80 in. • lb (9 N.M.). 2022-05-09 #:126-9268-1...
- Page 14 WARNING ENG - When installing Peerless ceiling mounts on a wood joist/beam, verify that the joists/beams are a minimum of 2" x 4" nominal size. Do not install over gypsum board thicker than 5/8". 1e-1 1/2" (13mm) 1e-2 1e-3 Mark mounting holes on stud center lines.
- Page 15 1e-4 WARNING ENG - Length of wood screw must be at least #10 x 1-1/4" plus the thickness of the drywall. RACO125 and hardware not supplied by Peerless-AV. 1e-5 20 lb (9 kg) RACO125 and hardware not supplied by Peerless-AV. 2022-05-09 #:126-9268-1...
- Page 16 ENG This page intentionally left blank. 2022-05-09 #:126-9268-1...
- Page 17 2a-1 2b-1 2022-05-09 #:126-9268-1...
-
Page 18: B ( 1 )
2a-1 2a-2 Position top mounting posts to ceiling plate first. Then position bottom mounting posts and slide forward. Tighten. 2022-05-09 #:126-9268-1... - Page 19 2b-1 2b-2 Position top mounting posts to ceiling plate first. Then position bottom mounting posts and slide forward. Tighten. 2022-05-09 #:126-9268-1...
- Page 20 保证 보증서 www.peerless-av.com/warranty Shure Incorporated declares that this product with CE Marking has been determined to be in compliance with European Union requirements. The full text of the EU declaration of conformity is available at the following site: https://www.shure.com/en-EU/support/declarations-of-conformity. Shure Incorporated declares that this product with UKCA Marking has been determined to be in compliance with UK requirements.
