PI M-235 User Manual

MP106E

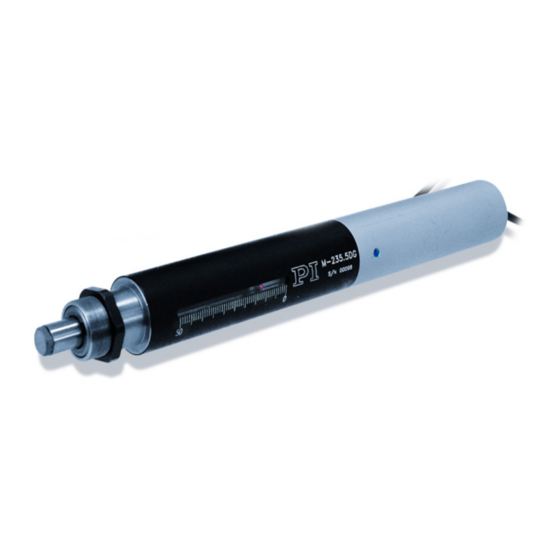

M-235 Linear Actuators
User Manual
Version: 1.2 Date: 31.08.2020
This document describes the following
high-load precision linear actuators with
recirculating ball screws:

M-235.2DD:
Travel Range 20 mm, DC Direct Drive

M-235.2DG:
Travel Range 20 mm, DC Gear Motor

M-235.5DD:
Travel Range 50 mm, DC Direct Drive

M-235.5DG:
Travel Range 50 mm, DC Gear Motor
