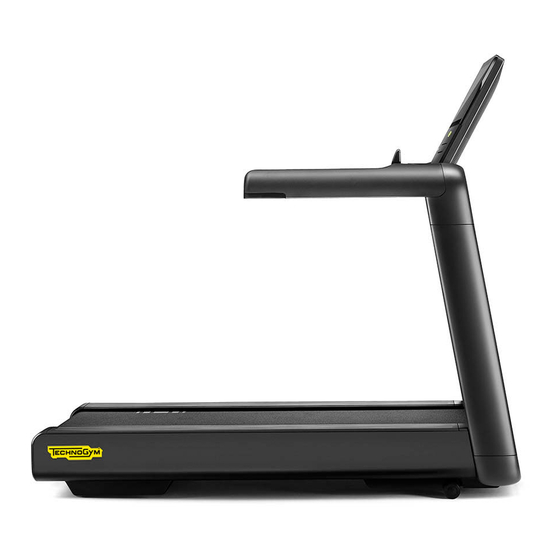

Technogym RUN EXCITE LIVE 500 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

RUN EXCITE
LIVE
®
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RUN EXCITE LIVE 500 and is the answer not in the manual?

Questions and answers

Related Manuals for Technogym RUN EXCITE LIVE 500

Summary of Contents for Technogym RUN EXCITE LIVE 500

  • Page 1 RUN EXCITE LIVE ® User Manual...

  • Page 2: Table Of Contents

    Contents Contents ..............................2 Moving the product ........................20 Important safety instructions ....................3 Levelling the product ........................21 Personal safety ...........................4 Electrical connection ........................22 Manufacturer and product identification................5 Other connections ........................24 Product description ........................6 Routine maintenance ........................25 Using the product ..........................9 Periodic maintenance .........................27 Using the heart rate monitor ....................11 Centring the treadmill belt .......................28...

  • Page 3: Important Safety Instructions

    Please read all instructions before using the product. These instructions were Do not use any accessories other than those recommended by Technogym. written to ensure the safety of the user and to protect the product. Never turn on the product if it has a damaged cable or plug, if it is not working When using an electrical appliance, basic precautions should be always correctly, if it has been knocked over or damaged, or if it has fallen in water.

  • Page 4: Personal Safety

    Tie long hair back. Keep garments or towels away from moving parts. Technogym is not responsible for any harm due to any failures or damage caused by unauthorised maintenance, misuse, accident, negligence, improper When using the product, other people must remain at a safe distance.

  • Page 5: Manufacturer And Product Identification

    The values stated in the illustration are purely indicative; refer to the label attached to the product for the correct information. A - Manufacturer’s name and address B - Place of manufacture Technogym S.p.A. via Calcinaro 2861, Cesena (FC) - Italy Made in Italy C - Description of product RUN LIVE 19...

  • Page 6: Product Description

    Display (A). Enables you to view and manage workout and entertainment information, settings and content. The tablet-style touch-screen interface lets you include content offered by the Technogym App Store. Side supports (B). They provide stable support when getting on or off the product or losing balance;...
  • Page 7 Headphones with microphone can also be used. NFC sensor / RFID reader (L). USB port (M). Technogym key slot (N). The device reads workout data from the Technogym key and saves the results of the current exercise. Water bottle holder (P).
  • Page 8 19" DISPLAY 10" DISPLAY 9000 7000 5000 Fast Track Control Hand sensor ANT+ receiver Bluetooth® 5.0 Technogym key slot NFC sensor Wireless Charger Ethernet In Motion Light Preventive Care Light Gradient RUN EXCITE LIVE...

  • Page 9: Using The Product

    Using the product Run must only be used for the purpose for which it was designed and made: walking and running simulation. Any other use is to be considered inappropriate and therefore dangerous. Step on the running surface from the rear; keep your gaze forward and place your feet on the foot rails.
  • Page 10 At 6-7 km/h (3.5-4.5 mph) you break into a slow run from a fast walk, and the stride naturally lengthens. Increase the speed gradually as you feel safer and more stable. WARNINGS Distractions from the surrounding environment could make you lose your stability and balance.

  • Page 11: Using The Heart Rate Monitor

    Using the heart rate monitor The product can monitor the heart rate in two different ways: using the device built into the central handgrip (hand sensor); it is activated when the handgrip is held over the sensors (H); using a device equipped with heart rate transmitter. Should you have any doubts about the accuracy of the readings, contact the Technical Support Service.

  • Page 12: Using The Wireless Charger

    Using the wireless charger Use Qi-certified smartphones. Position your phone correctly on the charger. Your phone might not charge correctly if it is not placed in the right position on the charging surface. Depending on the position of the wireless coil, the phone might not charge correctly.

  • Page 13: Technical Specifications

    Technical specifications 1740 mm (66") 910 mm (36") Model 9000, 7000, 5000 900, 700, 500 Maximum capacity of water bottle holder 2 kg (4 lbs) Maximum weight of user 220 kg (485 lbs) Weight of the product 162 kg (357 lbs) 160 kg (353 lbs) RUN EXCITE LIVE...
  • Page 14 Model 9000, 7000, 900, 700 5000, 500 Power supply 100-240 Vac 50/60 Hz Peak motor power 5800 W (7.8 hp) Noise level Less than 70 dB Protection rating IP 20 A-weighted sound pressure level 61.8 dBA SPL Speed with 100 Vac 0.8-20 km/h Maximum input power 1600 VA...

  • Page 15: Safety Devices

    Safety devices STOP button (A). Allows you to stop the treadmill belt without using the controls. Emergency switch (B). Consists of a cord with a clip to attach to your clothing as shown in the illustration. Ensure the clip has a good grip on the clothing, enough to trigger the emergency switch.
  • Page 16 Main switch (D). Connects and disconnects the power to the product. Circuit breaker (E). Protects the product’s electrical parts. When current is excessive, the protection device opens, preventing damage to the internal electronics. Treadmill belt marks (F). The marks on either side of the treadmill belt indicate whether or not the treadmill belt is moving.
  • Page 17 User detection User detection is a safety feature that stops the treadmill belt if it is moving with no person running or walking on it. This function is activated if the treadmill belt speed is equal to or greater than 3 km/h (approx. 2 mph). If no person is detected for 30 seconds at the speed of 3 km/h (approx.

  • Page 18: Turning The Product On And Off

    Turning the product ON and OFF Turn on the product by pressing the switch to the I position (ON). WARNING When switching the product on, the treadmill belt and gradient may move slightly. Turn off the product by pressing the main switch to the 0 position (OFF). Turn the product off, after exercising, only when it is in stand-by.

  • Page 19: Place Of Usage

    Place of usage In order to ensure that activities with the product are easy and risk-free for people, the area in which they take place must meet a number of specific requirements. In particular, when deciding where to install the product, make sure that the location satisfies the following requirements.

  • Page 20: Moving The Product

    Moving the product The product has fixed front wheels. To move the equipment, lift it up slightly, as shown in the illustration, and push it forwards or backwards. Do not lift the product too much to prevent damaging the dashboard. Due to its size and weight, more than one person is needed to move the product.

  • Page 21: Levelling The Product

    Levelling the product The product must be level for proper operation. Adjust the foot as shown in the illustration in order to level the product. Remove panel (A). Loosen the lock nut (B) with a 24 mm wrench. Turn (C) with a 16 mm wrench to screw or unscrew the foot (D) until you bring the frame to a stable position.

  • Page 22: Electrical Connection

    Electrical connection Before connecting the product to the mains power supply, ensure that the electrical system specifications comply with current regulations. Check the mains power supply specifications on the identification label. Plug the power cable into the product socket first and then into the wall socket. WARNINGS The wall socket must be located in a place where the product may be easily and safely plugged in and unplugged.
  • Page 23 The power socket must be fitted with earth . If missing, it must be installed by an electrician before plugging in the product. The product must be grounded. In the event of faulty operation or failures, the earth wire provides the electrical current a low resistance path, reducing the risk of electric shocks.

  • Page 24: Other Connections

    Other connections A - Antenna cable jack B - Ethernet jack Use an RF coaxial cable to connect the antenna with an F-type connector for the product. The wall socket for the antenna cable must be located in a position where the plug can be inserted and removed with ease.

  • Page 25: Routine Maintenance

    Contact the Technogym Technical Support Service for information about any maintenance operations not described in this manual. Emergency switch and STOP button Check the state of the emergency switch and STOP button monthly.
  • Page 26 Cleaning The product should always be kept clean and free of dust, in compliance with common health and hygiene standards. To clean the display, proceed as follows: Turn off the product by moving the switch to the “0” position. Take the product’s power plug out of the wall socket. Clean the display using a damp (not wet) cloth.

  • Page 27: Periodic Maintenance

    If the light blinks during standby, it means running surface materials are beginning to show signs of wear. If the light flashes intermittently in flash groups, contact Technogym Technical Support Service to have the materials serviced. RUN EXCITE LIVE...

  • Page 28: Centring The Treadmill Belt

    Centring the treadmill belt While running, the treadmill belt should rotate in the centre of the frame. If not in the centre or if it moves right or left, proceed to centre it. Perform the adjustment while the treadmill belt is moving. Remove the cap (A) by pressing it at one end.

  • Page 29: Troubleshooting

    Check whether there is power at the socket by plugging in another No line voltage. product that you know works. The power supply cable is damaged. Contact the Technogym Technical Support Service. The product is not turning ON The power supply cable is not plugged in Check the connection. properly.

  • Page 30: Technical Support Service

    Class: SB EN ISO 20957-1 EN 957-6 WARNING: To reduce the risk of electric shock unplug before cleaning. Massage and exercise machine: 2AD3 Item Code DFKUAQ5TAN00FF10 When you contact the Technogym Technical Support Service, you must give the following 03/20 S/N DFKUAQ020000153 information: Product model (A)

  • Page 31: Storing The Product

    Under the provisions put into effect by the European Union Member States, private citizens resident within the European Union may take used electrical and electronic equipment to authorised collection centres. If the product is used for commercial purposes, contact your reseller or the Technogym Customer Service, in the various Countries, to arrange for collection and disposal of waste from electrical and electronic equipment.
  • Page 32 RUN_EXCITE_LIVE_en_AA 0SM01162...
