5) Check the Jumpers
Ensure that the jumper settings on the SRCZCRX controller are correct. See Chapter 3,
"Intel RAID Controller SRCZCRX Technical Reference," for diagrams of the SRCZCRX
controllers with their jumpers and connectors.
6) Install the SRCZCRX controller in an available MROMB-enabled PCI slot. Press down
gently but firmly to ensure that the card is properly seated in the slot, as shown in Section
Figure 2.2, "Inserting the SRCZCRX Adapter Card in an MROMB-enabled PCI-X Slot,"
page 21. Screw the bracket into the computer chassis.
Note: See your server board documentation to detemine which PCI-X slot(s) are
MROMB enabled.

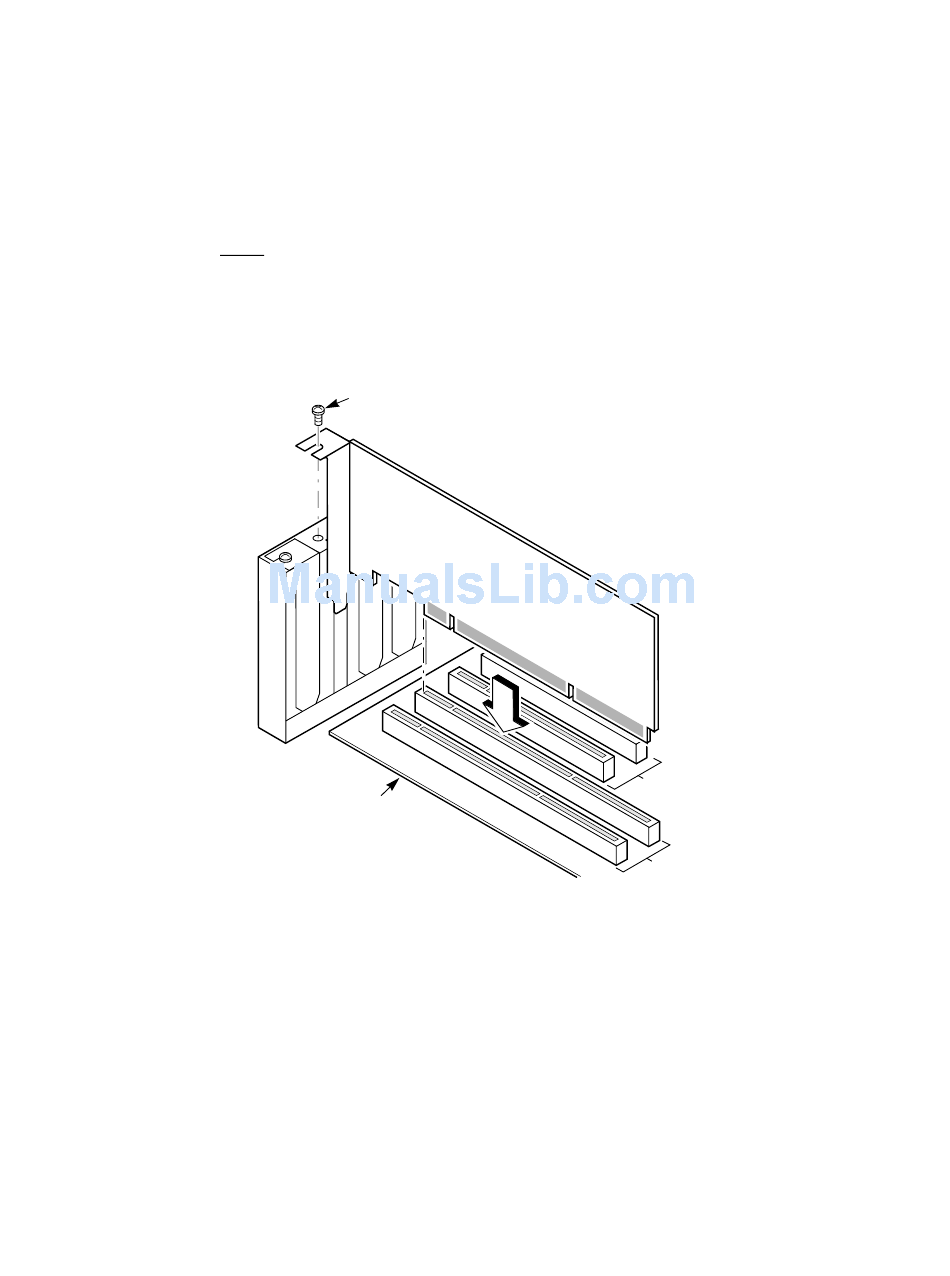

Figure 2.2 Inserting the SRCZCRX Adapter Card in an MROMB-enabled PCI-X Slot
Bracket Screw
edge of
server board
Detailed Installation
32-bit
slots
64-bit
slots
