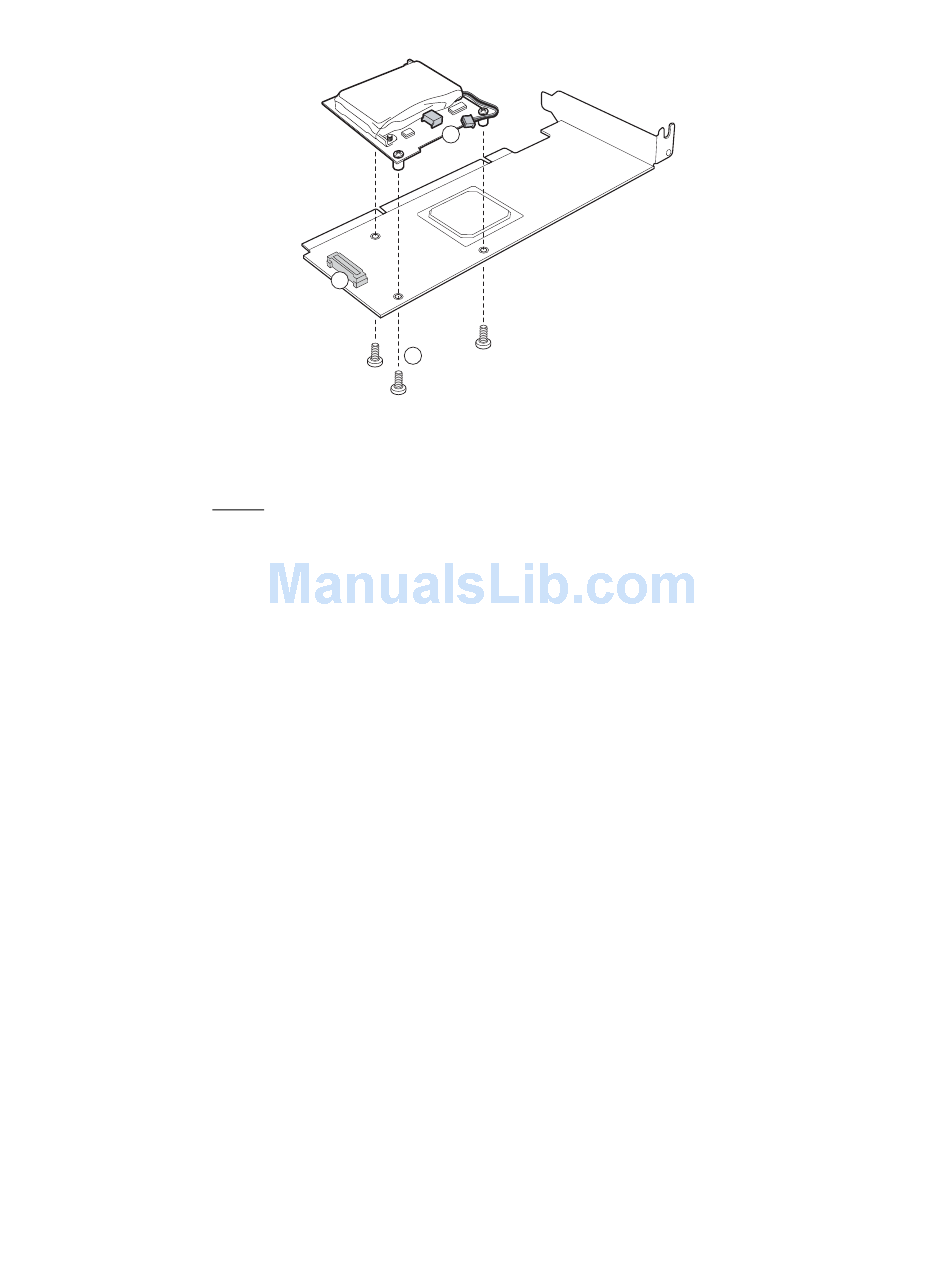

Figure 2.1Install the Battery Backup Unit
B
3) (Optional / chassis-dependent) Replace the bracket on the RAID adapter with the low-
profile bracket.
Notes: Do not exceed the torque specifications in these instructions. Exceeding the
torque specifications may damage the board, connectors, or screws and will
void the warranty.
Make sure the screwdriver is centered in the screw slot to prevent damage to
the screw and voiding the warranty.
Boards returned without a mounted bracket will not be accepted.
a. Use an EDD-safe 1/8-inch slotted screwdriver to carefully remove the two board lock
screws at the top and the bottom of the connector.
b. Use an ESD-safe #1 Phillips* screwdriver to carefully remove the two screws that
connect the bracket to the RAID controller.
c. Lift the bracket from the board, using caution not to damage the board or the
connector.
d. Place the low-profile bracket over the connector, using caution not to damage the
connector or the board. and lining up the bracket to match the screw holes on the
board and bracket.
e. Use an ESD-safe #1 Phillips torque screwdriver that is set to a maximum torque of
4.8 +/- 0.5 inch pounds to replace the two Phillips screws that were removed in step
3b.
f. Use an ESD-safe 1/8-inch slotted torque screwdriver that is set to a maximum torque
of 3.0 +/- 0.5 inch pounds to replace the two board lock screws that were removed
in step 3a.
4) Power Down the System
Turn off the computer and remove the AC power cord. Remove the system's cover. See
the system documentation for instructions.
Detailed Installation
A
C
TP00857
