Replacing, moving, or adding hard drives

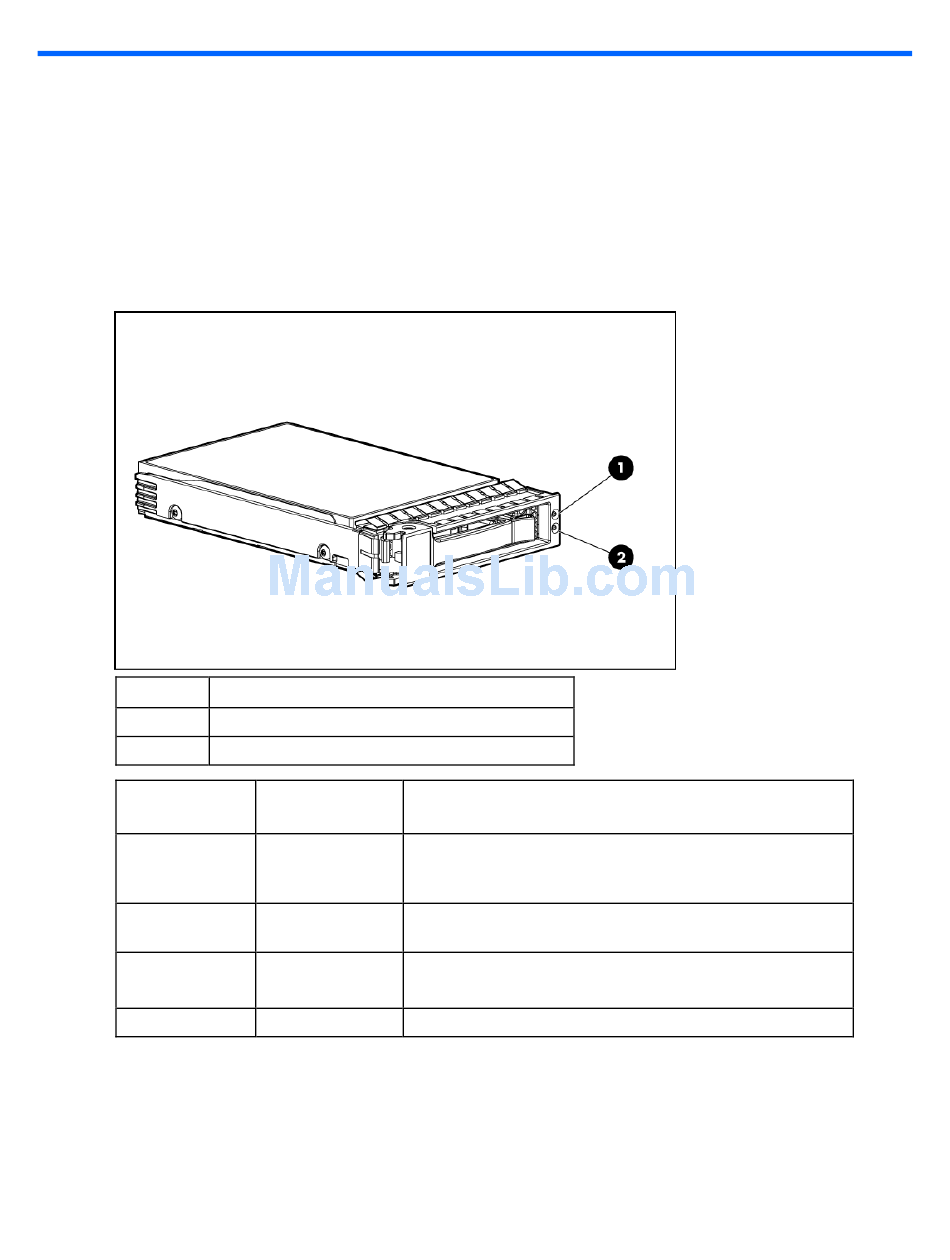

Identifying the status of a hard drive

When a drive is configured as a part of an array and connected to a powered-up controller, the
condition of the drive can be determined from the illumination pattern of the hard drive status lights (LEDs).
Item Description
1 Fault/UID LED (amber/blue)
2 Online LED (green)
Online/activity
LED (green)
On, off, or flashing Alternating amber
On, off, or flashing Steadily blue
On
On
Fault/UID LED Interpretation
(amber/blue)
The drive has failed, or a predictive failure alert has been
and blue received for this drive; it also has been selected by a
management application.
The drive is operating normally, and it has been selected by a
management application.
Amber, flashing A predictive failure alert has been received for this drive.
regularly (1 Hz)
Replace the drive as soon as possible.
Off The drive is online, but it is not active currently.
