Replacing, moving, or adding hard drives

Identifying the status of a hard drive

When a drive is configured as a part of an array and connected to a powered-up controller, the
condition of the drive can be determined from the illumination pattern of the hard drive status lights (LEDs).
Item Description

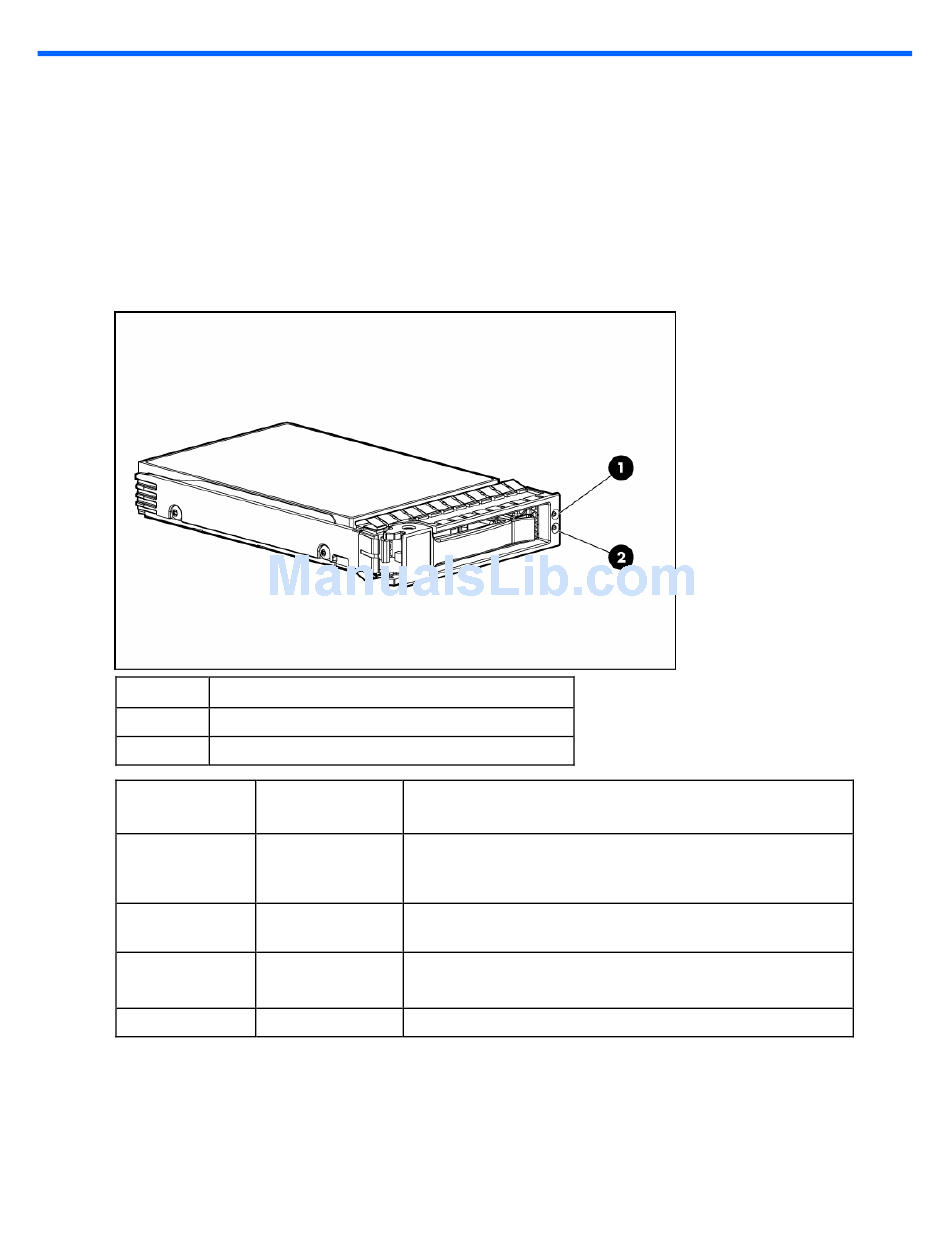

1 Fault/UID LED (amber/blue)
2 Online LED (green)
Online/activity
LED (green)
On, off, or flashing Alternating amber
On, off, or flashing Steadily blue
On
On
Fault/UID LED Interpretation
(amber/blue)
The drive has failed, or a predictive failure alert has been
and blue received for this drive; it also has been selected by a
management application.
The drive is operating normally, and it has been selected by a
management application.
Amber, flashing A predictive failure alert has been received for this drive.
regularly (1 Hz)
Replace the drive as soon as possible.
Off The drive is online, but it is not active currently.
Replacing, moving, or adding hard drives 25
