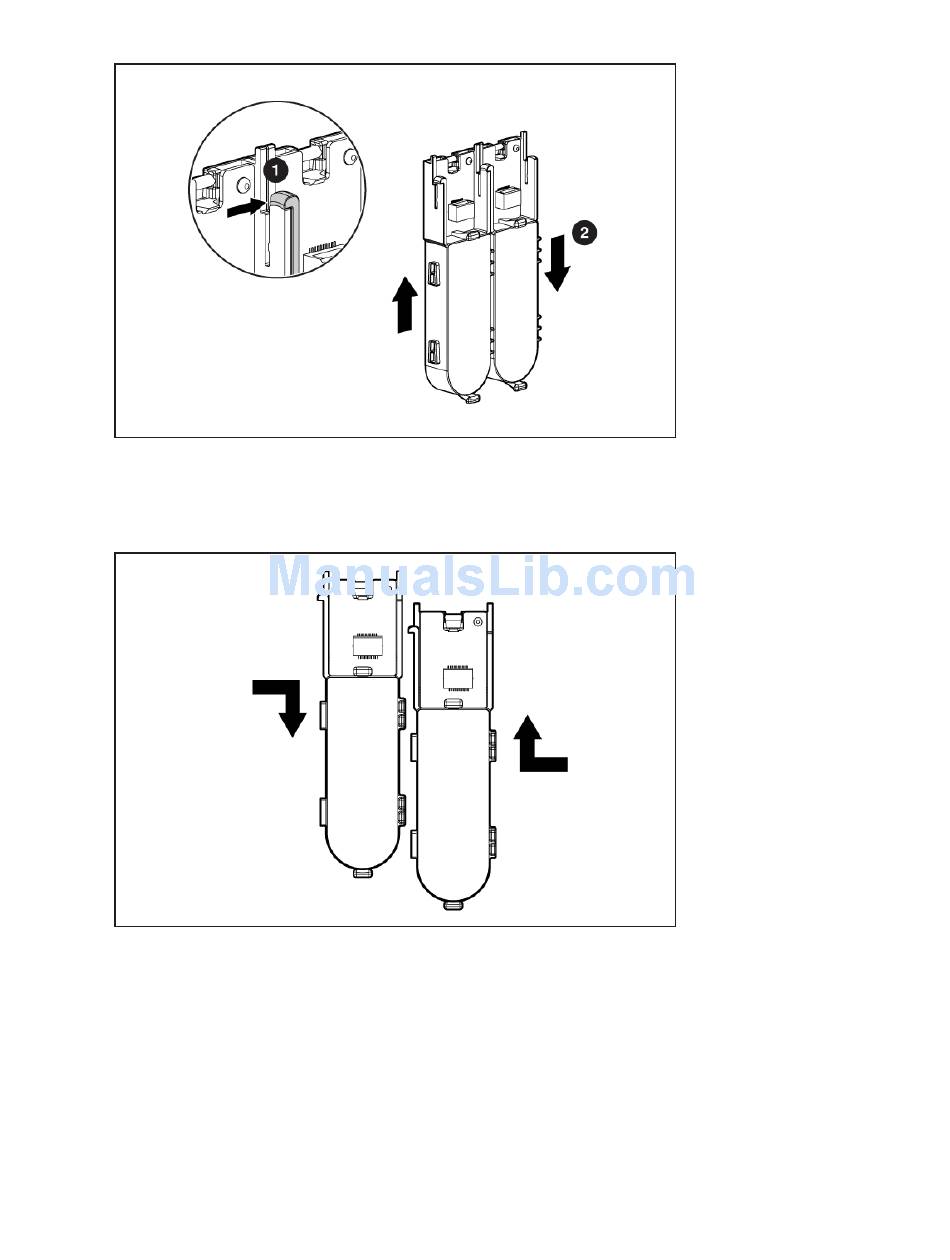

Slide the batteries apart (2).
c.
Dispose of the exhausted or faulty battery using environmentally approved procedures
8.
replacement notice" on page 51).
Position the new battery and the remaining good battery as indicated, push them together, and then
9.
slide them until they are aligned. The batteries combine into one unit.
Install the battery clip.
10.
Position the clip so that the hinges on the clip are next to the appropriate hinge pillars on the
a.
batteries.
Hold the clip at about 30 degrees to the batteries.
b.
Upgrading or replacing controller options 26
("Battery
