LED ID Color
9 Green
10 Green
Gas Pedal LED
status
Off
Blinking
On steadily
On steadily

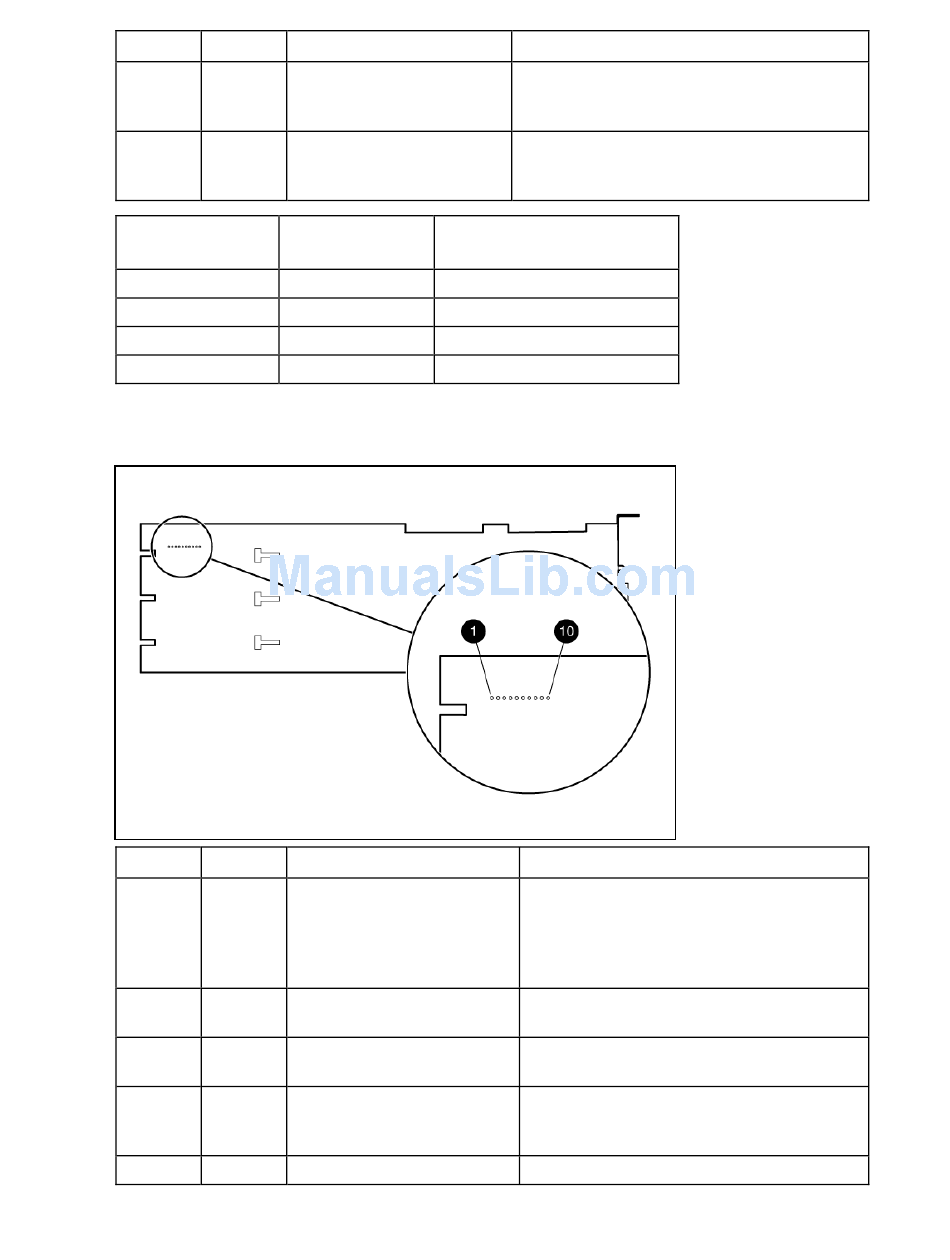

Runtime LEDs for P800 model

LED ID Color
1 Green
2 Amber
3 Amber
4 Amber
5 Green
Name
CR7: Gas Pedal
CR8: Idle Task
Idle Task LED Controller CPU activity level
status
Blinking 0–25%
Off 25–50%
Off 50–75%
On steadily 75–100%
Name
CR502: Expander Heartbeat
CR510: System Error
CR509: Diagnostics Error
CR500: Drive Failure
CR508: Activity
Comments
This LED, together with the Idle Task LED (next
item), indicates the amount of controller CPU
activity. For details, see the following table.
This LED, together with the Gas Pedal LED (previous
item), indicates the amount of controller CPU
activity. For details, see the following table.
Comments
This LED flashes every two seconds during normal
operation. If the LED glows steadily, the expander
cannot function due to an internal problem. If the
LED flashes twice per second, the expander
cannot function because the NVRAM is corrupt.
The controller ASIC has locked up and cannot
process any commands.
One of the server diagnostics utilities has detected
a controller error.
To determine which drive has failed, check the
Fault LED of each physical drive connected to the
controller.
Port 4I is active.
Diagnosing array problems 43
