- Page 1 USER MANUAL M-600 M-605 Please take time to read these instructions before starting to use the scale Version 1.1 10/17...
-
Page 2: Table Of Contents
Contents Introduction Product Specification Safety Instructions Explanation of Graphic Symbols Power Supply and Low Battery Installing Instructions` Operation: Basic Functions Operation: Advanced Functions Using the Scale with a Printer EMC Guidance and Manufacturer’s Declaration Recommended Separation Distance Error Messages Manufacturer’s Declaration of Conformity Page 2... -
Page 3: Introduction
Thank you for purchasing a Marsden professional medical scale. This is a precision Class III Weighing Instrument and considerate use will result in many years of accurate weighing. The scale has a maximum load capacity of 200kg which must not be exceeded. -
Page 4: Safety Instructions
Before putting the device into use, please read with care the information given in this user manual, which contains important instructions for proper installation, use and maintenance of the device. Marsden/the manufacturer shall not be liable for damages arising from failure to heed the following instructions: •... -
Page 5: Explanation Of Graphic Symbols
Dispose of old appliances separately from your household waste. This product must be disposed of at a communal collection point. Carefully read this operation manual before setup and commissioning, even if you are already familiar with Marsden scales. Page 5... -
Page 6: Power Supply And Low Battery
Power Supply & Low Battery The indicator uses a rechargeable battery pack, or can be powered from the mains via the AC adaptor. Make sure the battery pack is installed in the battery box of the indicator. Alternatively, plug the AC adaptor (12V 1A) into the port on the side of the indicator. -
Page 7: Installing Instructions

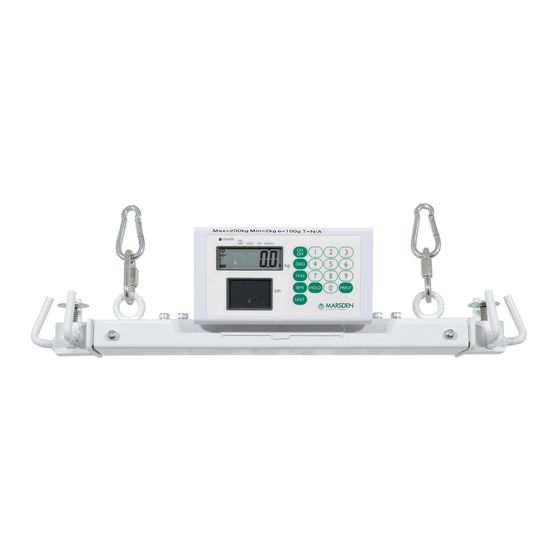

To attach the indicator to the hoist weighing attachment, first unscrew the two thumb screws from the rear of the indicator display. Mount the indicator to the front of the hoist attachment. Secure in the position shown using the two thumb screws. Your M-600/M-605 is now ready to use. Page 7... - Page 8 Attach master links of the M-600/M-605 to the spreader bar of the patient lift. Place the patient in the sling and attach the sling loops onto the hooks on both sides of the hoist weighing attachment. The design and procedure may vary depending on the different sling makers.
-
Page 9: Operation: Basic Functions
Operation: Basic Functions Switching on the Scale Press ON/OFF firmly. The scale will first test all of the display segments. The scale will now show its current software version number. The scale will now go into weighing mode and should show 0.0 on the display. Page 9... - Page 10 Switching off the Scale Press ON/OFF when the scale is turned on. The scale will now power down. Setting the Scale to Zero If for any reason the scale shows a reading other than 0.0 it can be reset to zero. Press ZERO once.
-
Page 11: Operation: Advanced Functions
Operation: Advanced Functions Hold Function Press HOLD once. Allow the patient to get on the scale. After a few seconds the scale will lock on the person’s weight. When the patient leaves the scale, the weight will remain on the display. Press HOLD again to disable the Hold function and return the scale to 0.0. - Page 12 Body Mass Index (BMI) Function In normal mode, press BMI to enter BMI mode. The display will show the last height entered and the extreme left digit will flash. Enter the height by using the numeric keys. Press ZERO to confirm the height.
- Page 13 Tare and Preset Tare Functions To enter Preset Tare setting mode, Press TARE for three seconds. When the cursor points to Pre Tare on the display press TARE once more. The display will show the last preset tare entered. The left digit on the display will flash. Enter the preset tare value by using the numeric keys, then press TARE again to confirm the value.
- Page 14 Setting the Date Press HOLD for three seconds to access the time setting mode. The time period digit that is flashing can be changed by entering the appropriate number with the numeric keys. The time period to be edited is selected by pressing HOLD. E.g.
-
Page 15: Using The Scale With A Printer
Using the Scale with a Printer An optional Marsden external printer (model TP-2100) is available for all models. When the printer is fitted, the patient’s weight, height, and BMI result can be printed. Once the person has been weighed and their BMI calculated, simply press PRINT to produce... -
Page 16: Emc Guidance And Manufacturer's Declaration
EMC Guidance and Manufacturer’s Declaration Guidance and manufacturer’s declaration – electromagnet emissions. The M-600/M-605 is intended for use in the electromagnetic environment specified below. The customer or user of this scale should ensure that it is used in such environment. - Page 17 Voltage Dips, short <5% UT (>95% dip in UT) <5% UT (95% dip in UT) Mains power quality should be interruptions and voltage for 0.5 cycle 40% UT for 0.5 cycle 40% UT that of a typical commercial or variations on power (60% dip in UT) for 5 (60% dip in UT) for 5 hospital environment.
-
Page 18: Recommended Separation Distance
B) Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Recommended separation distance between portable and mobile RF communications equipment and the M-600/M-605. This scale is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. -
Page 19: Error Messages
Error Messages Low Battery The scale’s alkaline AA type batteries are flat; please replace the batteries. Overload This indicates that the scale’s load sensor(s) have been overloaded. Reduce the loading and retry. Counting Error 1. The signal from the load cells is too high. -
Page 20: Manufacturer's Declaration Of Conformity
Manufacturer’s Declaration of Conformity This product has been manufactured in accordance with the harmonized European standards, following the provisions of the below stated directives. 93/42/EEC as amended by 2007/47/EC Medical Device Directive 2014/31/EU Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. - Page 21 Page 21...
- Page 22 Page 22...
- Page 23 Page 23...
- Page 24 Tel: 01709 364296 / 0800 169 2775 Fax: 01709 364293 E-mail: sales@marsdengroup.co.uk Manufacturing and Distribution: Unit 7, Centurion Business Park, Coggin Mill Way, Rotherham, S60 1FB Head Office: Unit 1, Genesis Business Park, Sheffield Road, Rotherham S60 1DX www.marsden-weighing.co.uk CD-IN-1252 [14074G] REV 09/2018...
