Installation - Operation - Parts

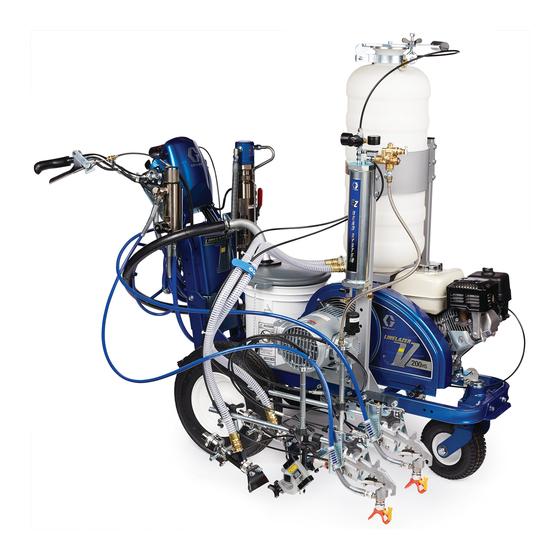

Complete Pressurized Bead System for
LineLazer 200HS/DC/MMA and LineLazer
250SPS/DC/MMA
Models:
25R268 1-Gun LL200
25R270 1-Gun LL250
25R267 2-Gun LL200
25R269 2-Gun LL250
80 psi (.55 MPa, 5.5 bar) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in the striper manual. Be familiar
with the controls and the proper usage of the equipment. Save
these instructions.
- For professional use only -
HS/MMA
SPS/MMA
HS/DC/MMA
SPS/DC/MMA
Related Manual
Bead Gun Kit
LLIV 200HS Repair
LLV 200HS/DC Repair and Parts
LLV 200MMA Operation, Repair, Parts 3A6466
250DC Repair
332230T
EN
332226
311021
3A3390
334053
