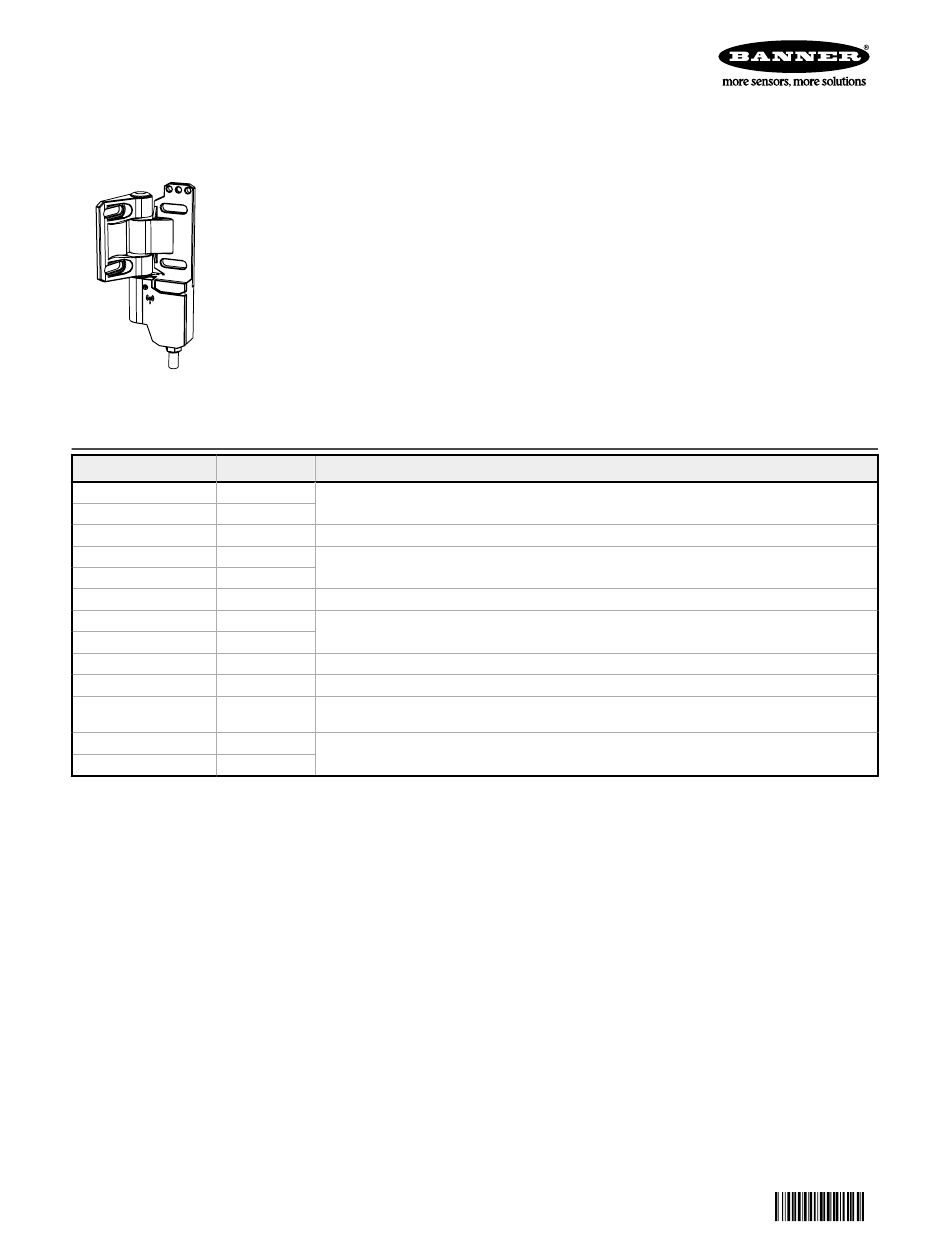

Banner SI-HGZ63FQDR Instruction Manual

SI-HG(Z)63 Hinge Wing Safety Interlock Switch
Instruction Manual
The SI-HG(Z)63 Hinge Wing Safety Interlock Switch attaches with a load-bearing hinge.
Models
Model Construction
SI-HG63FQDR Stainless Steel
SI-HGZ63FQDR Zinc Die-cast
SI-HG63F5MR-W Stainless Steel
SI-HG63FQDL Stainless Steel
SI-HGZ63FQDL Zinc Die-cast
SI-HG63F5ML-W Stainless Steel
SI-HG63FQDRR Stainless Steel
SI-HGZ63FQDRR Zinc Die-cast
SI-HG63F5MRR-W Stainless Steel
SI-HG63F5MLR-W Stainless Steel
SI-HG63F5MB-W Stainless Steel
SI-HG63A Stainless Steel
SI-HGZ63A Zinc Die-cast
A complete safety system is composed of two SI-HG(Z)63 switches per gate/guard (SI-HG63F5MB-W is two switches so only one is
needed for a complete system), cables (for QD models), and a safety monitoring device.
Original Document
129465 Rev. G
• Safety switching point is repositionable
• Switch components are protected from mechanical impact for superior performance to actuator-
activated safety switches (IP67 or IP69 rated)
• Hinge operates to a full 270° range of motion; safety switching point (guard-closed position) is
adjustable over the full 0° to 270° operating range
• Stainless steel hinge supports a load of 1800 N (180 Kg). Zinc die-cast hinge supports a load of
1200 N (120 Kg).
• When properly interfaced or used with an appropriate controller, two SI-HG(Z)63 switches on an
individual gate or guard can achieve safety category 4, per ISO 13849-1
Housing Style
Inline QD - With QD facing down, switch is mounted on right side of hinge
Inline Cable - With cable exiting down, switch is mounted on right side of hinge, IP69 protection class rating
Inline QD - With QD facing down, switch is mounted on left side of hinge
Inline Cable - With cable exiting down, switch is mounted on left side of hinge, IP69 protection class rating
Right-Angle QD - With switch body down, switch is mounted on right of hinge
Right-Angle Cable - With switch body down, switch is mounted on right side of hinge, IP69 protection class rating
Right-Angle Cable - With switch body down, switch is mounted on left side of hinge, IP69 protection class rating
Inline Cables - With cables exiting up and down, switches are mounted on both sides of hinge, IP69 protection
class rating
Blank Hinge; same mechanical as switch minus switch component
16 March 2022
129465
