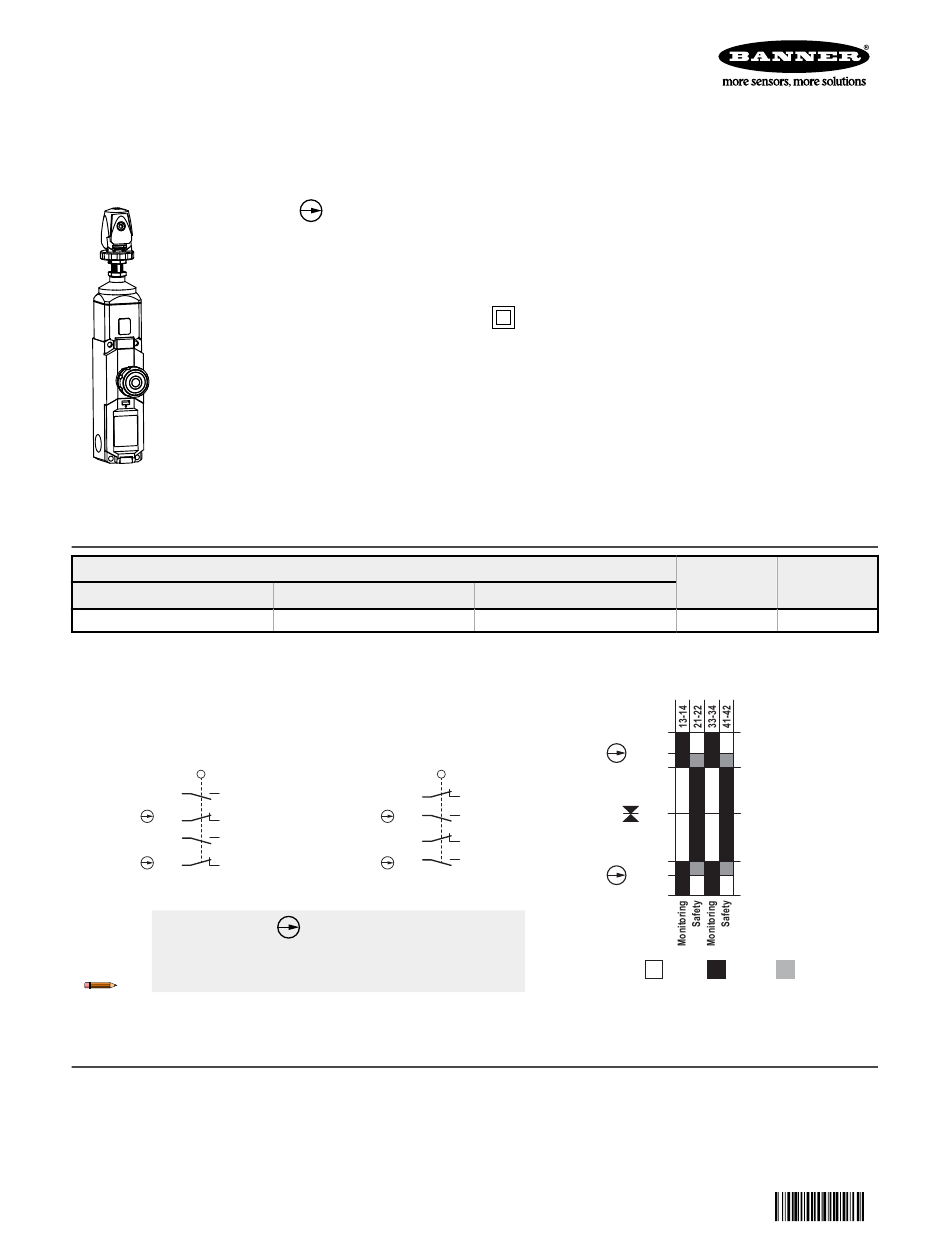

Rope Pull Emergency Stop Switches
Instruction Manual
RP-LS42F-xxLE Series 42 mm Latching Switches with Rope/Cable Actuators
Models
75 m (246.1 ft) / 300 N
RP-LS42F-75LE
Run
13
14
21
22
33
34
41
42
Note: This symbol
contact (IEC 60947-5-1) is used in the switching diagram
to identify the point in actuator travel where the normally-
closed safety contact is fully open.
Important... Read this before proceeding!
The user is responsible for satisfying all local, state, and national laws, rules, codes, and regulations relating to the use of this
product and its application. Banner Engineering Corp. has made every effort to provide complete application, installation, operation,
and maintenance instructions. Please contact a Banner Applications Engineer with any questions regarding this product.
The user is responsible for making sure that all machine operators, maintenance personnel, electricians, and supervisors are
thoroughly familiar with and understand all instructions regarding the installation, maintenance, and use of this product, and with the
machinery it controls. The user and any personnel involved with the installation and use of this product must be thoroughly familiar
Original Document
181295 Rev. B
Positive-opening safety contacts (IEC 60947-5-1), not dependent upon springs
Both safety contacts latch open when rope is pulled, broken, or if tension is reduced; requires
manual reset (IEC 60947-5-5)
Compliant with ANSI B11.19, NFPA 79, IEC/EN 60204-1 and ISO 13850 Emergency Stop
requirements
Heavy-duty thermoplastic housing (polyamide), rated IP67, suitable for demanding industrial
environments; insulated device
Innovative quick-connect design provides quick, easy rope fixing and tensioning on RP-
LS42F-..LE models
RP-LS42F-..LE models have an integrated emergency stop button
Rope spans of 25 m (82 ft), 37.5 m (125 ft), and 75 m (245 ft), depending on model
Monitoring contacts operate opposite the safety contacts, for monitoring by another device or
interfaced with EZ-LIGHT
Tension indicator window indicates proper rope tension for operation or safety contacts
latched open (the rope pull or the E-stop button is actuated)
Maximum Rope Length / Force
38 m (124.7 ft) / 175 N
RP-LS42F-38LE
Figure 1. Contact State
Pull / Break
13
21
33
41
for a positive-opening safety
4 November 2021
®
indicators
25 m (82.0 ft) / 100 N
RP-LS42F-25LE
+4.3 mm
+3.5 mm
14
22
34
42
-3.5 mm
-4.3 mm
Contacts:
Rope
E-Stop
Connection
Button
Turnbuckle
Yes
Figure 2. Switching Diagram
+5 mm
100N / 175N / 300N
Latch
0 mm
80N / 140N / 240N
Latch
-5 mm
60N / 105N / 180N
Operating point ± 0.5 mm
Actuating force ± 15%
Open
Closed
Transition
181295
