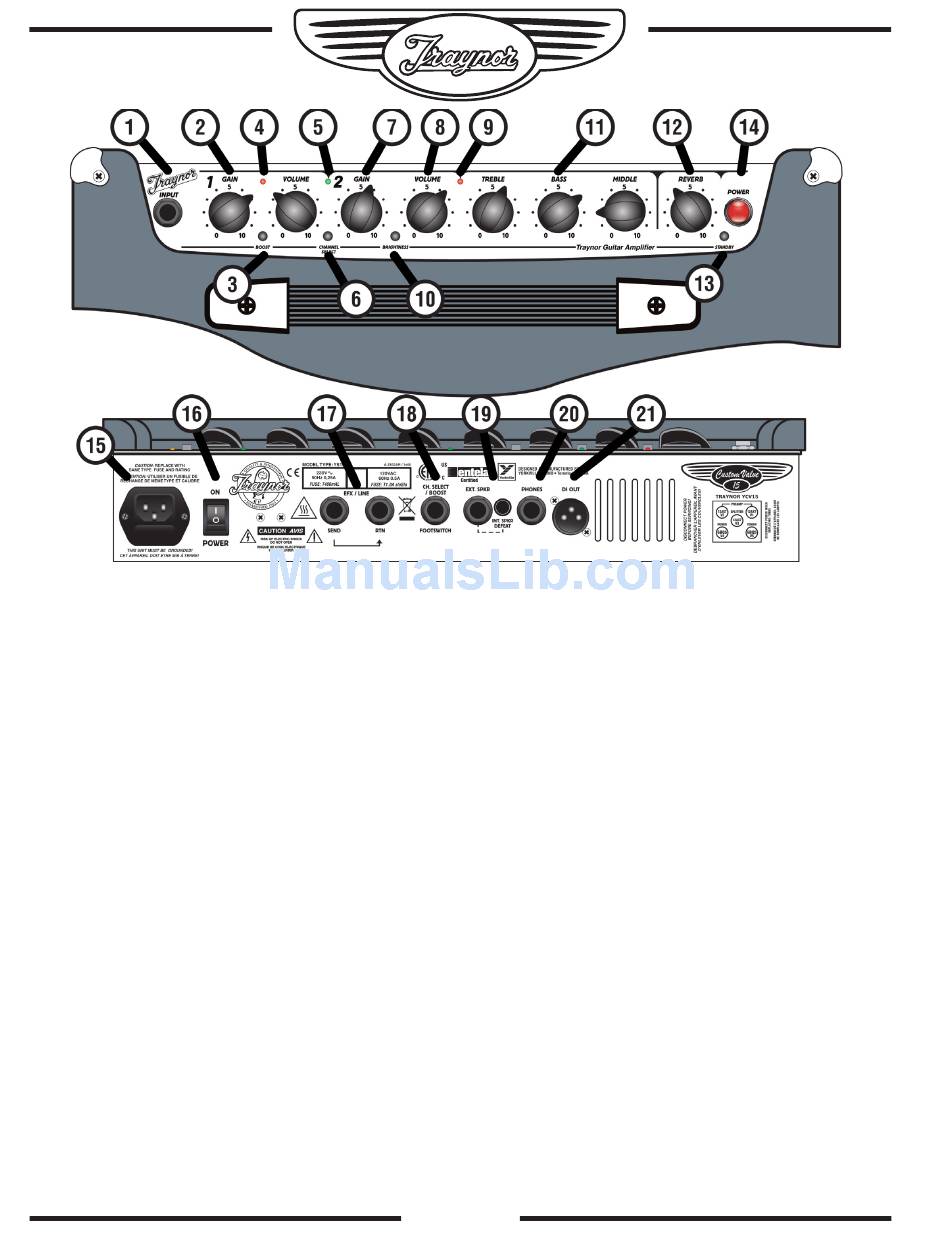

Chassis Layout
Top
1. Input jack – 1/4-inch phone jack.
2. Channel 1 Gain and Volume Controls.
3. Channel 1 Boost Switch – Activates the boost circuitry.
4. Boost LED – Illuminated Red when the boost is active.
5. Channel 1 Indicator LED – Illuminates Yellow when active.
6. Channel Select Switch – Channel 1 is optimized for lead, Channel 2 for clean
7. Channel 2 Gain Control.
8. Channel 2 Volume Control.
9. Channel 2 Indicator LED – Illuminates Green when active.
10. Channel 2 Brightness Switch – Add sparkle to your clean sound.
11. Main Tone Controls – Treble, Bass, and Middle.
12. Reverb Control – Adjusts the Accutronics® reverb level for both channels.
13. Standby Switch – Activates standby mode to keep the tubes warm while the amp is not in use.
14. Power Indicator Jewel – Illuminates Red when in Active mode, and Yellow when in Standby mode.
Rear
15. Fuse and Power Cord
16. Power Switch.
17. Send / Return (Efx/Line) jacks – 1/4-inch phone Input & Output jacks.
