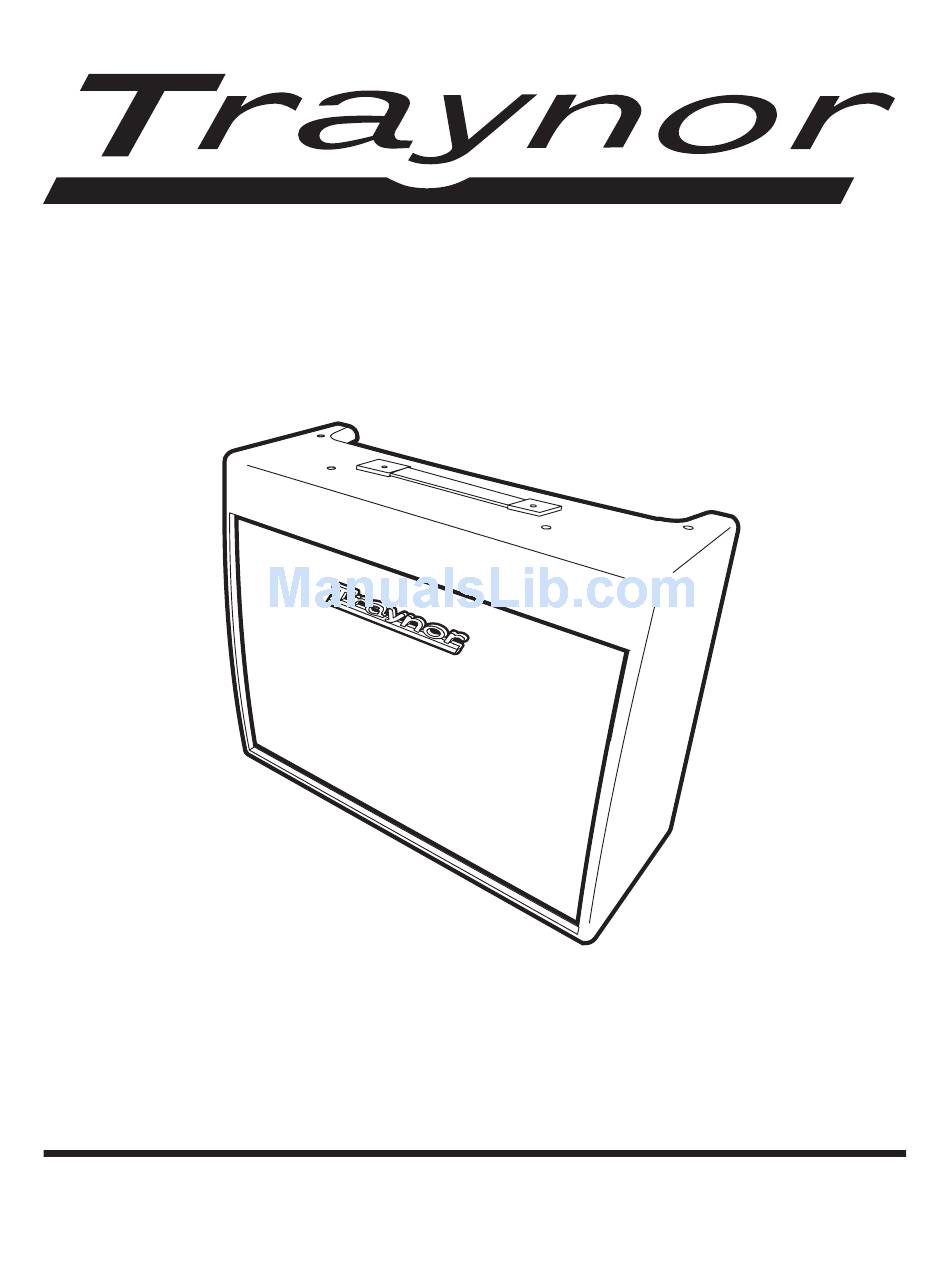

- Page 1 MODEL TYPE: YS1003 Custom Valve YCV40 A L L T U B E G U I T A R A M P L I F I E R...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS This lightning flash with arrowhead symbol, within The exclamation point within an equilatereal triangle is an equilateral triangle, is intended to alert the user to intended to alert the user to the presence of important the presence of uninsulated “dangerous voltage” operating and maintenance (servicing) instructions in within the product’s enclosure that may be of sufficient the literature accompanying the appliance.
- Page 3 The Traynor YCV40 / YCV40T Introduction The Traynor YCV40 / YCV40T is a professional all-tube guitar combo. It draws on the rich tradition of Traynor guitar amplifiers and combines the best of vintage design combined with modern principles, manufacturing techniques, and technology.
- Page 4 Send / Boost POWER DISCONNECT POWER WHEN REPLACING TUBES 6L6B 6L6B DÉBRANCHÉ L’APPAREIL AVANT DE REMPLACER LES LAMPES TRAYNOR YCV40 Extension CAUTION: REPLACE WITH Speaker SAME TYPE FUSE AND RATING ATTENTION: UTILISER UN FUSIBLE DE EFX / Line Footswitch Power...
-
Page 5: Master Controls
Boost Switch A boost circuit is included to help you achieve ‘a-bit-more’ overdrive for leads. The boost can be selected via the front panel switch or through the supplied footswitch pedal. A Red LED illuminates to indicate when the boost is active. Channel 1 Tone Controls The Treble, Bass, and Middle tone controls are used to help you shape your sound. - Page 6 External Speaker Jack/s These under-the-chassis mounted 1/4 inch jacks allow convenient connection of an 8-ohm external speaker cabinet. If you disconnect the internal 12 inch Celestion® speaker (2x10 inch on YCV40T), you can connect up to two 8-ohm external cabinets. Replacement Tube Selection &...
- Page 7 Traynor YCV40 / YCV40T Introduction Le Traynor YCV40/YCV40T est amplificateur professionnel à lampe pour guitare. Il s'inspire d'une riche tradition d'amplificateur pour guitare Traynor et combine les éléments les plus convoités des designs classiques et modernes avec les nouvelles technologies de fabrication. Caractéristiques •...
-
Page 8: Panneau Arrière
Send / Boost DISCONNECT POWER WHEN POWER REPLACING TUBES 6L6B 6L6B DÉBRANCHÉ L’APPAREIL AVANT DE REMPLACER LES LAMPES TRAYNOR YCV40 Extension CAUTION: REPLACE WITH Speaker SAME TYPE FUSE AND RATING ATTENTION: UTILISER UN FUSIBLE DE EFX / Line Footswitch Power... - Page 9 Commutateur “Boost” Un circuit de survoltage est inclut pour vous permettre d’obtenir un son plus saturé. Il peut être activé par le commutateur du panneau de contrôle ou par le commutateur au pied fournit avec l’appareil. Quand le circuit de survoltage est actif, une DEL Rouge s’illumine. Contrôle de Tonalité...
- Page 10 Prise/s Pour Haut-Parleur Externe Deux prises ¼¨ situées sous le châssis de l’amplificateur permettent le branchement d’un enceinte à haut-parleur additionnel de 8-ohms. Si vous débranchez le haut-parleur interne, vous pouvez brancher jusqu’à deux haut-parleur de 8-ohms. Sélection de Lampes de Remplacement et Polarisation Ces amplificateurs YCV sont équipés à...
- Page 11 SETTINGS SUGGESTED YCV40...
- Page 12 YCV40WR SUGGESTED SETTINGS...
- Page 13 SETTINGS USER YCV40...
- Page 15 SETTINGS USER YCV40...
- Page 16 YCV40 USER SETTINGS...
- Page 17 Hello Yes, you are unpacking me correctly This unit was intentionally packed this way to help the tubes stay seated during shipping thank-you Yorkville staff...
-
Page 19: Two Year Warranty
