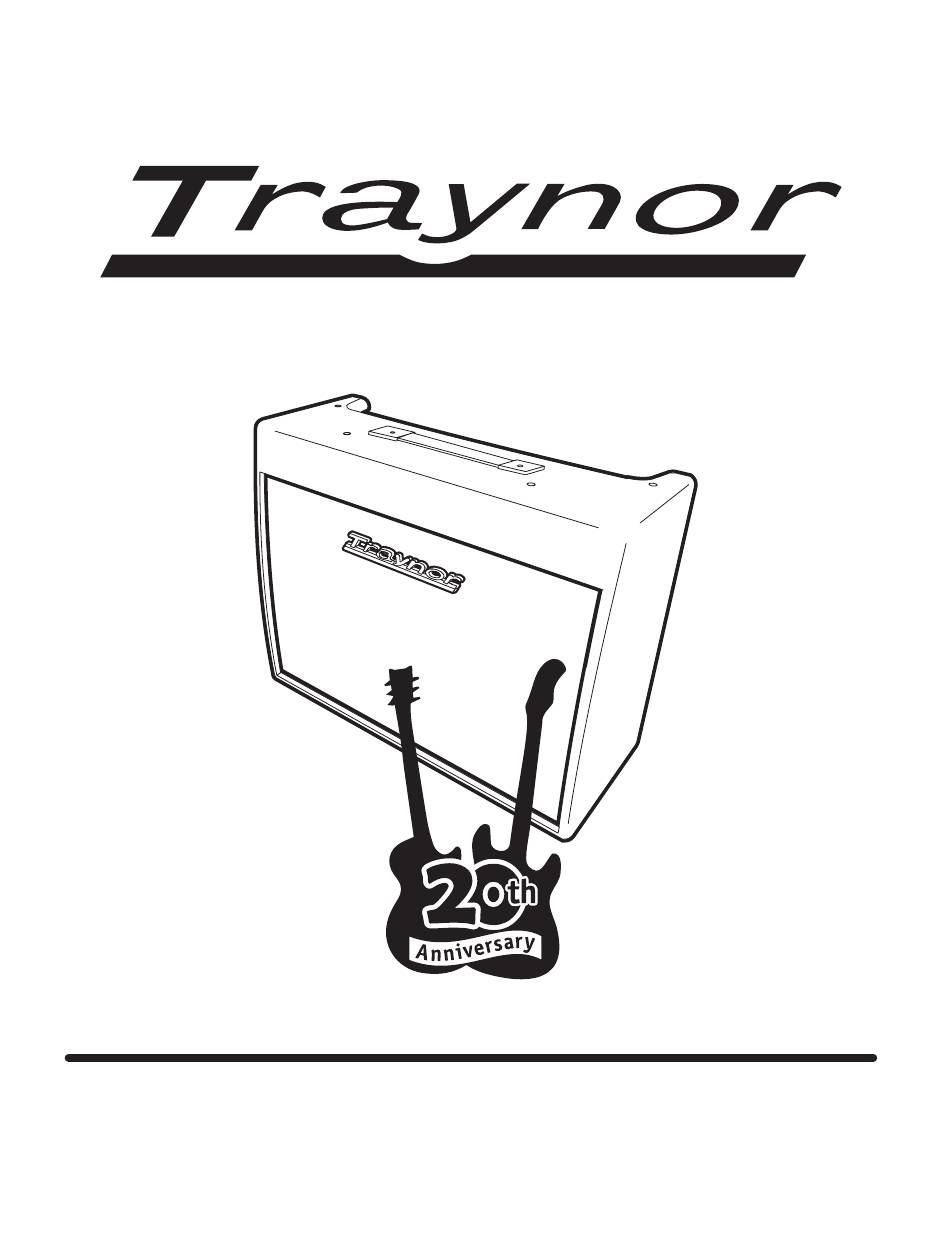

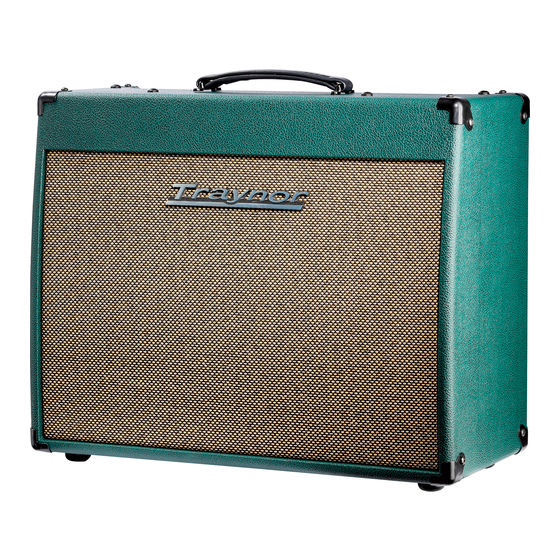

  • Page 1 Custom Valve YCV4050 A L L T U B E G U I T A R A M P L I F I E R YCV4050...

  • Page 2: Important Safety Instructions - English / Français

    Important Safety Instructions - English / Français I MP OR TA N T S A FE T Y I N ST R U C TI O N S This lightning flash with arrowhead symbol, within an The exclamation point within an equilatereal triangle is intended to alert the user to the presence equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous of important operating and maintenance (servicing) instructions in the literature accompanying voltage”...

  • Page 3: Table Of Contents

    Important Safety Instructions - English / Français ....i Canal 1 ................4 Table of Contents ..............ii 1. Entrée ................4 The Traynor YCV4050 ............1 2. Volume et de Gain ............4 Introduction ..............1 3. Commutateur “Boost” ..........4 Features ................

  • Page 4: The Traynor Ycv4050

    CET APPAREIL DOIT ÊTRE MIS À LA TERRE! The Traynor YCV4050 Introduction The Traynor YCV4050 is a professional all-tube guitar combo. It draws on the rich tradition of Traynor guitar amplifiers and combines the best of vintage design combined with modern principles, manufacturing techniques, and technology. Features •...

  • Page 5: Vintage / Modern Switch

    5. Vintage / Modern Switch The voice of Channel 1 can be modified from a smooth “vintage” voice to a more aggressive “modern” voice. 6. Channel Selection Select between Channel 1 and Channel 2, also see Footswitch Jack. Channel 2 7.

  • Page 6: Replacement Tubes And Bias

    Replacement Tubes and Bias The YCV4050 comes equipped with 6L6 output tubes. Replacements can be any brand of 6L6 or 5881 and we recommend that the bias voltage be measured and possibly adjusted (see below). Swapping in EL34/6CA7 output tubes requires a change in one of the bias resistors to avoid tube overheating. The modification should be per- formed by a qualified technician.

  • Page 7: Traynor Ycv4050

    Traynor YCV4050 Introduction Le Traynor YCV4050 est amplificateur professionnel à lampe pour guitare. Il s’inspire d’une riche tradition d’amplificateur pour guitare Traynor et combine les éléments les plus convoités des designs classiques et modernes avec les nouvelles technologies de fabrication. Caractéristiques •...

  • Page 8: Contrôle De Tonalité Du Canal 1

    4. Contrôle de Tonalité du Canal 1 Des contrôle d’Aiguë de Basse et de Médianes sont prévues pour vous permettre de façonner le son à vos sou- haits. Ils sont post-gain et pré-volume. Ces contrôles ne sont actifs que lorsque le canal 1 est sélectionné. 5.

  • Page 9: Prise/S Pour Haut-Parleur Externe

    Des relais internes se chargent de la commutation éliminant ainsi les bruits audibles qui circulent dans le câble du commutateur. Les bruits induis par le commutateur ne sont donc jamais un problème. Le YCV4050 est compatible avec la plupart des commutateurs doubles à système d’accrochage sur le marché. 16.

  • Page 10: Suggested Settings

    Suggested Settings YCV4050 SUGGESTED SETTINGS...

  • Page 11: User Settings

    User Settings...

  • Page 14: Specifications - English

    Specifications - English S p e c i f i c a t i o n s Electronics Vacuum Tubes 2 x 6L6 (alt 5881) 3 x 12AX7 (alt 7025A) DC powered filament supply on preamp tubes Bias Supply Adjustable Power Output 50 Watts RMS Speaker 12 inch Celestion®...

  • Page 15: Spécifications - Français

    Spécifications - Français S p é c i f i c a t i o n s Circuit Électronique 6L6 (alt 5881 types) Lampes 2 x 3 x 12AX7 (alt 7025A) Alimentation de filament spécial sur les lampes de préamplificateur. Tension de Polarisation Auto équilibrée Puissance de Sortie 50 watts RMS Celestion®...

  • Page 16: Block Diagram

    Block Diagram...

  • Page 17: Warranty - English / Français

    Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date, simply return it to your Traynor dealer with original proof of purchase and it will be repaired free of charge.

  • Page 18: Rear Page

    WORLD HEADQUARTERS CANADA U.S.A. Yorkville Sound Limited Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W 3Y8 CANADA 14305, USA Voice: 905-837-8481 Voice: 716-297-2920 Fax: 905-837-8746 Fax: 716-297-3689 Manual-Owners-YCV4050-00-1v3 • September 14, 2022...
