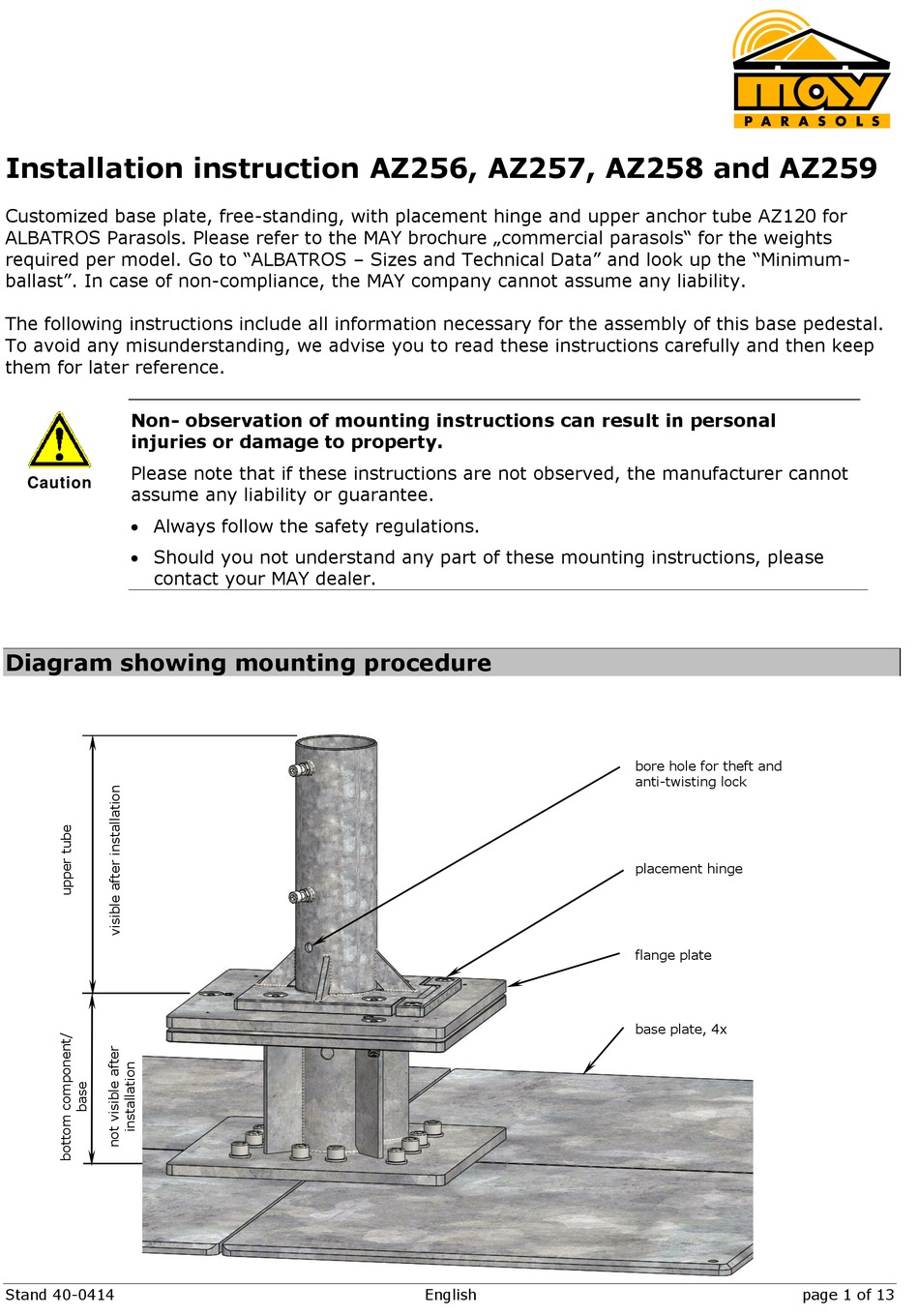

Installation instruction AZ256, AZ257, AZ258 and AZ259
Customized base plate, free-standing, with placement hinge and upper anchor tube AZ120 for
ALBATROS Parasols. Please refer to the MAY brochure „commercial parasols" for the weights
required per model. Go to "ALBATROS – Sizes and Technical Data" and look up the "Minimum-
ballast". In case of non-compliance, the MAY company cannot assume any liability.
The following instructions include all information necessary for the assembly of this base pedestal.
To avoid any misunderstanding, we advise you to read these instructions carefully and then keep
them for later reference.
Non- observation of mounting instructions can result in personal
injuries or damage to property.
Please note that if these instructions are not observed, the manufacturer cannot
Caution
assume any liability or guarantee.
Always follow the safety regulations.
Should you not understand any part of these mounting instructions, please
contact your MAY dealer.
Diagram showing mounting procedure
Stand 40-0414
English
bore hole for theft and
anti-twisting lock
placement hinge
flange plate
base plate, 4x
page 1 of 13
Advertisement
Related Manuals for MAY PARASOLS AZ256
Summary of Contents for MAY PARASOLS AZ256
- Page 1 Customized base plate, free-standing, with placement hinge and upper anchor tube AZ120 for ALBATROS Parasols. Please refer to the MAY brochure „commercial parasols“ for the weights required per model. Go to “ALBATROS – Sizes and Technical Data” and look up the “Minimum- ballast”.
- Page 2 wooden planking reinforced concrete base Stand 40-0414 English page 2 of 13...
- Page 3 Functioning of the placement hinge The placement hinge will not function if the total height is not correctly dimensioned. If item AZ256 / AZ257 / AZ258 / AZ259 has, by mistake, been ordered and Caution installed with the wrong height measurements, do at least make sure that the bottom component is not set too far down in the ground.
- Page 4 Allow enough clearance between parasols or from walls. Parasols that are located too close together wear sooner. Parasols may sway slightly. If there is not enough space between them, they may touch and abrade or scour the canopy fabric at the spoke ends.
- Page 5 4. For AZ257, AZ258 and AZ259, now add the additional steel plates. Use the enclosed hexagonal screws M5 x 60 mm as spacers (and for assembly) between the individual steel plates to ensure prescise positioning. AZ257, 2-layer: Stand 40-0414 English page 5 of 13...
- Page 6 AZ258, 3-layer: AZ259, 4-layer: 5. For AZ257, AZ258 and AZ259, now use the 4 hex socket head screws to connect the additional layers of steel plates with each other, one at each corner. 2 layers of steel plates: M16 x 30 mm 3 layers of steel plates: M16 x 45 mm 4 layers of steel plates: M16 x 60 mm 10 mm hex key...
- Page 7 The correct torque for a torque wrench is 210 Nm. Risk of damaging threads. Sand is harder than steel. Driving sand-covered screws may damage the threads. It is advisable to clean and grease screws and thread holes. Caution...
- Page 8 7. Screw the upper anchor tube onto the flange plate (cf. illustration). To do so, put the M16x30mm countersunk screw and tighten it, using the 10 mm hex key and extension provided. 10 mm hex key countersunk screw M16x30mm, 4x 8.
- Page 9 The correct torque for a torque wrench is 86 Nm. Risk of damaging threads. Sand is harder than steel. Driving sand-covered screws may damage the threads. It is advisable to clean and grease screws and thread holes. Caution 9.
- Page 10 10. As a rule, the reinforced concrete foundation is not completely even, meaning that the parasol will not necessarily stand perfectly upright. In this case, the upper anchor tube must be straightened with the help of the setscrews. In order to ensure that the upper tube and the parasol are in a vertical position, the flange plate must be levelled.
-
Page 11: Power Supply (Optional)
Electric installation work should be carried out solely by a certified electrician. Disregarding this warning may result in serious personal injuries. Danger Personal injury in case of faults. - Page 12 3. Screw the top plate onto the lower anchor tube. (cf. illus.) The thread can get damaged. When the top plate is not on the lower anchor tube, sand may get washed into the flanks of the thread. As sand is harder than steel, the thread may get Caution damaged when the screw is turned.
-
Page 13: Project Management
In case this installation option is found not to be suitable, you may select another option from the MAY program. Customized options are available upon request depending on complexity. - Page 14 1 layer, approx. 322 kg, with placement hinge, AZ256 This order sheet must be filled out completely and supplied to the MAY company before production. Art. no. AZ256: Multi-piece, screw-off upper part and base spacer, for centre pole- ø 100 mm, mounted on site, heaviest part approx.
- Page 15 1 layer, approx. 322 kg, with placement hinge, AZ256 This order sheet must be filled out completely and supplied to the MAY company before production. Art. no. AZ256: Multi-piece, screw-off upper part and base spacer, for centre pole- ø 100 mm, mounted on site, heaviest part approx.
- Page 16 2 layer, approx. 568 kg, with placement hinge, AZ257 This order sheet must be filled out completely and supplied to the MAY company before production. Art. no. AZ257: Multi-piece, screw-off upper part and base spacer, for centre pole- ø 100 mm, mounted on site, heaviest part approx.
- Page 17 2 layer, approx. 568 kg, with placement hinge, AZ257 This order sheet must be filled out completely and supplied to the MAY company before production. Lower part of AZ257 (208731) with top plate for winter protection. All bases are custom-made. When ordering, please state the total height required, including winter top plate.
- Page 18 3 layer, approx. 817 kg, with placement hinge, AZ258 This order sheet must be filled out completely and supplied to the MAY company before production. Art. no. AZ258: Multi-piece, screw-off upper part and base spacer, for centre pole- ø 100 mm, mounted on site, heaviest part approx.
- Page 19 3 layer, approx. 817 kg, with placement hinge, AZ258 This order sheet must be filled out completely and supplied to the MAY company before production. Lower part of AZ258 (208732) with top plate for winter protection. All bases are custom-made. When ordering, please state the total height required, including winter top plate.
- Page 20 4 layer, approx. 1,066 kg, with placement hinge, AZ259 This order sheet must be filled out completely and supplied to the MAY company before production. Art. no. AZ259: Multi-piece, screw-off upper part and base spacer, for centre pole- ø 100 mm, mounted on site, heaviest part approx.
- Page 21 4 layer, approx. 1,066 kg, with placement hinge, AZ259 This order sheet must be filled out completely and supplied to the MAY company before production. Lower part of AZ259 (354916) with top plate for winter protection. All bases are custom-made. When ordering, please state the total height required, including winter top plate.
