MAY DMZ411 Mounting Instructions

Full-frame pedestal with screw-on tube, for type mezzo, dacapo and filius

Mounting instructions DMZ411 / DMZ412 / DMZ414 / DMZ420

Full-frame pedestal with screw-on tube, for type MEZZO, DACAPO and FILIUS

The following instructions include all information necessary for the assembly and operation of this

frame pedestal. To avoid any misunderstanding we advise you to read these instructions carefully

and then keep them for later reference.

Non- observation of mounting instructions can result in personal injuries

or damage to property.

Please note that if these instructions are not observed, the manufacturer cannot

Caution

assume any liability or guarantee.

 Always follow the safety regulations.

 Should you not understand any part of these mounting instructions, please

contact your MAY dealer.

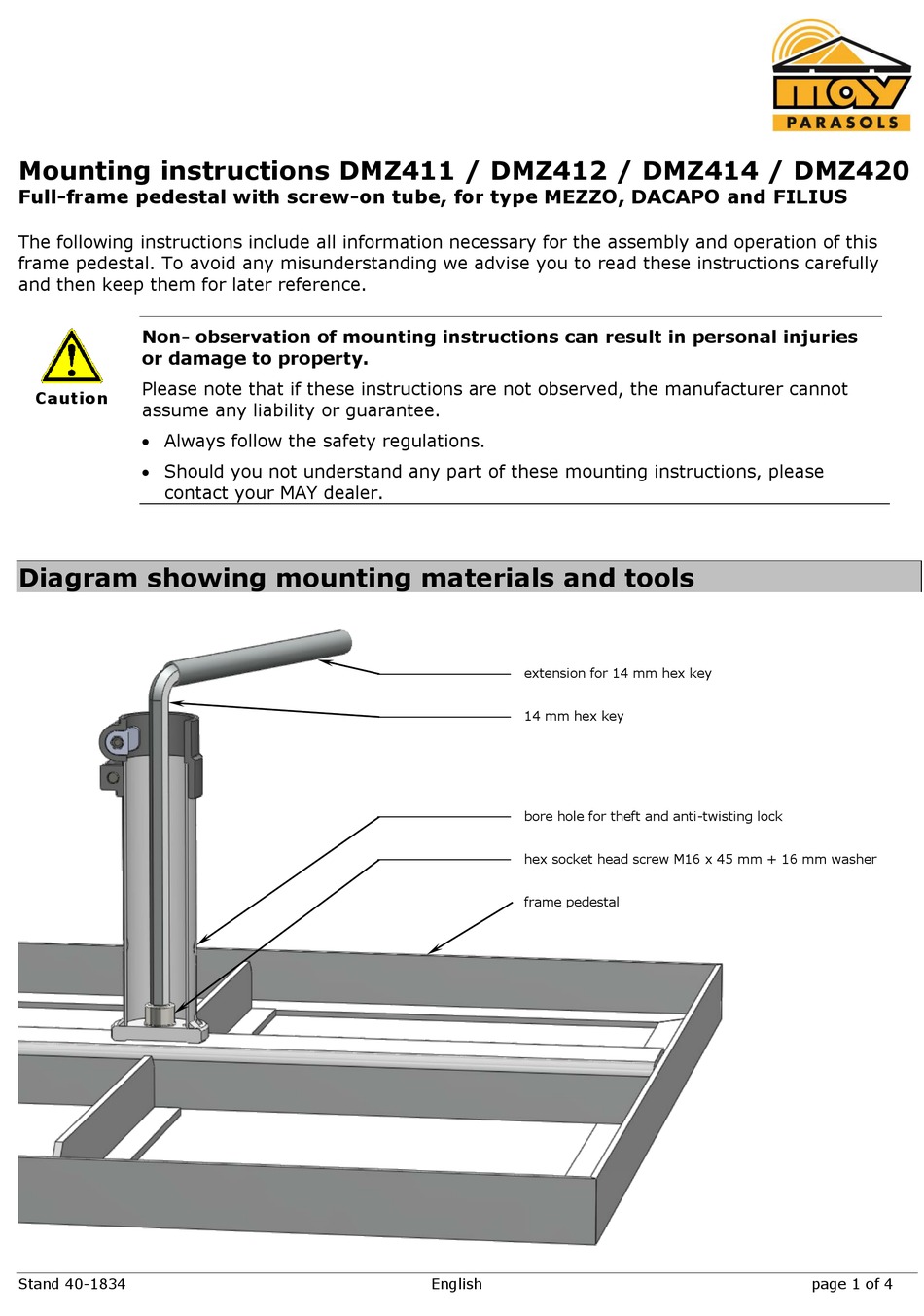

Diagram showing mounting materials and tools

Stand 40-1834

extension for 14 mm hex key

14 mm hex key

bore hole for theft and anti-twisting lock

hex socket head screw M16 x 45 mm + 16 mm washer

frame pedestal

English

page 1 of 4

Table of Contents

Need help?

Do you have a question about the DMZ411 and is the answer not in the manual?

Page 1 Mounting instructions DMZ411 / DMZ412 / DMZ414 / DMZ420 Full-frame pedestal with screw-on tube, for type MEZZO, DACAPO and FILIUS The following instructions include all information necessary for the assembly and operation of this frame pedestal. To avoid any misunderstanding we advise you to read these instructions carefully and then keep them for later reference.
Page 2 Sunshades that are located too close together wear sooner. Sunshades may sway slightly. If there is not enough space between them, they may touch and abrade or scour the canopy fabric at the spoke ends.
Page 3 A falling sunshade can cause serious or even fatal injury. If the number of concrete slabs in the frame does not correspond with the size of the umbrella, the sunshade may fall and cause injuries. Attention  Observe the information given in the above chart.
Page 4 3. Press on the end caps. ref. 3 Mounting heavy-duty castors [for SZ414 only] 1. Take the heavy-duty castors, the standard parts provided and the 7 mm hex key from the packaging. 2. Mount the castors by screwing them together with the standard parts into the corner sleeves of the frame as shown in the illustration below.
