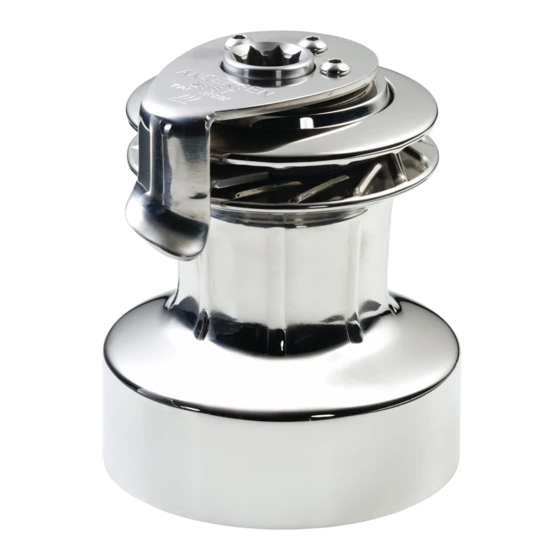

- Page 1 Compact Electric Winches Above and Below Deck Electric Compact Motors for ANDERSEN Winches® 28/40/46/50/52/58/62/68/72ST Version 5.7 Part no.: 710220 - 22. maj 2015 (v5.7)
- Page 2 Manufactured by: Ronstan Denmark ApS. - Jægervænget 36 - 7100 Vejle – Denmark - info@andersenwinches - www.andersenwinches.com...
-
Page 3: Table Of Contents
Contents Safety notices __________________________________________________________ 3 Safety First ____________________________________________________________ 4 General Information ____________________________________________________ 4 Important _____________________________________________________________ 5 Guideline for use _______________________________________________________ 5 Installation ____________________________________________________________ 6 Electrical Installation ___________________________________________________ 10 Circuit breaker safety switch installation ___________________________________ 12 Circuit breaker safety switch information codes ______________________________ 13 Important electric installation information __________________________________ 14 Wiring Diagram Schematic - standard installation ____________________________ 15 Trouble shooting ______________________________________________________ 16... -
Page 4: Safety Notices
Safety notices DO NOT DISCARD Manufactured by: Ronstan Denmark ApS. - Jægervænget 36 - 7100 Vejle – Denmark - info@andersenwinches - www.andersenwinches.com... -
Page 5: Safety First
Andersen Electric Compact Winch. Your new Always install the motor at least a 1 m from Andersen Motor is light, powerful and uses your compass. However, while activated the considerably less current than most other motor may affect compasses at greater motors. -
Page 6: Important
Please read the following prior to get the best together with the other switch. use of your new Andersen Compact Winch motor. If the run time is too long. -
Page 7: Installation
(which should not exceed more If in doubt about how to install your new than a few drops per week). If the motor is Andersen Compact Motor ask a qualified situated in a position where damage of boat tradesperson for help. - Page 8 Mounting sketches for Above deck Winch 28/34/40ST AD Winch 46/50ST AD Winch 46/48ST AD Winch 28/40ST AD Not Supplied Not Supplied Deck Deck Winch 68/72ST AD Winch 68ST AD Winch 52/58/62ST AD Winch 52/58/62ST AD Detail A Ø11 Alternatively is to Ø6,2...
- Page 9 Drain hose Above deck motor with o- Stainless steel sleeve rings top & side Free running axel (Not used on 28ST & 40ST models. For 68ST 2 axels pre-mounted in the winch) Circuit breaker with thermo cut-out Extension cable Variable speed switch 1.
- Page 10 Gear wheel Deck plate Below deck motor Circuit breaker with Variable speed thermo cut-out switch Note: The pictured motor is for a 52 ver.2.5. The connecting gear on the top of the motor may be different for Extension cable Mounting nut other winch sizes Mounting nut Locking screw...
-
Page 11: Electrical Installation
Always apply the relevant voltage to your both gears without great resistance. If this is not the case, repeat steps 12-14. motor. Always use the Andersen circuit breaker provided, wired as described in the wiring diagram Never alter any part of the motor including switches and control cables. - Page 12 (and back) via the circuit provided with 1m of cable. If longer breaker to determine the necessary total cable is required, contact your Andersen cable length and thickness (see wiring dealer for an extension cable. diagram). The cable should be as short as possible to minimise voltage drop from 7.
-
Page 13: Circuit Breaker Safety Switch Installation
Circuit breaker safety switch installation The Compact motor is supplied with a special circuit breaker safety switch for the Compact motor installation. The circuit breaker safety switch is fitted with a PCB (Print Circuit Board), which shall be connected as described below. The system is a combined safety switch and PCB makes a reliable circuit protection for the motor installation. -
Page 14: Circuit Breaker Safety Switch Information Codes
Circuit breaker safety switch information codes The circuit breakers printed circuit board (PCB) is fitted with 3 LED (diodes) – green, yellow and red color – see photo on the previous page. The LED’s gives information function about the actual drift, they have the following function: ... -
Page 15: Important Electric Installation Information
Check that the (unloaded) voltage of any generator(s) does not exceed 15,5V for 12V systems - and 28,5V for 24 V systems. Be sure that the alternator does not charge with higher voltage than 15,5 (12V system) or 28,5 volt (24volt system) ... -
Page 16: Wiring Diagram Schematic - Standard Installation
Wiring Diagram Schematic - standard installation Compact Motor with intergrated control. Cable size : (same for 12V and 24V) Up to 10m total length of + and -: 25mm² 10m to 15m total length of + and -: 35mm² Install circuit breaker 15m to 20m total length as close as possible of + and -: 50mm²... -
Page 17: Trouble Shooting
70ºC the motor thermo sensor will turn can be re-set. If the problem re-occurs the circuit breaker “OFF” contact your Andersen dealer for service. The circuit breaker trips Error code on the circuit breaker, see Depending on the error code action has to... -
Page 18: General Service Instructions
PERIODIC LUBRICATION OF THE MOTOR OUTPUT SHAFT SEAL In order to avoid potential sea water intrusion and to increase the lifetime of your Andersen electric winch motor drive, we recommend re-lubrication of the output gear shaft seal once a year. - Page 19 2. Separate the motor unit from the gear unit by lifting the gear unit up. If difficult to separate, tap the gear house with a plastic hammer while pulling apart. 3. Clean the top of the motor including the gear, re-lubricate the gear with Andersen Winch Grease Andersen Winch Grease and place it to one side.
- Page 20 Andersen winch grease and mount new pawls and springs – place to one side. 3. Clean the top of the motor including the gear, re-lubricate the gear with Andersen 14.
- Page 21 3. Clean the top of the motor including the 3. Clean the top of the motor including the gear, re-lubricate the gear with Andersen gear, re-lubricate the gear with Andersen winch grease and place it to one side. winch grease and place it to one side.
-
Page 22: Spare Parts
COMPACT SERVICE KIT 4; 68/72 ST COMPACT A/D (Ø280mm)* 710104 COMPACT SERVICE KIT 5; 68/72ST COMPACT A/D (Ø300mm)* 710105 COMPACT SERVICE KIT 11; 28,40 ,50, 52, 58/62ST, 68/72ST 710111 COMPACT B/D (ø195 & Ø250mm)** COMPACT SERVICE KIT 12; 68/72ST COMPACT B/D (Ø300mm)**... - Page 23 Manufactured by: Ronstan Denmark ApS. - Jægervænget 36 - 7100 Vejle – Denmark - info@andersenwinches - www.andersenwinches.com...
-
Page 24: Warranty
Warranty Refer to our website www.ronstan.com/warranty for our warranty terms and conditions. Worldwide Distribution and Service (FOR UPDATED DISTRIBUTOR LIST, PLEASE SEE WWW.ANDERSENWINCHES.COM) Manufactured by: Ronstan Denmark ApS. - Jægervænget 36 - 7100 Vejle – Denmark - info@andersenwinches - www.andersenwinches.com...
