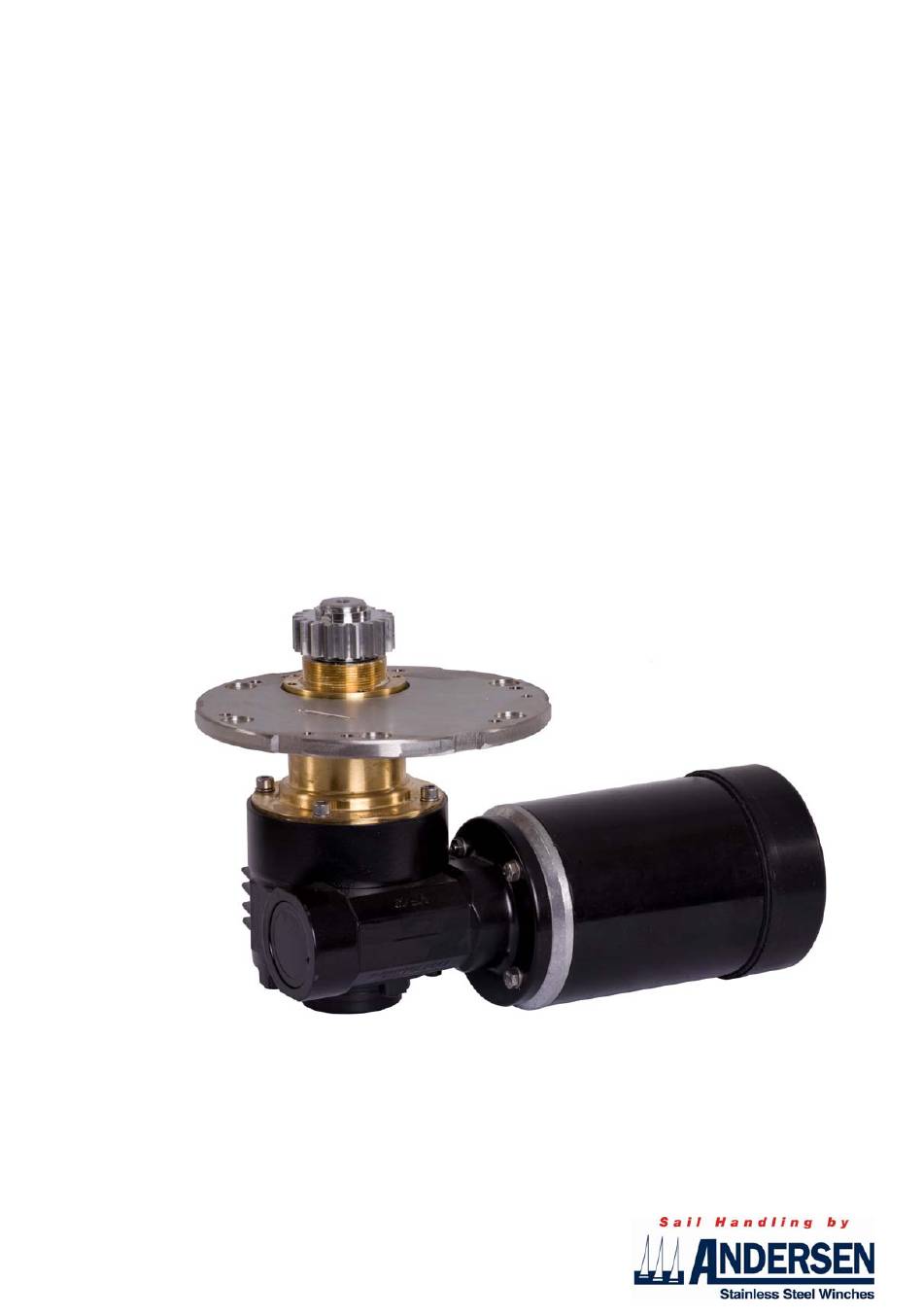

- Page 1 Manual 58/62 & 68/72 STE SE 2+1 SPEED 12V & 24V GENEREL INFORMATION MOUNTING INSTRUCTION EXPLODED VIEW PARTS LIST CONNECTING DIAGRAM WIRE DIMENSION AND FUSE SIZE WORLD WIDE DISTRIBUTION LIST SERIAL NO: PS_____________ www.Busse-Yachtshop.de - info@busse-yachtshop.de...
-
Page 2: General Information
CONGRATULATIONS You have purchased an ANDERSEN high quality winch. This product is a result of many years of development and experience in producing winches for sailboats. This winch gives you a high degree of functionality and many years of safe and easy sail handling. -
Page 3: Mounting Instruction
MOUNTING INSTRUCTION 58/62 & 68/72 STE SE 2+1 SPEED FIG.1 FIG.3 FIG.2 Ø24 FIG.4 www.Busse-Yachtshop.de - info@busse-yachtshop.de... - Page 4 Important Installation Information! It is extremely important that your motor is aligned with your winch. Non-aligned motors will be noisy and gear wear will be accelerated. To insure that your motor is aligned properly the motor flange must be flush with the deck plate and the eight-sided nut must fit snugly into the octagon in the deck plate.
-
Page 5: Exploded View
EXPLODED VIEW 58/62 & 68/72 STE SE 2+1 SPEED 2.14 2.13 ACCESSORIES 2.12 2.11 2.1.2 2.1.1 2.10 www.Busse-Yachtshop.de - info@busse-yachtshop.de... -
Page 6: Parts List
PARTS LIST 58/62 & 68/72 STE SE 2+1 SPEED POS. QTY. DESCRIPTION ART. NO. EL-unit 58/62STE TYPE SE 12V 777100 EL-unit 58/62STE TYPE SE 24V 777110 EL-unit 68/72STE TYPE SE 12V 777120 EL-unit 68/72STE TYPE SE 24V 777130 Motor CIMA 1500W 12V STE SE 777340 Motor CIMA 1500W 24V STE SE 777350... - Page 7 www.Busse-Yachtshop.de - info@busse-yachtshop.de...
- Page 8 CONNECTING DIAGRAM 12V + 24V 58/62 & 68/72 STE SE 2+1 SPEED www.Busse-Yachtshop.de - info@busse-yachtshop.de...
- Page 9 FUSE BATTERI IMPORTANT: Do not use connection 1D1 REMARK: Fuse must be of a slow blow type MINIMUM WIRE DIMENSIONS & FUSE SIZES (Not for continuous service) www.Busse-Yachtshop.de - info@busse-yachtshop.de...
- Page 10 CAP. CAP. 0-3 m / 0-10 ft 70 mm² 200 A 360 Ah 35mm² 125 A 240Ah 58/62 STE SE 3-8 m / 10-27 ft 95 mm² 224 A 360 Ah 50mm² 200 A 240Ah 0-3 m / 0-10 ft 70 mm²...
