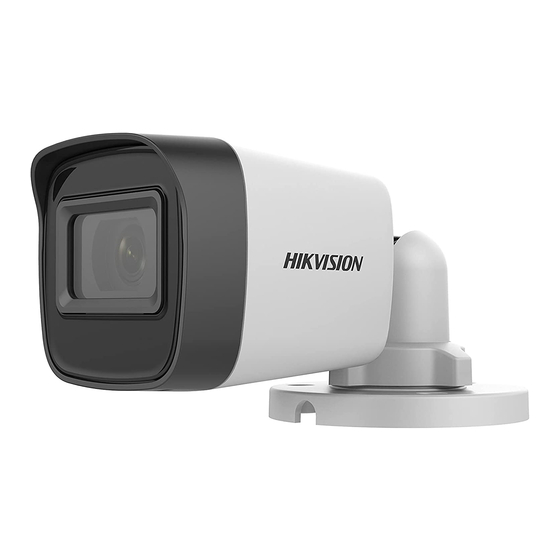

HIKVISION DS-2CE57H0T-VPITF User Manual
  1. Manuals
  2. Brands
  3. HIKVISION Manuals
  4. Security Camera
  5. DS-2CE57H0T-VPITF
  6. User manual

HIKVISION DS-2CE57H0T-VPITF User Manual

Bullet & dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
H0T Series Bullet & Dome
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to models below:
Type
Type I
Camera
Type II
Camera
Type III
Camera
Type IV
Camera
This manual may contain several technical mistakes or
printing errors, and the content is subject to change
without notice. The updates will be added to the new
version of this manual. We will readily improve or
update the products or procedures described in the
manual.
Model
DS-2CE16H0T-ITF(C)
DS-2CE16H0T-ITPF(C)
DS-2CE16H0T-IT1/3/5F(C)
DS-2CE57H0T-VPITF(C)
DS-2CE56H0T-IRMMF(C)
Camera
User Manual
0100001090626

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-2CE57H0T-VPITF and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-2CE57H0T-VPITF

Summary of Contents for HIKVISION DS-2CE57H0T-VPITF

  • Page 1 H0T Series Bullet & Dome Camera User Manual User Manual Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual applies to models below: Type Model DS-2CE16H0T-ITF(C) Type I...

  • Page 2: Regulatory Information

    Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 3 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
  • Page 4 Keep the camera away from liquid while in use for  non-water-proof device. While in delivery, the camera shall be packed in its  original packing, or packing of the same texture. Mark Description Table 0-1 Mark Description Mark Description DC Voltage 1 Introduction 1.1 Product Features...
  • Page 5 Note: Press and hold the switch button for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS. 1.2.4 Overview of Type IV Camera Black Liner Adjusting Screws IR Zoom module Switch Button Power Cord Bubble...

  • Page 6: Installation

    2 Installation Before you start: Make sure that the device in the package is in good  condition and all the assembly parts are included. Make sure that all the related equipment is power-off  during the installation. Check the specification of the products for the ...
  • Page 7 not, adjust the camera according to the figure below. Figure 2-3 3-Axis Adjustment 2.2 Ceiling/Wall Mounting of Type II Camera Before you start: The ceiling mounting and the wall mounting are similar. Following takes ceiling mounting as an example. Steps: 1.
  • Page 8 2.3 Ceiling Mounting of Type III Camera Before you start: The ceiling mounting and the wall mounting are similar. Following takes ceiling mounting as an example. Steps: 1. Paste the drill template (supplied) to the place where you want to install the camera. 2.
  • Page 9 Pan Position [0° to 355°] Tilt Adjusting Screw Rotation Position Tilt Position [0° to 355°] [0° to 75°] Figure 2-10 3-Axis Adjustment 8. Install the bubble back and tighten screws to finish the installation. Figure 2-11 Install the Bubble Back 2.4 Ceiling Mounting of Type IV Camera Before you start: The ceiling mounting and the wall mounting are similar.
  • Page 10 4. Drill the screw holes and cable hole (optional) on the ceiling according to the drill template. Figure 2-14 Drill Template Note: Cable hole is required when adopting ceiling outlet to route the cable. 5. Route the cables through the cable hole (optional), or the side opening.

  • Page 11: Menu Description

    3 Menu Description Please follow the steps below to call the menu. Note: The actual display may vary with your camera model. Steps: 1. Connect the camera with the TVI DVR, and the monitor, shown as the figure 3-1. Figure 3-1 Connection 2.
  • Page 12 2). Click Iris + to confirm the selection. 3). Click left/right direction button to adjust the value of the selected item. 3.1 VIDOE FORMAT You can set the video format to 5MP@20fps, 4MP@30fps, 4MP@25fps, 2MP@30fps, or 2MP@25fps. 3.2 EXPOSURE Exposure describes the brightness-related parameters, which can be adjusted by EXPOSURE MODE, SHUTTER and AGC.
  • Page 13 B&W (Black and White) The image is black and white all the time, and the IR LIGHT turns on in the poor light conditions. You can turn on/off the IR LIGHT and set the value of SMART IR in this menu Figure 3-4 B&W ...

  • Page 14: Video Settings

    set the value from 1 to 9. The larger the value, the more sensitive the camera. 3.4 VIDEO SETTINGS Move the cursor to VIDEO SETTINGS and click Iris+ to enter the submenu. IMAGE MODE, WHITE BALANCE, BRIGHTNESS, CONTRAST, SHARPNESS, SARUTATION, DNR, and MIRROR are adjustable.

  • Page 15: Factory Default

    SATURATION Saturation is the proportion of pure chromatic color in the total color sensation. The saturation of a color is determined by a combination of light intensity and how much it is distributed across the spectrum of different wavelengths. DNR (Digital Noise Reduction) The DNR function can decrease the noise effect, especially when capturing moving images in poor light conditions and delivering more accurate and sharp...
