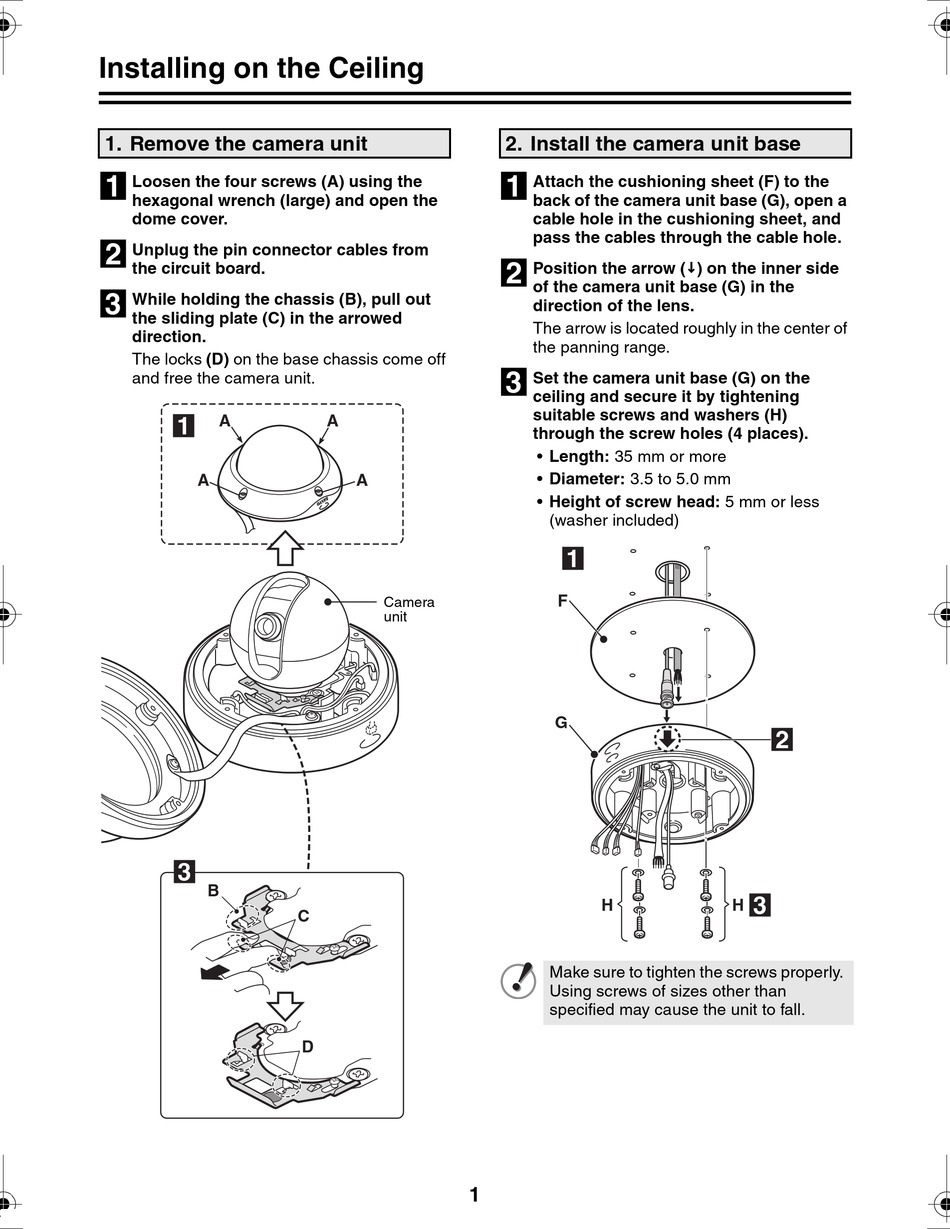

Installing on the Ceiling

1. Remove the camera unit
1
Loosen the four screws (A) using the
hexagonal wrench (large) and open the
dome cover.
2
Unplug the pin connector cables from
the circuit board.
3
While holding the chassis (B), pull out
the sliding plate (C) in the arrowed
direction.
The locks (D) on the base chassis come off
and free the camera unit.
1
A
A
3
B
A
A
Camera
unit
C
D
2. Install the camera unit base
1
Attach the cushioning sheet (F) to the
back of the camera unit base (G), open a
cable hole in the cushioning sheet, and
pass the cables through the cable hole.
2
Position the arrow (y) on the inner side
of the camera unit base (G) in the
direction of the lens.
The arrow is located roughly in the center of
the panning range.
3
Set the camera unit base (G) on the
ceiling and secure it by tightening
suitable screws and washers (H)
through the screw holes (4 places).
• Length: 35 mm or more
• Diameter: 3.5 to 5.0 mm
• Height of screw head: 5 mm or less
(washer included)
1
F
G
H
Make sure to tighten the screws properly.
Using screws of sizes other than
specified may cause the unit to fall.
1
2
3
H
