2

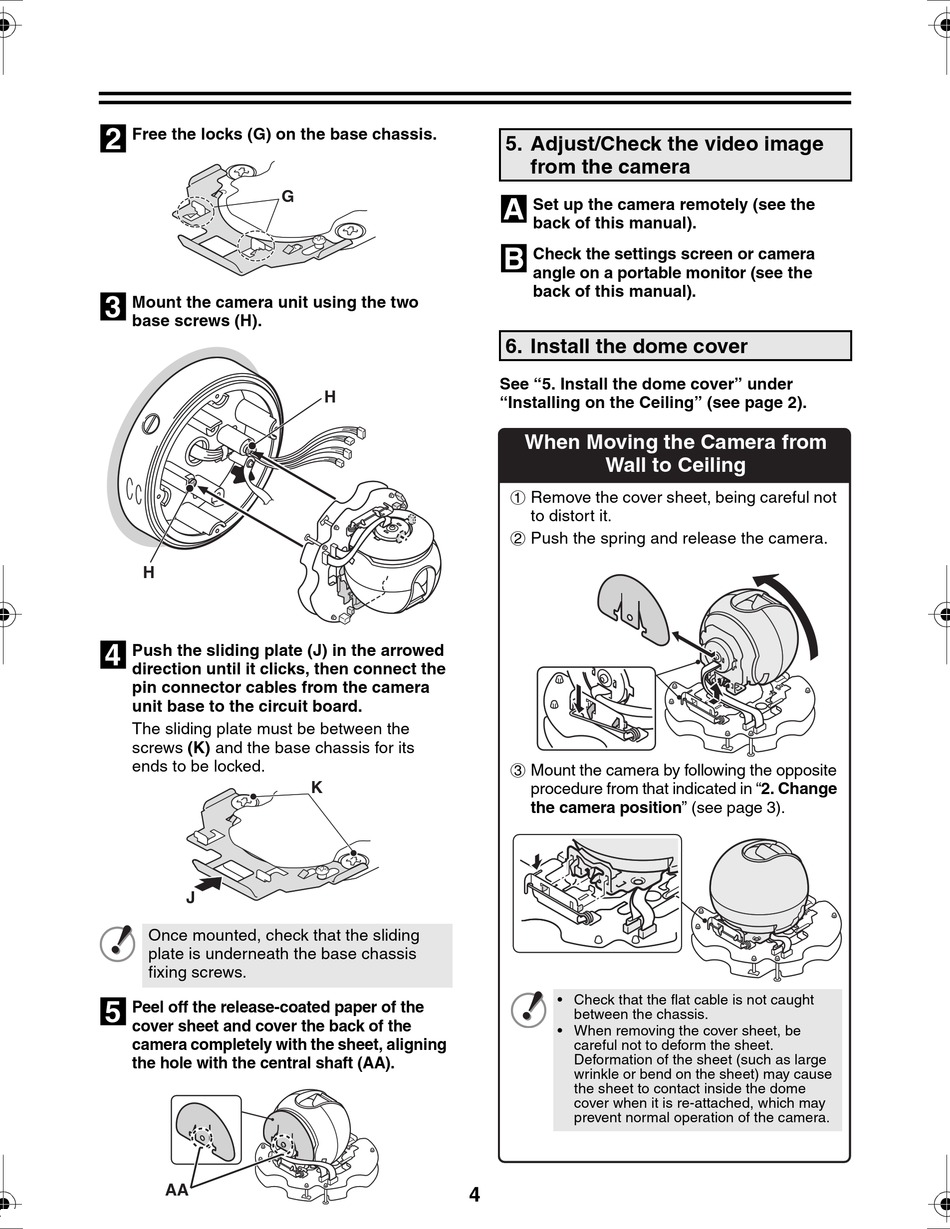

Free the locks (G) on the base chassis.
3
Mount the camera unit using the two
base screws (H).
H
4
Push the sliding plate (J) in the arrowed
direction until it clicks, then connect the
pin connector cables from the camera
unit base to the circuit board.
The sliding plate must be between the
screws (K) and the base chassis for its
ends to be locked.
J
Once mounted, check that the sliding
plate is underneath the base chassis
fixing screws.
5
Peel off the release-coated paper of the
cover sheet and cover the back of the
camera completely with the sheet, aligning
the hole with the central shaft (AA).
AA
G
H
K
5. Adjust/Check the video image
from the camera
A
Set up the camera remotely (see the
back of this manual).
B
Check the settings screen or camera
angle on a portable monitor (see the
back of this manual).
6. Install the dome cover
See "5. Install the dome cover" under
"Installing on the Ceiling" (see page 2).
When Moving the Camera from
Wall to Ceiling
1 Remove the cover sheet, being careful not
to distort it.
2 Push the spring and release the camera.
3 Mount the camera by following the opposite
procedure from that indicated in "2. Change
the camera position" (see page 3).
• Check that the flat cable is not caught
between the chassis.
• When removing the cover sheet, be
careful not to deform the sheet.
Deformation of the sheet (such as large
wrinkle or bend on the sheet) may cause
the sheet to contact inside the dome
cover when it is re-attached, which may
prevent normal operation of the camera.
4
