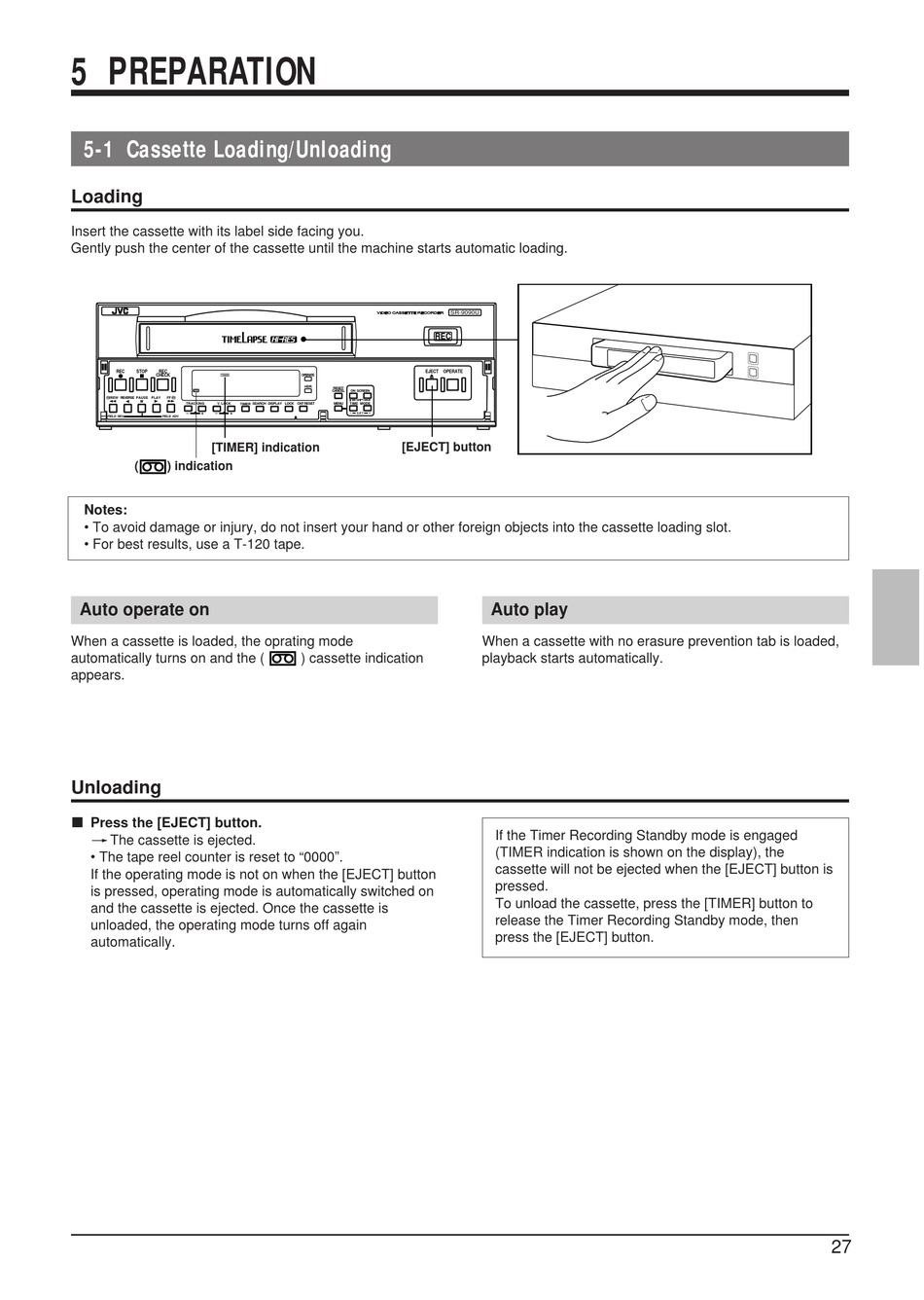

5 PREPARATION

5-1 Cassette Loading/Unloading

Loading
Insert the cassette with its label side facing you.
Gently push the center of the cassette until the machine starts automatic loading.
REC STOP REC
CHECK
REVERSE FF
REW PAUSE PLAY
TRACKING V. LOCK TIMER SEARCH
– + – +
FIELD REV FIELD ADV
[TIMER] indication
( ) indication
Notes:
• To avoid damage or injury, do not insert your hand or other foreign objects into the cassette loading slot.
• For best results, use a T-120 tape.
Auto operate on
When a cassette is loaded, the oprating mode
automatically turns on and the (
appears.
Unloading
5 Press the [EJECT] button.
[The cassette is ejected.
• The tape reel counter is reset to "0000".
If the operating mode is not on when the [EJECT] button
is pressed, operating mode is automatically switched on
and the cassette is ejected. Once the cassette is
unloaded, the operating mode turns off again
automatically.
REC
EJECT OPERATE
OPERATE
HDR
RESET/
CANCEL ON SCREEN
SHIFT
DISPLAY LOCK CNT RESET MENU TIME MODE
– +
S E T
[EJECT] button
) cassette indication
SR-9090U
Auto play
When a cassette with no erasure prevention tab is loaded,
playback starts automatically.
If the Timer Recording Standby mode is engaged
(TIMER indication is shown on the display), the
cassette will not be ejected when the [EJECT] button is
pressed.
To unload the cassette, press the [TIMER] button to
release the Timer Recording Standby mode, then
press the [EJECT] button.
27
