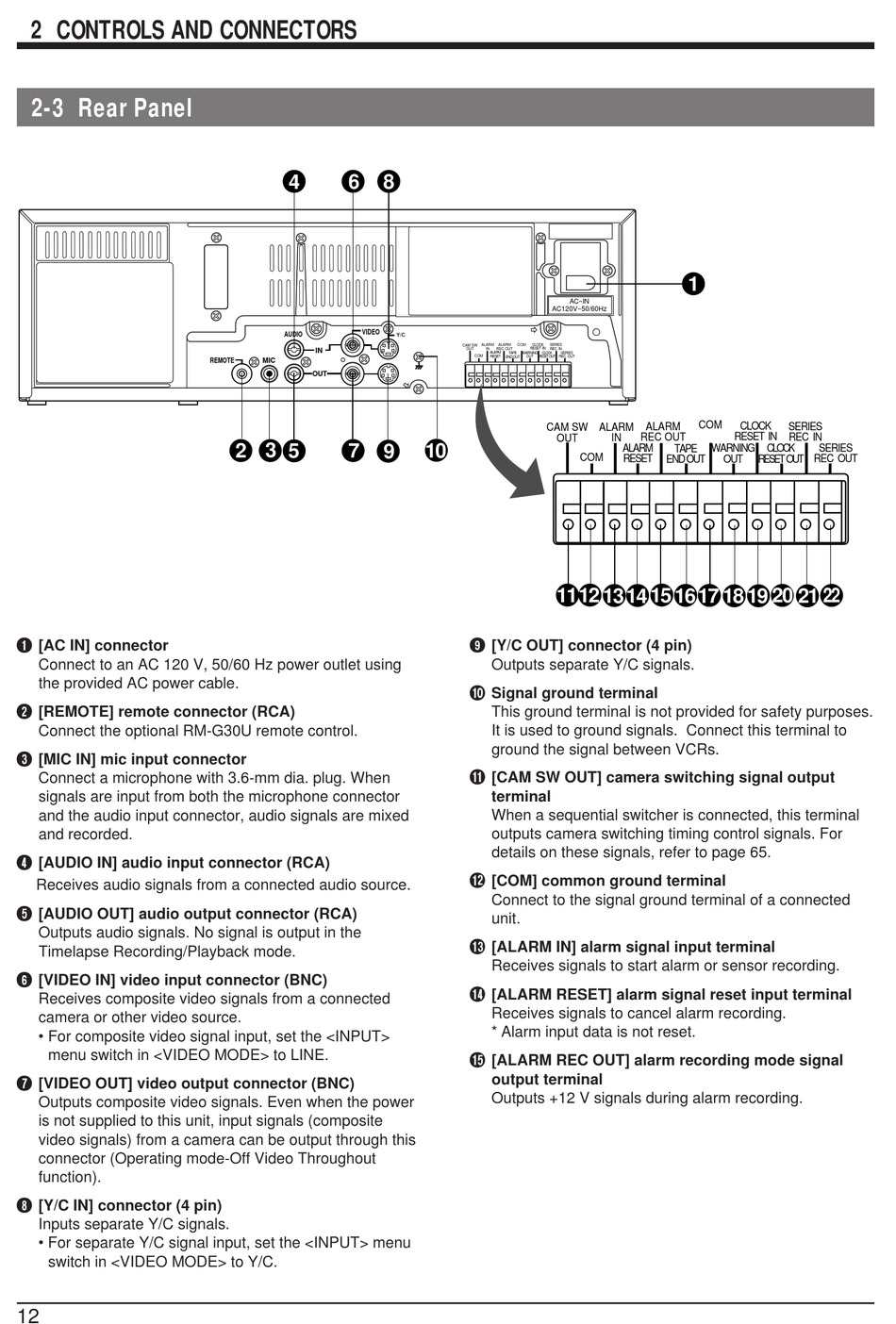

2 CONTROLS AND CONNECTORS
2-1 FRONT PANEL

2-3 Rear Panel

1
[AC IN] connector
Connect to an AC 120 V, 50/60 Hz power outlet using
the provided AC power cable.
2
[REMOTE] remote connector (RCA)
Connect the optional RM-G30U remote control.
3
[MIC IN] mic input connector
Connect a microphone with 3.6-mm dia. plug. When
signals are input from both the microphone connector
and the audio input connector, audio signals are mixed
and recorded.
4
[AUDIO IN] audio input connector (RCA)
Receives audio signals from a connected audio source.
5
[AUDIO OUT] audio output connector (RCA)
Outputs audio signals. No signal is output in the
Timelapse Recording/Playback mode.
6
[VIDEO IN] video input connector (BNC)
Receives composite video signals from a connected
camera or other video source.
• For composite video signal input, set the <INPUT>
menu switch in <VIDEO MODE> to LINE.
7
[VIDEO OUT] video output connector (BNC)
Outputs composite video signals. Even when the power
is not supplied to this unit, input signals (composite
video signals) from a camera can be output through this
connector (Operating mode-Off Video Throughout
function).
8
[Y/C IN] connector (4 pin)
Inputs separate Y/C signals.
• For separate Y/C signal input, set the <INPUT> menu
switch in <VIDEO MODE> to Y/C.
12
4 6
R S - 2 3 2 C
VIDEO
AUDIO
IN
REMOTE MIC
OUT
3 5
2 7
8
Y/C
ALARM COM CLOCK SERIES
CAM SW ALARM
RESET IN
OUT IN REC OUT REC IN
ALARM TAPE WARNING CLOCK
COM
RESET END OUT OUT RESET OUT
CAM SW
10
9
9
[Y/C OUT] connector (4 pin)
Outputs separate Y/C signals.
0
Signal ground terminal
This ground terminal is not provided for safety purposes.
It is used to ground signals. Connect this terminal to
ground the signal between VCRs.
!
[CAM SW OUT] camera switching signal output
terminal
When a sequential switcher is connected, this terminal
outputs camera switching timing control signals. For
details on these signals, refer to page 65.
@
[COM] common ground terminal
Connect to the signal ground terminal of a connected
unit.
#
[ALARM IN] alarm signal input terminal
Receives signals to start alarm or sensor recording.
$
[ALARM RESET] alarm signal reset input terminal
Receives signals to cancel alarm recording.
* Alarm input data is not reset.
%
[ALARM REC OUT] alarm recording mode signal
output terminal
Outputs +12 V signals during alarm recording.
1
AC~IN
AC120V~50/60Hz
SERIES
REC OUT
COM
ALARM
ALARM
REC OUT
OUT IN
ALARM TAPE WARNING
COM
RESET
END OUT
11 12 15
13 14 16 17
CLOCK SERIES
RESET IN
REC IN
CLOCK SERIES
OUT RESET OUT REC OUT
20 22
18 19 21
