INSTALLATION AND USER GUIDE
EN

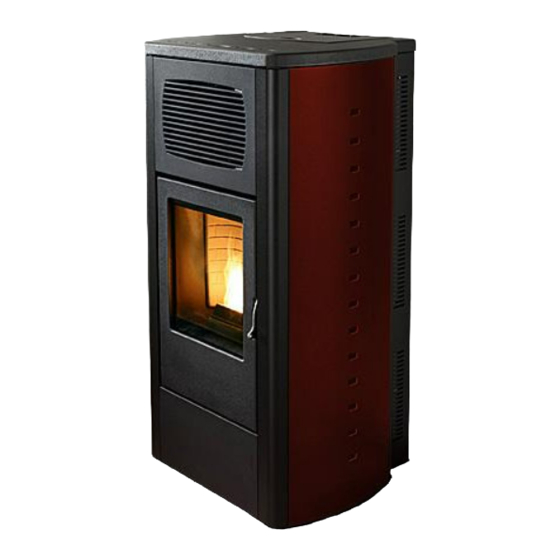

PELLET STOVE
YARI
MOD. AIR & MULTIAIR
Translation of original instructions
8901246200

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YARI MULTIAIR and is the answer not in the manual?

Questions and answers

Related Manuals for MCZ YARI MULTIAIR

Summary of Contents for MCZ YARI MULTIAIR

  • Page 1 INSTALLATION AND USER GUIDE PELLET STOVE YARI MOD. AIR & MULTIAIR Translation of original instructions 8901246200...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ......................1 1-WARNINGS AND WARRANTY CONDITIONS ..............2 2-INSTALLATION INSTRUCTIONS ..................5 3-INSTALLATION AND ASSEMBLY ................13 4 - REMOTE CONTROL AND CONTROL PANEL ..............24 5 - MODE AND SETTINGS ....................26 6-SAFETY DEVICES AND ALARMS ................35 7-MAINTENANCE AND CLEANING ................38 8-PROBLEMS/CAUSES/SOLUTIONS ................45 9-WIRING DIAGRAM ....................49...

  • Page 3: Introduction

    No part of this manual can be translated into another language and/or altered and/or reproduced, even partially, in another form, by mechanical or electronic means, photocopied, recorded or similar, without prior written approval from MCZ Group Spa. The company reserves the right to make changes to the product at any time without prior notice. The proprietary company reserves its rights according to the law.

  • Page 4: 1-Warnings And Warranty Conditions

    1-WARNINGS AND WARRANTY CONDITIONS SAFETY PRECAUTIONS •  Installation, electrical connection, functional verification and maintenance must only be performed by qualified or authorised personnel. •  Install the product in accordance with all the local and national laws and Standards applicable in the relative place, region or country.
  • Page 5 1-WARNINGS AND WARRANTY CONDITIONS •  The product is not a cooking appliance. •  Always keep the cover of the fuel hopper closed. •  Keep this instruction manual in a safe place as it must accompany the product throughout its working life. If it is sold or transferred to another user, always make sure that the manual accompanies the product.
  • Page 6 1-WARNINGS AND WARRANTY CONDITIONS INTERVENTION REQUEST The company declines all liability if the product and any other accessory is used incorrectly or altered without authorisation. All parts must be replaced with original spare parts. The request must be sent to the retailer who will forward it to the Technical Assistance Service. SPARE PARTS Only use original spare parts.

  • Page 7: 2-Installation Instructions

    2-INSTALLATION INSTRUCTIONS The requirements in this chapter refer to the regulations of the Italian installation Standard UNI 10683. In any case, always comply with the regulations in force in the country of installation PELLETS Wood pellets are manufactured by hot-extruding compressed sawdust which is produced during the processing of natural dried wood (without paints).
  • Page 8 2-INSTALLATION INSTRUCTIONS PRECAUTIONS REGARDING INSTALLATION IMPORTANT! Product installation and assembly must be carried out by qualified personnel. The product must be installed in a suitable place for it to be regularly opened and routine maintenance to be performed. The site must be: • ...
  • Page 9 2-INSTALLATION INSTRUCTIONS POSITIONING AND RESTRICTIONS In the case of simultaneous installation with other heating appliances, provide appropriate air inlets for each one (according to the instructions of each product). The product cannot be installed (except for sealed or closed operation appliances with external ducted combustion air intake): • ...
  • Page 10 2-INSTALLATION INSTRUCTIONS CONNECTION OF THE SMOKE EXHAUST DUCT When making the hole for the passage of the smoke discharge pipe, one must take into account the possible presence of flammable materials. If the hole must be made through a wooden wall or thermolabile material, the INSTALLER MUST first of all use the appropriate wall fitting (minimum diameter 13 cm) and suitably insulate the pipe of the product that passes through it using adequate insulating materials (1.3 - 5 cm thick with minimum thermal conductivity 0.07 W/m°K).
  • Page 11 2-INSTALLATION INSTRUCTIONS Always use pipes and fittings with appropriate seals that guarantee tightness. It must be possible to inspect all sections of the flue duct and they must be removable for periodic internal cleaning (T-fitting with inspection hole). Position the product considering all the above requirements and instructions. IMPORTANT! The following conditions must be complied with when connecting the appliance to the chimney: • ...
  • Page 12 2-INSTALLATION INSTRUCTIONS CONNECTION TO THE EXTERNAL AIR INLET It is essential for the room where the product is installed to be adequately ventilated in order to guarantee sufficient air for proper combustion in the appliance. This can be set up using suitable ventilation openings in the room itself or in an interconnected room through a permanent opening between the rooms.
  • Page 13 2-INSTALLATION INSTRUCTIONS CONNECTIONS CONNECTION TO THE CHIMNEY CONNECTION TO AN CONNECTION TO THE CHIMNEY EXTERNAL DUCT WITH AN INSULATED OR DOUBLE-WALL PIPE The chimney's internal dimensions must The minimum internal dimensions of the The connection between the product and not exceed 20x20 cm or 20 cm diameter; external duct must be 10x10 cm or 10 cm the chimney or the smoke duct must not in the event of bigger sizes or bad chimney...
  • Page 14 2-INSTALLATION INSTRUCTIONS OPERATING PROBLEMS RELATED TO DRAUGHT DEFECTS IN THE CHIMNEY Among all the weather and geographical conditions that affect chimney operation (rain, fog, snow, altitude a.s.l., exposure to sunlight, orientation to the cardinal points, etc.), the wind is certainly the most determinant. In fact, besides the thermal depression caused by the difference in temperature between inside and outside the chimney, there is another type of depression (or overpressure): dynamic pressure caused by the wind.

  • Page 15: 3-Installation And Assembly

    3-INSTALLATION AND ASSEMBLY DRAWINGS AND CHARACTERISTICS YARI AIR DIMENSIONS (in mm) Technical Dept. - All rights reserved - Reproduction is prohibited...
  • Page 16 3-INSTALLATION AND ASSEMBLY YARI MULTIAIR DIMENSIONS (in mm)
  • Page 17 3-INSTALLATION AND ASSEMBLY TECHNICAL CHARACTERISTICS YARI AIR YARI MULTIAIR Nominal output power 9.5 kw (8170 kcal/h) 11 kw (9,640 kcal/h) Minimal output power 2.4 kw (2,064 kcal/h) 2.4 kw (2,064 kcal/h) Efficiency at Max 91,7% 90,2% Efficiency at Min 94,1%...
  • Page 18 3-INSTALLATION AND ASSEMBLY PREPARATION AND UNPACKING The YARI stove is delivered in a single package containing both the structure and the steel sides with the profiles (fig.1): FIGURE 1 - FLAT STOVE PACKAGE Open the packaging, take out the four screws that hold the product onto the pallet (fig.2); two on the right side and two on the left side of the stove.
  • Page 19 3-INSTALLATION AND ASSEMBLY Position the product without its cladding and connect it to the chimney. Once the connections are complete, assemble the cladding (ceramic or serpentine sides). If the product must be connected to an exhaust pipe that goes through the rear wall (to enter the chimney), make sure not to force it in. Adjust the 4 feet (J) to level the stove for the smoke exhaust and the pipe to be coaxial.
  • Page 20 3-INSTALLATION AND ASSEMBLY ASSEMBLING THE CLADDING Assembly of profiles to insert steel sides Remove, on the upper part, the cast iron top (A). Take the side (B) (make sure it goes into the part under the plugs (F) and secure it to the upper sheet metal of the stove with the bracket (C) and four screws (D).
  • Page 21 3-INSTALLATION AND ASSEMBLY CONNECTING THE HOT AIR DUCTING Once the stove is set in place, the hot air pipes can be installed. For the first phase, it is necessary to select the air volume you wish have come out of the front part and rear of the stove. This simple operation is carried out by using the mechanical lever located under the cover of the tank (Figure 3).
  • Page 22 3-INSTALLATION AND ASSEMBLY ELECTRICAL CONNECTION First connect the power cable to the back of the product and then to a wall socket. The main switch must only be activated when the stove is being used; otherwise, it is advisable to keep it off. It is recommended to disconnect the power cable when the product is not used.
  • Page 23 3-INSTALLATION AND ASSEMBLY BEFORE START-UP GENERAL PRECAUTIONS Remove all components that could burn from the brazier and glass (manual, various adhesive labels and any polystyrene). Check that the brazier is positioned correctly and rests properly on the base. The first start-up may not be successful as the feed screw is empty and does not always manage to load the required amount of pellets in the brazier in time for the fire to be regularly ignited.
  • Page 24 3-INSTALLATION AND ASSEMBLY It is good practice to guarantee effective ventilation in the room during the initial start-up, as the stove will emit some smoke and smell of paint. Do not stand close to the product and air the room. The smoke and smell of paint will disappear after about an hour of operation, however, remember they are not harmful in any case.
  • Page 25 3-INSTALLATION AND ASSEMBLY LOADING THE PELLETS Fuel is loaded from the upper part of the stove by opening the door. Pour the pellets in the hopper. When empty, it will hold about one 15 kg sack. To ease the procedure carry out the operation in two steps: • ...

  • Page 26: Remote Control And Control Panel

    4 - REMOTE CONTROL AND CONTROL PANEL GENERAL SPECIFICATIONS OF THE REMOTE CONTROL The remote control runs on a 12V 23 A Alkaline battery and it is good practice, during extended periods of remote control downtime, to take the battery out. How to change the battery: Using a flat tip screwdriver, put the tip in the slot (X) on the back of the remote control.
  • Page 27 4 - REMOTE CONTROL AND CONTROL PANEL CONTROL PANEL OPERATION BUTTONS INDICATORS 1. Decreases the temperature set / menu navigation-changes Enable/disable chrono 2. Increases the temperature set / menu navigation-changes Spark plug in operation 3. Set stove power Cycle where the feed screw loads the pellets 4.

  • Page 28: Mode And Settings

    5 - MODE AND SETTINGS INITIAL SETTINGS SETTING THE TIME Press the 6 MENU key twice; the words IMPOSTA GIORNO (SET DAY) will appear and it will be possible to set the day of the week using keys 1 or 2; press the 6 MENU key again and the word ORE (TIME) will appear, and it will be possible to set the current time using keys 1 or 2 again, to decrease or increase the displayed value.
  • Page 29 In this case there will ALWAYS be operating problems. Request assistance from specialized personnel or advice from MCZ technicians.
  • Page 30 5 - MODE AND SETTINGS RECIPE SELECTION If the flame is not compliant with the requirements analysed above it is necessary to set the stove in the most suitable manner based on the type of pellets being used. Therefore, excessive fuel consumption is avoided, the intended heating capacity is guaranteed and the product integrity is safeguarded. Based on the aforementioned qualities (flame shape/colour/quality) and the user's experience (brazier too empty or full) it is possible to increase or decrease pellet loading, with respect to the factory setting (0) from the menu.
  • Page 31 5 - MODE AND SETTINGS Let us look at the differences between MANUAL and AUTOMATIC in detail: •  MANUAL mode allows you to adjust the flame power exclusively, between power 1 and power 5, ignoring any ambient temperature reading. This mode is reported by the signal appearing on the ...
  • Page 32 5 - MODE AND SETTINGS SWITCHING FROM MANUAL TO AUTOMATIC MODE To switch from MANUAL to AUTOMATIC operation simply press button 1 twice (consecutively). The mode change will appear on the display, the light on the symbol will switch off and it will be necessary to set the required temperature. By default, as soon as you switch from manual to automatic mode, the SET TEMPERATURE is 40°C.
  • Page 33 5 - MODE AND SETTINGS •  unscrew the protective cap from the probe •  Pass the two wires through the protective cap and thread them into the hole along with the probe. •  Pull the two wires to connect them to the board, on clamp 13 of the electronic board. • ...
  • Page 34 5 - MODE AND SETTINGS CHRONO MODE This operating mode, reported by the light on the  symbol on the display, lets you programme stove ignition or switch off in automatic mode. The basic settings of the CHRONO mode are: • ...
  • Page 35 5 - MODE AND SETTINGS Enabling chrono Below is an explanation of how to ENABLE THE CHRONO FUNCTION: press button 6 MENU followed by button 1 to access the “SET CRONO” screen, followed by 6 MENU again to enter the first chrono entry “ATTIVA CRONO”...
  • Page 36 5 - MODE AND SETTINGS •  We will now select the day we wish the set times to be applied: select the day using button 2. In this case I will stop at ‘MON’ (Monday) and using button 1 I will set it at ‘ON’; I will press button 2 again and set day ‘TUE’ (Tuesday) at ‘OFF’ using button 1; I will press button 2 again and, for the third day, set ‘WED’...

  • Page 37: 6-Safety Devices And Alarms

    6-SAFETY DEVICES AND ALARMS SAFETY DEVICES The product is supplied with the following safety devices: PRESSURE SWITCH Monitors the negative pressure in the smoke duct. It is designed to shut down the pellets feed screw in the event of an obstructed flue or significant back-pressure.
  • Page 38 6-SAFETY DEVICES AND ALARMS ALARM ALERTS If an operating anomaly occurs, the product enters the shutdown phase due to an alarm and informs the user regarding the type of fault by means of a message on the control panel display. ALLARME FUOCO The following table describes the possible alarms indicated by the product and possible solutions to fix the problem.
  • Page 39 6-SAFETY DEVICES AND ALARMS Other signals on the display The following table summarizes that messages that most commonly appear on the display panel. MESSAGE ON THE DISPLAY PANEL MEANING The stove is off. MANUAL The stove is in manual mode. The stove is on.

  • Page 40: 7-Maintenance And Cleaning

    7-MAINTENANCE AND CLEANING DAILY OR WEEKLY CLEANING PERFORMED BY THE USER BEFORE EACH START-UP Clean away the ash and any deposits in brazier “A” that could clog the air passage holes. If the pellets in the hopper finish, unburned pellets may accumulate in the brazier. Always empty the residue in the brazier before starting- EXAMPLE OF A CLEAN BRAZIER EXAMPLE OF A DIRTY BRAZIER REMEMBER THAT ONLY A CORRECTLY POSITIONED AND CLEAN BRAZIER CAN GUARANTEE START-UP AND OPTIMAL...
  • Page 41 7-MAINTENANCE AND CLEANING CLEANING THE GLASS It is recommended to clean the ceramic glass with a dry brush, or if it is very dirty, spray a little specific detergent and clean with a cloth. ATTENTION! Do not use abrasive products and do not spray the glass spray cleaner on the painted parts or the door gaskets (fibre- glass cord).
  • Page 42 It is good practice to guarantee effective ventilation in the room while cleaning the product. CLEANING THE EXCHANGER: Yari Air upper stove compartment cleaning When the stove is cold, take off cast iron top “A”, dismantle the sides as shown in the relative paragraphs of the manual. Slide off central cast iron top “D”...
  • Page 43 7-MAINTENANCE AND CLEANING Yari Multiair upper stove compartment cleaning When the stove is cold, take off cast iron top “A”, dismantle the sides as shown in the relative paragraphs of the manual. Unscrew the screws that lock down the supports for top “B” and slide out cast iron grill “D”. Lift the cover of tank “C” and remove the screws that lock it onto the structure.
  • Page 44 7-MAINTENANCE AND CLEANING YARI AIR AND MULTIAIR BOTTOM STOVE COMPARTMENT CLEANING Take out ash pan “S”, loosen the screws and remove plug “E” and using the nozzle of a vacuum cleaner, remove any ash and soot that may have built up in exchanger “H”. Remove the brazier “A” and clean it every 2/3 days, as described above. Replace gasket “F” located under...
  • Page 45 7-MAINTENANCE AND CLEANING CLEANING THE SMOKE DUCT AND GENERAL CHECKS: Clean the smoke exhaust, especially around the T-fittings, curves and any horizontal sections. For information on cleaning the flue, contact a chimney sweeper. Check the tightness of the ceramic fibre gaskets on the door of the product. If necessary, order new replacement gaskets from the retailer or contact an authorized service centre to carry out this task.
  • Page 46 7-MAINTENANCE AND CLEANING CHECKING THE INTERNAL COMPONENTS ATTENTION! The internal electromechanical components must only be checked by qualified personnel whose technical expertise includes combustion and electricity. It is recommended to perform this routine maintenance annually (with a scheduled service contract), which focuses on a visual and functional verification of the internal components.

  • Page 47: 8-Problems/Causes/Solutions

    8-PROBLEMS/CAUSES/SOLUTIONS ATTENTION! All repairs must only be carried out by a specialised technician, with the product switched off and the plug disconnected. If the product is NOT used as described in this manual, the manufacturer declines all liability for any damage caused to persons and property.
  • Page 48 8-PROBLEMS/CAUSES/SOLUTIONS ANOMALY POSSIBLE CAUSES SOLUTIONS Safety alarm. Excessive pellet load. Wait for the stove to cool down, re-ignite it and reduce pellet loading by following the instructions provided in the dedicated paragraph herein. Room fan power too low. Wait for the stove to cool down, re-ignite it and increase the fan power using knob A.
  • Page 49 8-PROBLEMS/CAUSES/SOLUTIONS The stove reports that the smoke Excessive pellet load. Reduce the pellet load by following the temperature is too high or the smoke instruction provided herein. probe is faulty. Unsuitable pellets. Empty the hopper from the unsuitable pellets and replace them with those recommended by the manufacturer.
  • Page 50 8-PROBLEMS/CAUSES/SOLUTIONS The room fan does not stop. Stove cooling in progress. Wait for the structure to cool down. Faulty temperature probe. Replace the faulty component. The room fan does not work. The temperature has not reached the Wait for the structure to warm up. minimum start-up threshold.

  • Page 51: 9-Wiring Diagram

    9-WIRING DIAGRAM MOTHERBOARD WIRING KEY MOTHERBOARD WIRING KEY CONTROL PANEL CONTACT THERMOSTAT ROOM PROBE 10. AIR FAN RED + BLUE SMOKE PROBE 11. WHITE/RED/BLACK OR BLUE SMOKE EXPULSION FAN REV FUSE CONTROL SWITCH 12. CHRONOTHERMOSTAT SPARK PLUG 13. ROOM THERMOSTAT SMOKE EXPULSION FAN 14.
