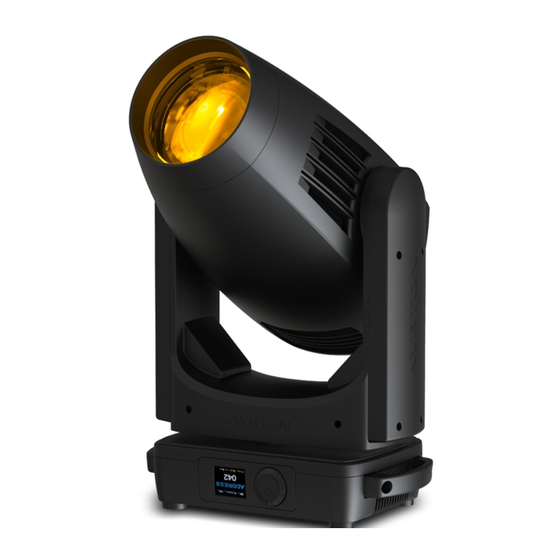

Ayrton Levante TC Manual
  1. Manuals
  2. Brands
  3. Ayrton Manuals
  4. Lighting Equipment
  5. Levante TC
  6. Manual

Ayrton Levante TC Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Manuel d'utilisation
KEEP THIS MANUAL FOR FUTURE NEEDS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Levante TC and is the answer not in the manual?

Questions and answers

Related Manuals for Ayrton Levante TC

Summary of Contents for Ayrton Levante TC

  • Page 1 Manuel d’utilisation KEEP THIS MANUAL FOR FUTURE NEEDS...

  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS 2. FEATURES 3. FIXTURE OVERVIEW 4. DIMENSIONAL DRAWINGS 5. INSTALLATION INSTRUCTIONS 6. DMX-512 CONTROL CONNECTION 7. DMX-512 CONNECTION WITH DMX TERMINATOR 8. DEVICE DMX START ADDRESS SELECTION 9. DISPLAY 10. DMX PROTOCOL 11. ERROR MESSAGES 12. CLEANING AND MAINTENANCE...

  • Page 3: Safety Instructions

    1. SAFETY INSTRUCTIONS 1.1. IMPORTANT SAFETY WARNING This device has left the factory in perfect condition.In order to maintain this condition and to ensure safe operation it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. In order to install operate and maintain the lighting fixture safely and correctly we suggest that the installation and operation be carried out by qualified technicians and these instructions be carefully followed.
  • Page 4 This device falls under protection-class I.Therefore it is essential that the device be earthed. If eitherlenses or displayare damaged (damage may include cracks or gashes in the material) they must be replaced. Electrical connections such as replacing the power plug must be performed by a qualified person.

  • Page 5: Features

    AC100-240V~ 50/60Hz Power Consumption 550W LIGHT SOURCE LED White LED 330W 7000K ±400K Color Temperature high CRI @ LEVANTE TC White LED 330W 8000±500K Color Temperature @ LEVANTE S Extremely long Life >20,000H MOVEMENT Pan movement 540º /630ºOptional (16 bit) Tilt movement 270º...
  • Page 6 SOFTWARE 8 pre-installed programs available upon selection Upgrades fast and convenient through DMX cable with DMX-512 controller Reset DMX address remote lamp control reset can all be done by the DMX controller Running time of fixture on display for reference OTHER SPEC Input signal isolation guarantees stable signal transmission without interference Advanced RDM function...

  • Page 7: Fixture Overview

    3. FIXTURE OVERVIEW 1) LED Assembly 2) Display 3) Rotary knob 4) Handle 5) Lock button 6) DMX Out 7) DMX In 8) Power Out 9) Power In...

  • Page 8: Dimensional Drawings

    4. DIMENSIONAL DRAWINGS 4.1. Fixture Dimension...
  • Page 9 4.2. Gobo Filter Dimension 4.3. Color Filter Dimension...

  • Page 10: Installation Instructions

    5. INSTALLATION INSTRUCTIONS 5.1. Rigging the device CAUTION! PLEASE CONSIDER THE RESPECTIVE NATIONAL NORMS DURINGINSTALLATION. THE INSTALLATION MUST ONLY BE CARRIED OUT BY A QUALIFIED PERSON. The applicable temperature for the lighting is between -10°C to 45°C. Do not use the lighting under or above the temperature.
  • Page 11 5.2. Rigging using the omega brackets Fix the clamp to the bracket by tightening the M12 nut and boltto the bracket through the 13 hole in the middle of the bracket. Insert the quick-lock fasteners of the first Omega holder into the respective holes on the bottom of the device.Tighten the quick-lock fasteners fully clockwise.
  • Page 12 5.3. RIGGING DRAWINGS Be sure this fixture is kept at least 0.1m away from any flammable materials (decoration etc.). Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails. Important Overhead rigging requires extensive experience including (but not limited to)

  • Page 13: Dmx-512 Control Connection

    6. DMX-512 CONTROL CONNECTION Connect the provided male side of the XLR cable to the femaleXLR output of your controller and the female side of the XLR cable to the male XLR input of the device.You can connect multipledevices together in a serial fashion.The cable needed should be two core screened cable with XLR input and output connectors.Please refer to the diagram below.

  • Page 14: Device Dmx Start Address Selection

    8. DEVICE DMX START ADDRESS SELECTION All fixtures should be given a DMX starting address when using a DMX signal so that the correct fixture responds to the correct control signals.This digital starting address is the channel number from which the fixture starts to “ listen” to the digital control information sent out from the DMX controller.The allocation of this starting address is achieved by setting the correct address number on the display located on the base of the device.
  • Page 15 CAUTION! THE BATTERY MUST BE A LI-ION RECHARGEABLE BATTERY, THE SPECIFICATION IS AS FOLLOWING: To install the battery for the first time please make sure the unit is not connected to AC power. Install the battery in the battery holder then remove the battery and install it back. This procedure must be done only for the first battery installation.
  • Page 16 DispFlash ON/OFF DispFlash Signal Select WDMX WDMX Temp. C/F Celsius Temperature switch Fahrenheit between Initial Pos. PAN =XXX Initial effect position Wireless DMX Activate WDMX Activate WDMX Act&Data Out Act&Data Out Rest WDMX Rest WDMX Dim Curve Square Law Dim Curve Linear Refresh Select 1.2K...
  • Page 17 ~ Edit Scene 250 --Fade Time-- manual scenes edit --Secne Time-- Input By Outside Scenes Input XX~XX Scenes Input 9.1. Address 9.1.1. Set DMX Address With this function you can adjust the desired DMX-address via the Display. 1. Double click to enter the menu. 2.
  • Page 18 rotary knob to select“Close” 6. Long press to exit the menu. Pan Reverse With this function you can reverse the Pan-movement. 1. Double click to enter the menu. 2. Turn the rotary knob clockwise then display“Options”. turn the rotary knob to select “Status”. 3.
  • Page 19 4. Double click to enter“Status”menu The display will show“Init PAN”. The display will show “ON 5. Double click to enter“Init PAN Turn the rotary knob to select“OFF”. 6. Long press to exit the menu. Init TILT 1. Double click to enter the menu. 2.
  • Page 20 knob to select“ON”. 6 Long press to exit the menu. Clr LED Timer This function allows you to clear the led time 1 Double click to enter the menu. 2 Turn the rotary knob clockwise then display“Options”. 3 Double click to enter“Options turn the rotary knob to select“Service PIN”.
  • Page 21 With this function you can activate the automatic key lock function.If this function is activated the keys will be locked automatically after exiting the edit mode for 15 seconds.keeping press the <MODE/ESC>key for 3seconds if you do not need this function.
  • Page 22 5 Long press to exit the menu. 9.3.8. Wireless DMX From factory this projector is prepared for wireless data transmission (W-DMX).If you wish to de-activate W-DMX control you can select the function “De-activate WDMX”by turning the encoder.With the function“rest you can log out the projector from the wireless sender. 1.
  • Page 23 Set To Slave With this function, you can define the device as slave. 1 Double click to enter the menu. 2 Turn the rotary knob clockwise then display“Options”. 3 Double click to enter“Options turn the rotary knob to select“Trigger”. 4 Double click to enter“Trigger”menu The display will show“Set To Slave”. 5 Double click to enter “Set To Slave The display will show “Slave1 “Slave2...
  • Page 24 With this function you can display the running time of the device.The display shows “XXXX “XXXX”stands for the number of hours. 1. Double click to enter the menu. 2. Turn the rotary knob clockwise then display“Info”. 3. Double click to enter“Info turn the rotary knob to select“Time Info.”.
  • Page 25 knob to select“ON”. 6. Long press to exit the menu. 9.4.2. Temp.Info HeadTemp. With this function you can display the temperature on the display board of the base (near CMY-filter) in Celsius. 1. Double click to enter the menu. 2. Turn the rotary knob clockwise then display“Info”. 3.
  • Page 26 3 Double click to enter“Test turn the rotary knob to select“Test Channel”. Double click to enter “Test Channel The display will show “Pan Turn the rotary knob to select other channel. Long press to exit the menu. 9.5.3. Manual Control When set to Manual Mode fixture will be back to factory settings.If want to adjust brightness can adjust by shutter and dimming channel channel value is 0-255.Other functions can be set according to user's real need.

  • Page 27: Dmx Protocol

    5 Enter the menu of 8-2 Edit Program---Edit Program.Edit the program’s connection connect the scene in order 6 The editor of the scene there are as many as 250 scenario editors and every scene can have a program connection of 10. Note: Part 2 Part3 repeat in accordance with the Part1’s repeat.For example When Part 1 uses Program 2 Part 2 uses Program 4 Part 3 uses Program 6 Assume Program 2...
  • Page 28 236-245 blackout by all wheel changing 246-255 no function Shutter, strobe: 0-10 Shutter closed 11-20 No function (shutter open) 21-117 Strobe effect slow to fast 118-126 No function (shutter open) 127-180 Pulse-effect in sequences 181-191 No function (shutter open) 192-245 Random strobe effect slow to fast 246-255 No function (shutter open)
  • Page 29 24-27 Color 6(Light Blue) 28-31 Color 7(Red) 32-127 Color indexing 128-189 Forwards rainbow effect from fast to slow 190-193 No rotation 194-255 Backwards rainbow effect from slow to fast Color Wheel Fine : 0-255 Color Wheel colour change to any position Fine Cyan Color 0-255 Cyan (0-white, 255-100% Cyan)
  • Page 30 Rotating gobo index,rotating gobo rotation 1: 0-127 Gobo indexing 128-189 Forwards gobo rotation from fast to slow 190-193 No rotation 194-255 Backwards gobo rotation from slow to fast Rotating gobo indexing Fine 1: 0-255 Fine indexing Iris: 0-191 Max. diameter to Min.diameter 192-223 Pulse closing fast to slow 224-255...
  • Page 31 0-255 Open to Close Blade 4 B Fine: 0-255 Open to Close Fine All Blade Rotation: 0-255 All Blade Rotation All Blade Rotation Fine: 0-255 All Blade Rotation Fine CONTROL, reset, internal programs: Unused Display Off 10-14 Display On 15-19 Display Invert Off 20-24 Display Invert On...

  • Page 32: Error Messages

    11. ERROR MESSAGES When you turn on the device, it will first perform areset.The display may show“Err channel is XX”should there be problems with one or more functions.“XX” stands for channel 1 2 3 4 5 6 etc whose sensor has encountered a problem.For example when the display shows“Err channel is Pan movement it means there is an error on channel 1.If there are errors on channel 1 channel 3 channel 6 at the same time you may see the error message “Err channel is Pan...
  • Page 33 Magenta Color wheel Er (Magenta Color wheel- error) This message will appear after the reset of the fixture if the head’s magnetic-indexing circuit malfunctions (sensor failed or magnet missing) or the stepper motor is defective (or its driving IC on the main PCB).The CMY -movement is not located in the default position after the reset.
  • Page 34 BLADE 2 wheel Er (BLADE 2 wheel - error) This message will appear after the reset of the fixture if the head’s magnetic-indexing circuit malfunctions (sensor failed or magnet missing) or the steppermotor is defective (or its driving IC on the main PCB).The BLADE 2 - movement is not located in the default position after the reset.

  • Page 35: Cleaning And Maintenance

    12. CLEANING AND MAINTENANCE The following points have to be considered during inspection 1) All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded. 2) There must not be any deformations to the housing lenses rigging and installation points (ceiling suspension trussing).
