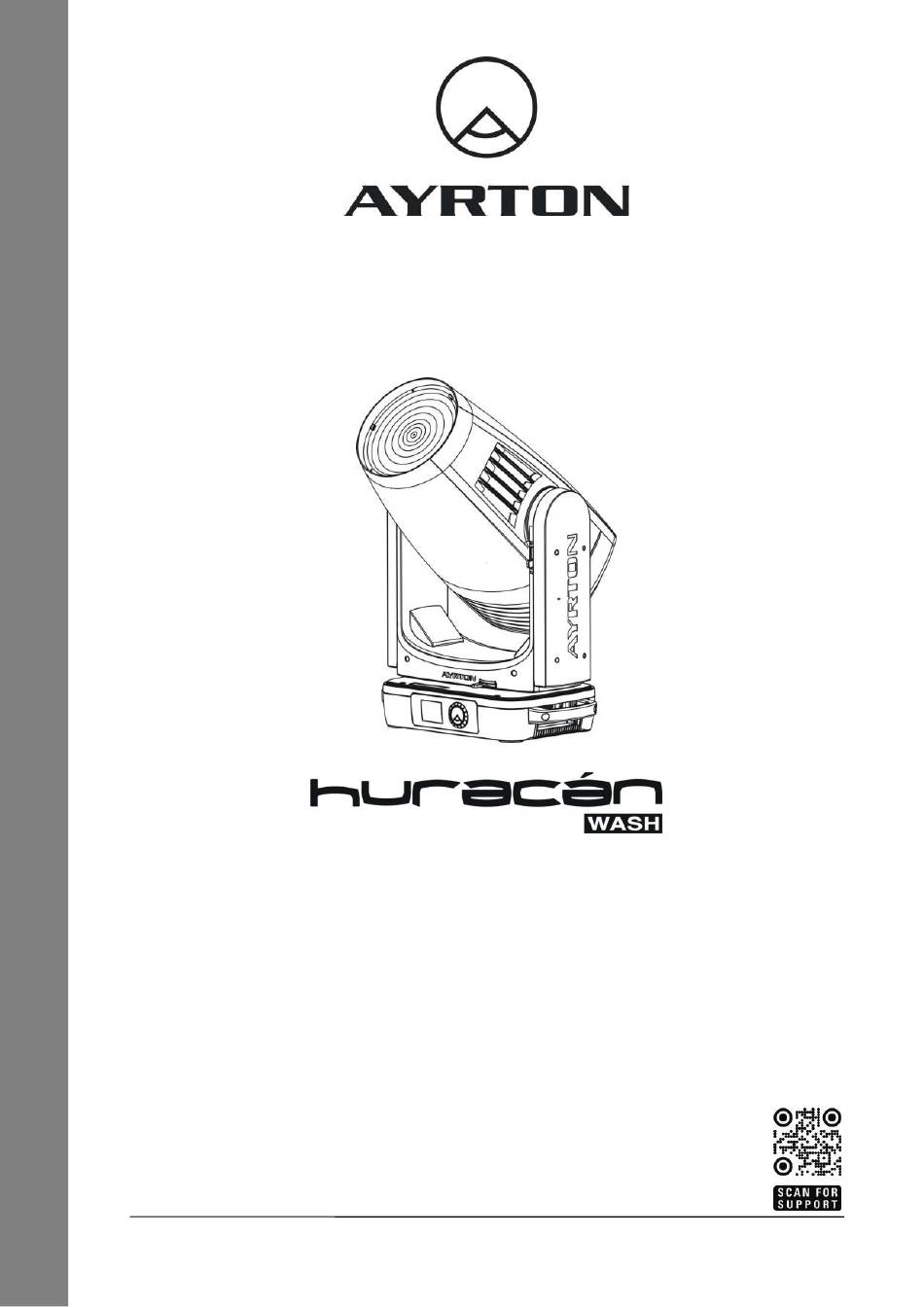

- Page 1 Digital Lighting User Manual HURACAN WASH: (EN - version NR) www.ayrton.eu...
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS 2. FEATURES 3. FIXTURE OVERVIEW 4. DRAWINGS 5. INSTALLATION INSTRUCTIONS 6. DMX-512 CONTROL CONNECTION 7. DMX-512 CONNECTION WITH DMX TERMINATOR 8. DEVICE DMX START ADDRESS SELECTION 9. OPERTING INSTRUCTIONS OF THE INTERNAL DMX WIRELESS SYSTEM 10. DISPLAY 11. -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS 1.1. IMPORTANT SAFETY WARNINGS This device has left the factory in perfect condition. In order to maintain this condition and to ensure safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. In order to install, operate and maintain the lighting fixture safely and correctly we suggest that the installation and operation be carried out by qualified technicians and these instructions be carefully followed. -
Page 4: Features
If the external flexible power cord of this device is damaged, it shall be exclusively replaced by the manufacturer or their service agent or a similar qualified person in order to avoid injury. When the device is not in use or before performing maintenance, always disconnect the ... -
Page 5: Fixture Overview
COLORS: CMY+CTO+CTB+CTP color mixing, uniform, linear and speed can be adjustable 1 Color wheel: 6 dichroic filters + open, indexable GOBOS: Rotating gobo wheel: 7 interchangeable, rotating and indexable gobo + open “Slot in & out”gobo wheel system FEATURES: 3 Control channel modes: 39/37/61 channels ... -
Page 6: Installation Instructions
5. INSTALLATION INSTRUCTIONS 5.1. Rigging the device CAUTION! PLEASE CONSIDER THE RESPECTIVE NATIONAL NORMS DURING THE INSTALLATION. THE INSTALLATION MUST ONLY BE CARRIED OUT BY A QUALIFIED PERSON. The installation of the effect has to be built and constructed in a way that it can hold 10 ... -
Page 7: Dmx-512 Control Connection
Pull the safety cable through the holes on the bottom of the base and over the trussing system or another suitable rigging point. Insert the end into the carabiner and tighten the safety screw. 5.3. RIGGING DRAWINGS Important: Overhead rigging requires extensive experience, including (but not limited to) calculating working load limits, specifying installation/ rigging materials, and periodic safety inspection of all installation material as well as the device. -
Page 8: Dmx-512 Connection With Dmx Terminator
7. DMX-512 CONNECTION WITH DMX TERMINATOR For installations where the DMX cable has to run over a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal caused by electrical noise. -
Page 9: Dmx Protocol
CAUTION! THE BATTERY MUST BE A LI-ION RECHARGEABLE BATTERY, SPECIFICATION IS AS FOLLOWING: 11. DMX PROTOCOL Scan the QR code on the cover page to download the DMX CHART. 12. ERROR MESSAGES Scan the QR code on the cover page to download the MANUAL to check. 13. - Page 12 Digital Lighting 2 Rue de Vitruve - 91140 - Villebon-sur-Yvette - France...
