- Page 1 S140 / S180 INVERTER DC MMA ARC WELDER MANUAL YEAR LIMITED WARRANTY...

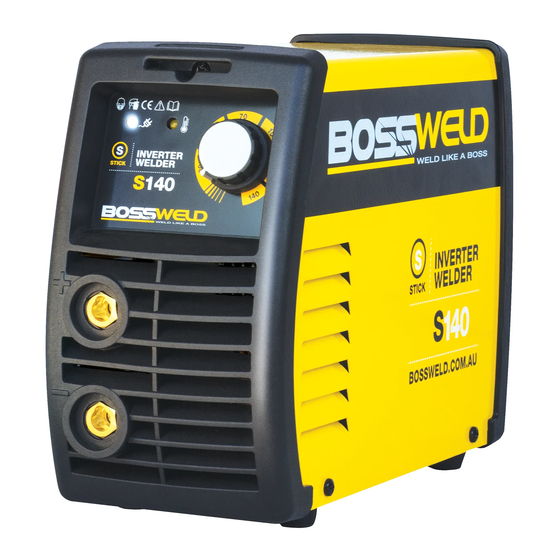

- Page 2 The BOSSWELD S140 / S180 are the latest in IGBT MMA Stick Electrode Welder technology, this very lightweight welding machine, is easy to use, generating a very smooth and stable output, ideal for welding jobs around the home, farm, workshop or on site.
-
Page 3: Table Of Contents
CONTENTS PAGE WARRANTY BOX CONTENTS WARNINGS MACHINE CARE / SAFETY INSTRUCTIONS WORK AREA SAFETY MAINTENANCE & DISPOSAL / DUTY CYCLE FRONT & REAR PANEL LAYOUT STICK / MMA WELDING SETUP GENERAL MMA WELDING 12-13 TIG WELDING SETUP 14-16 TIG TORCH AND REGULATOR NOT SUPPLIED GENERAL TIG WELDING TUNGSTEN PREPARATION MACHINE CONSUMABLES... -
Page 4: Warranty
7. Use on Incorrect voltage or non authorised electrical connections and plugs 8. Use of non standard parts 9. Repair, case opening, tampering with, modifications to any part of the item by non authorised BOSSWELD repairers. This warranty covers the machine only and does not include Torches, Leads, Earth Clamps, Electrode holders, Plasma Torches, Tig Torches and any of the parts on those items unless there is a manufacturing fault. -
Page 5: Box Contents
BOSSWELD S140 / S180 Inverter DC MMA Arc Welder Box Contents BOSSWELD S140 or S180 Inverter DC MMA Arc Welder Electrode Holder Lead Welding Earth Lead Carry Strap Cable / Lead tidy Owners Manual (not shown) -
Page 6: Warnings
WARNING The device and packaging material are not toys! Children must not be allowed to play with the machine and its accessories. Plastic parts and packaging are choking risks for children. • Open the packaging and remove the welder carefully. •... -
Page 7: Machine Care / Safety Instructions
MACHINE CARE / SAFETY Keep the welding cables, earth clamp and electrode holder in good condition. Failure to do this can result in poor welding quality, which could be dangerous in structural situations. Prior to use, check for breakage of parts and any other conditions that may affect operation of the welder. Any part of the welder that is damaged should be carefully checked to determine whether it will perform its intended function whilst being safe for the operator. -
Page 8: Work Area Safety
WORK AREA Ensure a clear, well lit work area with unrestricted movement for the operator. The work area should be well ventilated, as welding emits fumes which can be dangerous. Always maintain easy access to the ON/OFF switch of the welder, and the electrical mains supply. Do not expose the welder to rain and do not operate in damp or wet locations Where welding must be undertaken in environments with increased risk of electric shock, confined spaces or in the presence of flammable or explosive materials, it is important that the environment be evaluated in advance... -
Page 9: Maintenance & Disposal / Duty Cycle
DISPOSAL DISPOSING OF THE PACKAGING Recycling packaging reduces the need for landfill and raw materials. Reuse of the recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. DISPOSING OF THE WELDER Welders that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. -
Page 10: Front & Rear Panel Layout
3. Current Adjustment Knob 4. Positive Output Connection Socket 5. Negative Output Connection Socket REAR PANEL 6. Mains Power Switch 10Amp -S140 Mains Power Switch 15Amp -S140 7. 240V AC Mains Power Cord 8. Cooling Fan Note: Warranty will be void if... -
Page 11: Stick / Mma Welding Setup
2. Connect earth Clamp to the terminal Plug the machine 10Amp (S140) or 15Amp (S180) Connect earth clamp firmly to work-piece input power lead into the wall socket, ensuring ensuring that the clamp makes good contact that the power switch on the machine is in the with bare metal. -
Page 12: General Mma Welding
Ensure the electrode/electrode holder is Select your required current by turning the not near the work-piece or it can earth out. Welding Parameter Adjustment Knob. Turn the machine on using the mains power switch. The front displays will light up and the cooling fan will start. - Page 13 ELECTRODE SIZE SELECTION Electrode size selection will be determined by the thickness of the section being welded. A thicker section will need a larger diameter electrode. The table below shows the maximum size of electrodes for average thicknesses of section (based on General Purpose 6013 Electrode). Average Metal Thickness Electrode Size 1.0 - 2.0mm...
- Page 14 NOTE: TIG Torch option and regulator shown are not supplied with the machine. Bossweld Argon Dual Stage Regulator with Flowmeter. 17 Series Complete Air Cooled TIG Torch Part Number: Part Number: 400209 Bossweld Argon Dual Stage Regulator (side entry) 95.17V.4.1.DA25 400214 Bossweld Argon Dual Stage Regulator (bottom entry) Side Entry Bottom Entry MACHINE SET UP TIG WELD 4.
- Page 15 MACHINE SET UP TIG WELD - CONTINUED Turn the machine on using the mains power Set up the TIG torch. Place the Tungsten switch. The front displays will light up and the Electrode into the torch head and ensure back cooling fan will start.
- Page 16 BOSSWELD authorised representatives or agents of BOSSWELD will not be liable or responsible for the loss of any gas. SCRATCH START ARC Lay the outside edge of the Gas Cup on the...
-
Page 17: General Tig Welding
TIG WELDING - CONTINUED This risk can be minimised using the ‘lift arc’ technique where the short-circuit is formed at a very low current level. The most common way of starting the TIG arc is to use HF (High Frequency). HF consists of FLUX COATING high voltage sparks of several thousand volts which last for a few microseconds. -
Page 18: Tig Welding Setup
TUNGSTEN SELECTION / PREPARATION & GRINDING ELECTRODES Electrodes for DC welding are normally pure tungsten with 1 to 4% thoria to improve arc ignition. Alternative additives are lanthanum oxide and cerium oxide which are claimed to give superior performance (arc starting and lower electrode consumption). -
Page 19: Machine Consumables
BOSSWELD 17 SERIES 150AMP TIG TORCH COMPLETE PART NO. DESCRIPTION BACK CAP 95.17V.4.1.DA25 Tig Torch 17 Valve, 4mt, 1 pc, Dinse 25 INSULATOR COLLET TORCH BODY COLLET BODY PART NO. DESCRIPTION 9957Y04 Back Cap Short GAS LENS COLLET BODY 9557Y05... - Page 20 CODE DESCRIPTION 700010 Bossweld 16”” Black & Gold Welding Glove Bossweld 16inch Welding Gloves Bossweld 16 inch welding gloves available in black and Gold cow split leather. CODE DESCRIPTION 500088 Bossweld Spring Handle Chipping Hammer Bossweld Spring Handle Chipping Hammer Used for slag removal, and cleaning up weld beads post weld, Spring handle for increased comfort.
- Page 21 CODE DESCRIPTION 600311 Bossweld Welder Trolley Universal Bossweld Universal Welders Trolley Multi purpose welder trolley that suits most Bossweld welding machines. Features • 45kg capacity • 3 storage levels • Sturdy formed steel construction • Cylinder holder accepts D and E size gas cylinders and comes with 2 safety chains •...
- Page 22 MACHINE CONSUMABLE OPTIONS TIG Rods See the Bossweld website for a full range of TIG rods Handy 1kg packets and Bulk 5Kg packets available NOTE: This machine will NOT run Aluminium TIG rods TYPE SIZE PART NO TYPE SIZE PART NO Bossweld Black Mild Steel 1.6mm...
-
Page 23: Trouble Shooting
1. Welding clamp rated current is too small, replace with larger size welding clamp. Excessive Spatter 1. Output polarity is incorrect, reverse output connector. For Further Tips and Information please visit Bossweld TV Scan here to visit Bossweld TV OPERATIONAL ENVIRONMENT • Height above sea level ≤1000m •... - Page 24 Version 1.0 2019 OTHER PRODUCTS IN OUR RANGE • ELECTRODES • MIG WIRE • TIG RODS • GAS EQUIPMENT • WELDING HELMETS • WELDING SAFETY • WELDING MACHINES • MIG TORCHES • TORCH SPARE PARTS • TIG TORCHES • WELDING ACCESSORIES •...
