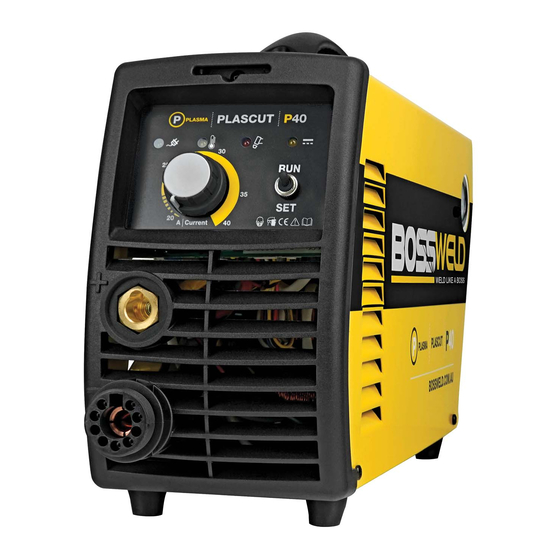

BossWeld P40 Manual

Inverter plasma cutter
Hide thumbs

Advertisement

Table of Contents

P40
INVERTER
PLASMA CUTTER
MANUAL
1
YEAR
LIMITED
WARRANTY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P40 and is the answer not in the manual?

Questions and answers

Related Manuals for BossWeld P40

Summary of Contents for BossWeld P40

  • Page 1 INVERTER PLASMA CUTTER MANUAL YEAR LIMITED WARRANTY...
  • Page 2 The BOSSWELD P40 is the latest in IGBT Inverter cutting technology, this lightweight plasma cutter enables the user to complete high quality cutting of ferrous and non ferrous metals up to 12mm with ease. You will be •...

  • Page 3: Table Of Contents

    CONTENTS PAGE WARRANTY BOX CONTENTS WARNINGS MACHINE CARE / SAFETY INSTRUCTIONS WORK AREA SAFETY MAINTENANCE & DISPOSAL / DUTY CYCLE FRONT & REAR PANEL LAYOUT PLASMA SETUP 11-13 PLASMA CUTTING FUNDAMENTALS TIPS FOR PLASMA CUTTING PLASMA TORCH SPARES TROUBLE SHOOTING COMMON WEAR PARTS 18-19...

  • Page 4: Warranty

    7. Use on Incorrect voltage or non authorised electrical connections and plugs 8. Use of non standard parts 9. Repair, case opening, tampering with, modifications to any part of the item by non authorised BOSSWELD repairers. This warranty covers the machine only and does not include Torches, Leads, Earth Clamps, Electrode holders, Plasma Torches, Tig Torches and any of the parts on those items unless there is a manufacturing fault.

  • Page 5: Box Contents

    BOSSWELD P40 Inverter DC Plasma Cutter Box Contents BOSSWELD P40 Inverter DC Plasma Cutter Plasma Torch Earth Lead Air regulator (built in) Carry Strap Cable / Lead tidy Torch Spares (not shown) Owners Manual (not shown)

  • Page 6: Warnings

    WARNING The device and packaging material are not toys! Children must not be allowed to play with the machine and its accessories. Plastic parts and packaging are choking risks for children. • Open the packaging and remove the welder carefully. •...

  • Page 7: Machine Care / Safety Instructions

    MACHINE CARE / SAFETY Keep the plasma torch, earth clamp and cables good condition. Failure to do this can result in poor cutting quality, which could be dangerous in structural situations. Prior to use, check for breakage of parts and any other conditions that may affect operation of the plasma cutter. Any part of the plasma cutter that is damaged should be carefully checked to determine whether it will perform its intended function whilst being safe for the operator.

  • Page 8: Work Area Safety

    WORK AREA Ensure a clear, well lit work area with unrestricted movement for the operator. The work area should be well ventilated, as plasma cutting emits fumes which can be dangerous. Always maintain easy access to the ON/OFF switch of the plasma cutter, and the electrical mains supply. Do not expose the Plasma cutter to rain and do not operate in damp or wet locations Where plasma cutting must be undertaken in environments with increased risk of electric shock, confined spaces or in the presence of flammable or explosive materials, it is important that the environment be evaluated...

  • Page 9: Maintenance & Disposal / Duty Cycle

    DISPOSAL DISPOSING OF THE PACKAGING Recycling packaging reduces the need for landfill and raw materials. Reuse of the recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. DISPOSING OF THE PLASMA CUTTER Plasma cutters that are no longer usable should not be disposed of with household waste but in an environmentally friendly way.

  • Page 10: Front & Rear Panel Layout

    FRONT PANEL 1. Power Indicator Light 2. Overload Error Indicator 3. Cutting Circuit Operational Lamp 4. Cutting Indicator Light 5. Current Adjustment Knob 6. Run / Set Switch 7. Earth Lead Connection Socket 8. Plasma Torch Central Connector REAR PANEL 9.

  • Page 11: Plasma Setup

    SET UP P40 Inverter DC Plasma Cutter 1. Install the compressed air hose to the connector at the rear panel of the machine to the Compressed Air Inlet. 6. Connect earth Clamp to the terminal 3. Connect the Plasma torch to the Plasma Torch Central Connector.
  • Page 12 SET UP P40 Inverter DC Plasma Cutter- continued Make sure air compressor is turned on and Select your required current turning the capable of 7-8 CFM (cubic feet per minute) Current Adjustment Knob. If the plasma is free air delivery, or 200 LPM (litres per minute)
  • Page 13 SET UP P40 Inverter DC Plasma Cutter- continued After the cutting arc starts, slowly start moving At the end of the cut pause to allow the the torch across the work piece. plasma to sever the last part. Note: Always start the Arc on a material edge or drill a small hole in the work piece to start Arc.

  • Page 14: Plasma Cutting Fundamentals

    PLASMA CUTTING FUNDAMENTALS The Plasma arc process has always been seen as an alternative to the oxy-fuel process. The plasma arc cutting process is illustrated below. The basic principle is that the arc formed between the electrode and the workpiece is constricted by a fine bore, copper nozzle.

  • Page 15: Tips For Plasma Cutting

    Handheld Operation – how it works In a typical handheld plasma system, such as our Bossweld Plascut 40 Air Plasma, the electrode and nozzle consumable parts are in contact with one another inside the torch when in the OFF state. When the trigger is squeezed, the power supply produces a DC current that flows through this connection, and also initiates the plasma gas flow.

  • Page 16: Plasma Torch Spares

    PLASMA TORCH PT40 PART NO. DESCRIPTION 94.PT40.4 Bossweld PT40 Plasma Cutting Torch suits P40 PART NO. DESCRIPTION PART NO. DESCRIPTION 96.60432 Double Pointed Spacer Tecmo PT40/PT60 96.60028 Swirl Ring Tecmo PT25/PT40/PT60 Trafimet S45/S54 PART NO. DESCRIPTION PART NO. DESCRIPTION 96.52582 Electrode back striking Tecmo PT25/PT40/PT60 96.60389...

  • Page 17: Trouble Shooting

    TROUBLE SHOOTING Problem What to do Power indicator is not lit, fan does not work 1. Check that the plasma is plugged into the 240V mains outlet and no output current and is switched on. 2. Check that the mains fuse or breaker has not operated. 3.

  • Page 18: Common Wear Parts

    CODE DESCRIPTION 600311 Bossweld Welder Trolley Universal Bossweld Universal Welders Trolley Multi purpose welder trolley that suits most Bossweld welding machines. Features • 45kg capacity • 3 storage levels • Sturdy formed steel construction • Cylinder holder accepts D and E size gas cylinders and comes with 2 safety chains •...
  • Page 19 • Heavy duty chrome leather • Leather neck and waist adjustable strap • Heavy duty sewing for reliability • Excellent protection (60cm x 90cm) For Further Tips and Information please visit Bossweld TV Scan here to visit Bossweld TV VISIT BOSSWELD.COM.AU...
  • Page 20 Version 1.0 2019 OTHER PRODUCTS IN OUR RANGE • ELECTRODES • MIG WIRE • TIG RODS • GAS EQUIPMENT • WELDING HELMETS • WELDING SAFETY • WELDING MACHINES • MIG TORCHES • TORCH SPARE PARTS • TIG TORCHES • WELDING ACCESSORIES •...
