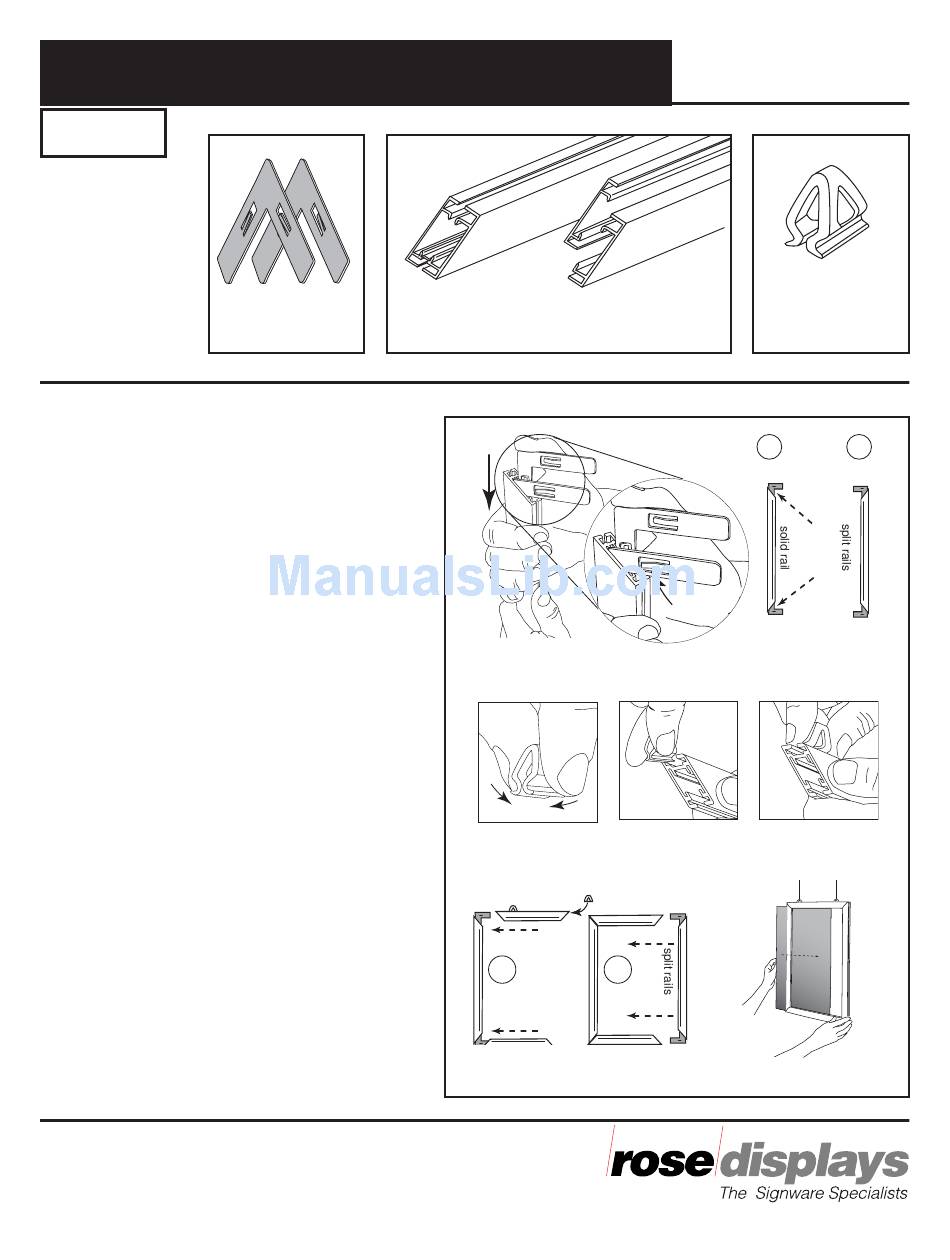

ROSE DISPLAYS ANOFRAME SQUARE WITH MULTICLIPS Manual

AnoFrame

Parts

Instructions for assembly

Step 1

Insert corner brackets into vertical
AnoFrame sides. Fig. 1 & Fig. 2. Note:
Assembly brackets tension tabs face
towards outside of frames. Split rail side
is made up of 2 separate pieces.

Step 2

Squeeze sides of MultiClip together. Fig. 3

Step 3

Align the bottom rail of the MultiClip
with the top channel of the aluminum
holder. Slide MultiClip into rail. Fig. 4
Repeat steps 2 & 3 for second MultiClip.

Step 4

Assemble frame following steps in. Fig. 5
sliding sides together in the order shown.

Step 5

Insert poster. Fig 6.
The AnoFrame™ is a trademark of Rose Displays, Ltd. Neither the
manufacturer nor any sales agent may be held liable for injury, loss or
damage resulting from the use of these products.
Part #02INSAnoFrameSQMC
Incept-7.31.02
TM
-Square Profile

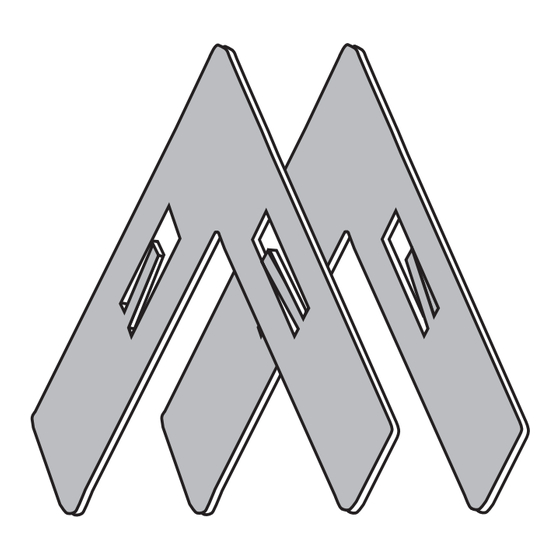

Corner
brackets
AnoFrame rails AnoFrame
12AF-100 split rails
Figure 1
Figure 3
solid rail w/
4
3
solid rail
Figure 5
Instruction Sheet
MultiClips
1UP-0101
1
Figure 2
Figure 4
Figure 6
35 Congress Street, Salem, MA 01970
Tel# 1- 800 631-9707 Fax# 1-800-560-2890
e-mail:signware@rosedisplays.com
2
