ROSE DISPLAYS ANOFRAME ROUND WITH BALL CHAIN Manual

AnoFrame

Parts

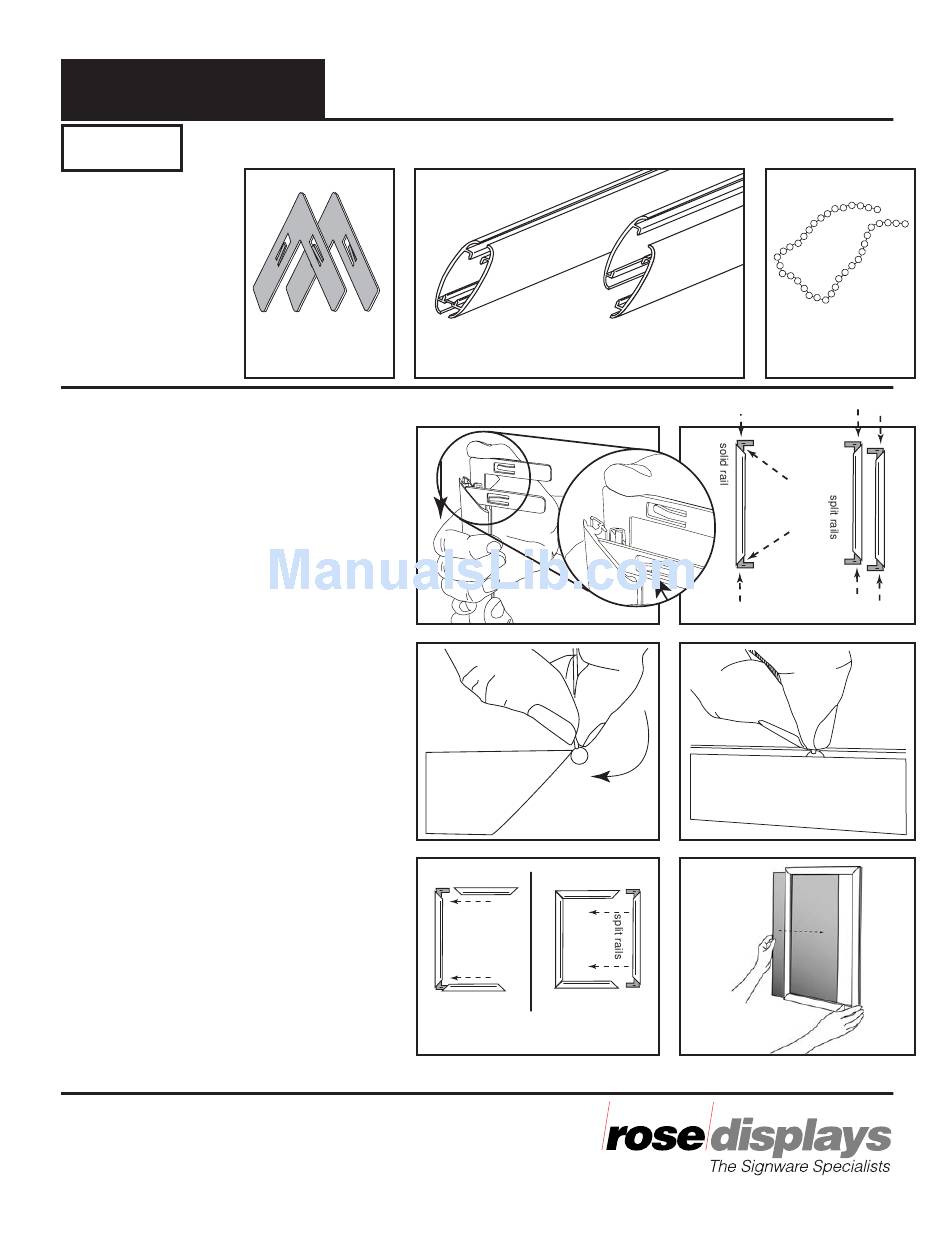

Instructions For assembly

Step 1

Locate the two split rails and the solid
rail that is the same length as the split
rails.
Insert corner brackets into side
AnoFrame rails. Insert two corner
brackets into each end of the solid side
Ano rail. Insert one corner bracket
into each end of each split side Ano
rail. Fig. 1 & Fig. 2
Note: Tension tabs on corner
brackets face towards outside of
frame.

Step 2

Insert one ball into end of top Ano
rail. Fig. 3.
Note: It is easier to slide the ball in
the Ano rail if you hold the chain as
close to the ball as possible. Fig 4.

Step 3

Assemble frame following steps in
Fig. 5 sliding sides together in the
order shown.

Step 4

Insert poster. Fig 6.
The AnoFrame is a trademark of Rose Displays, Ltd. Neither the
manufacturer nor any sales agent may be held liable for injury, loss
or damage resulting from the use of these products.
Part #02INSAnoFrameBallChain
Incept. 8.15.02
TM
Round Profile Instruction Sheet
Corner
Brackets
solid rail
AnoFrame Rails AnoFrame
12AF-100 Split Rails
Figure 1
Figure 3
solid rail
Figure 5
Ball Chain
96-0302P
Figure 2
Figure 4
Figure 6
