ROSE DISPLAYS ANOFRAME SQUARE WITH CABLE AND SAUCER Manual

AnoFrame

Parts

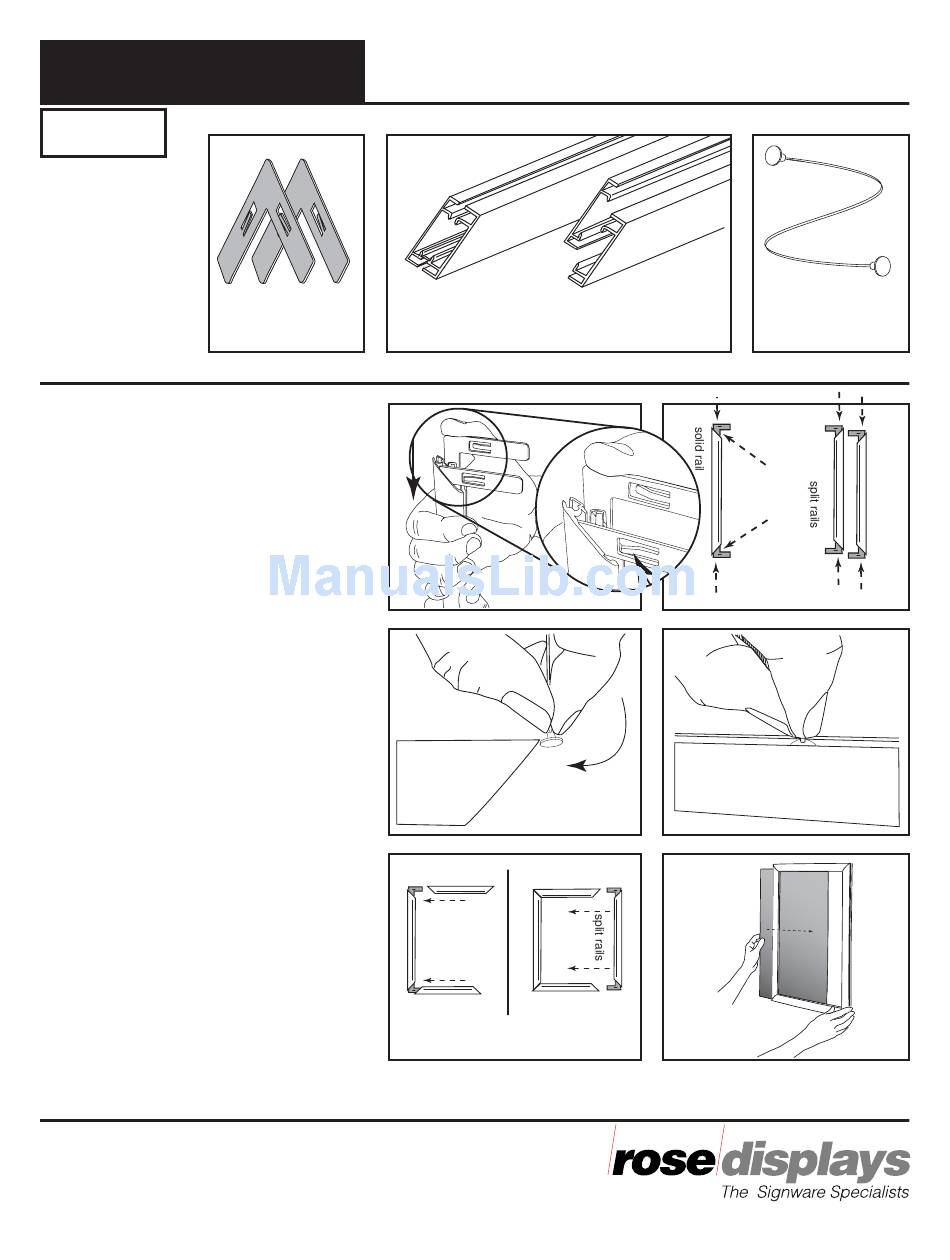

Instructions For assembly

Step 1

Locate the two split rails and the
solid rail that is the same length as
the split rails.
Insert corner brackets into side
AnoFrame rails. Insert two corner
brackets into each end of the solid
side Ano rail. Insert one corner
bracket into each end of each split
side Ano rail. Fig. 1 & Fig. 2
Note: Tension tabs on corner
brackets face towards outside of
frame.

Step 2

Insert saucer into end of top Ano rail.
Fig. 3.
Note: It is easier to slide the saucer in
the Ano rail if you hold the cable as
close to the saucer as possible. Fig 4.

Step 3

Assemble frame following steps in
Fig. 5 sliding sides together in the
order shown.

Step 4

Insert poster. Fig 6.
Note: The AnoFrame shown here is
a square profile. It is available in
either square or round profile.
