AdvanceTrak™

Parts

Snap Rivets

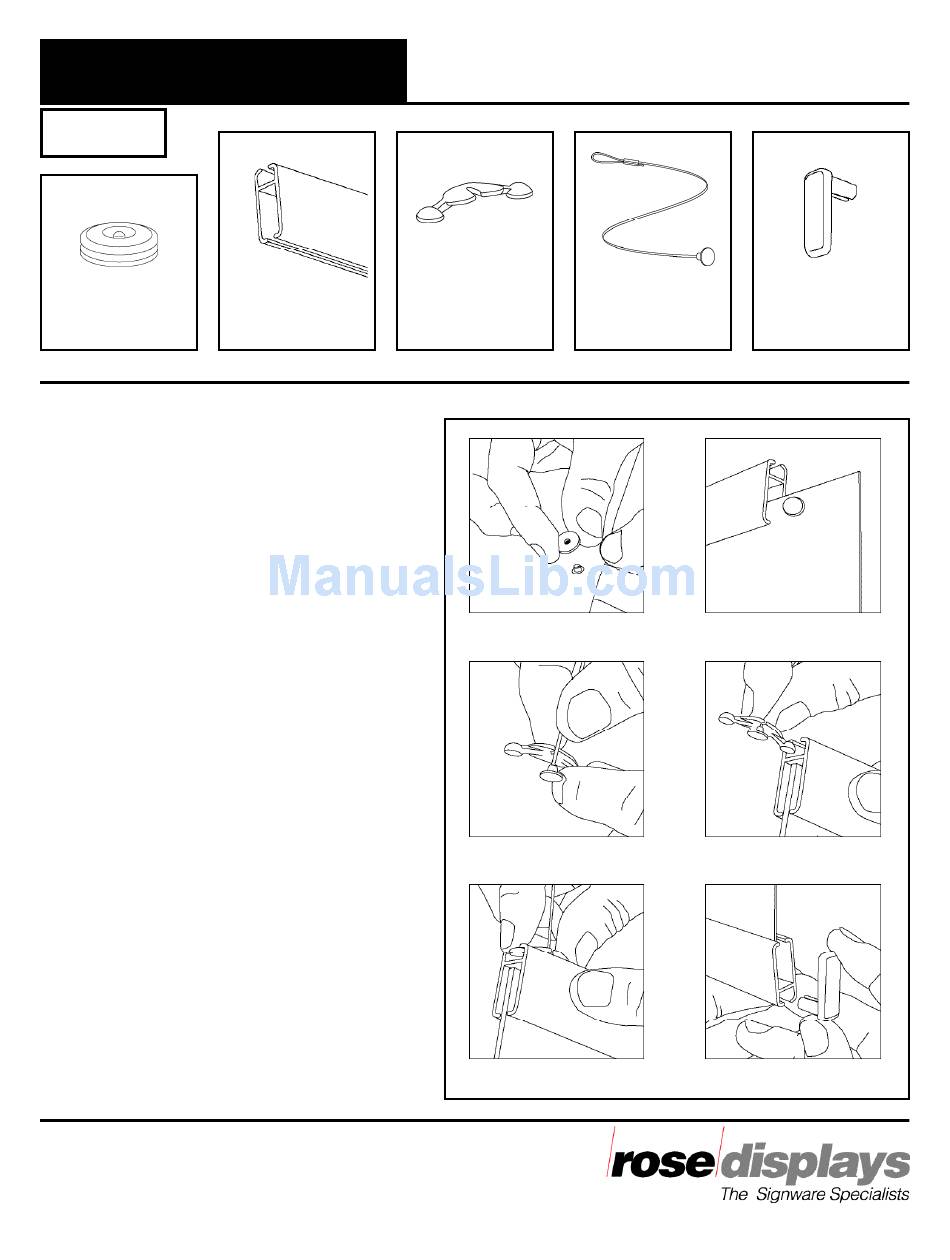

Instructions for assembly

Note: Each graphic should already have
predrilled holes for snap rivets.

Step 1

Insert snap rivets into each predrilled hole.
Snap together. Fig. 1.

Step 2

Slide graphic into aluminum rails (top and
bottom). Rails will conceal snap rivets. Fig. 2.

Step 3

Place cable into inner channel of CableClip.
The cable should snap into place. Fig. 3.

Step 4

Align one end of the CableClip with the
top channel of the plastic holder. Then
insert one round end, press down on the
other round end and slide CableClip into rail.
Fig. 4 & 5 Repeat step 3 for second CableClip.
Note: Repeat steps 1-4 for each of your
graphics. Be sure to hang graphics close
enough together so they can be joined.

Step 5

Insert end caps onto rails. Fig. 6.
Note: If you are using multiple panels,
do not insert end caps. Jump to Step 7
on next page.
Page 1 of 2
The AdvanceTrak™ is a trademark of Rose Displays, Ltd. Neither the
manufacturer nor any sales agent may be held liable for injury, loss or
damage resulting from the use of these products.
Part #03INSAdvanceTrak
Incept-4.11.03
Aluminum Rail
Instruction Sheet
CableClip Loop & Saucer
Figure 1
Figure 3
Figure 5
12AR300
End Cap
Figure 2
Figure 4
Figure 6
