FEET are required to meet the UL listing requirement for installation. The items with part number
US are 'User-Supplied' and are not included in the kit. Secure the enclosures to a concrete slab or
timbers before installing any additional equipment, especially batteries. .Tools Required: 5/16"
open, closed, or socket wrench; torque wrench

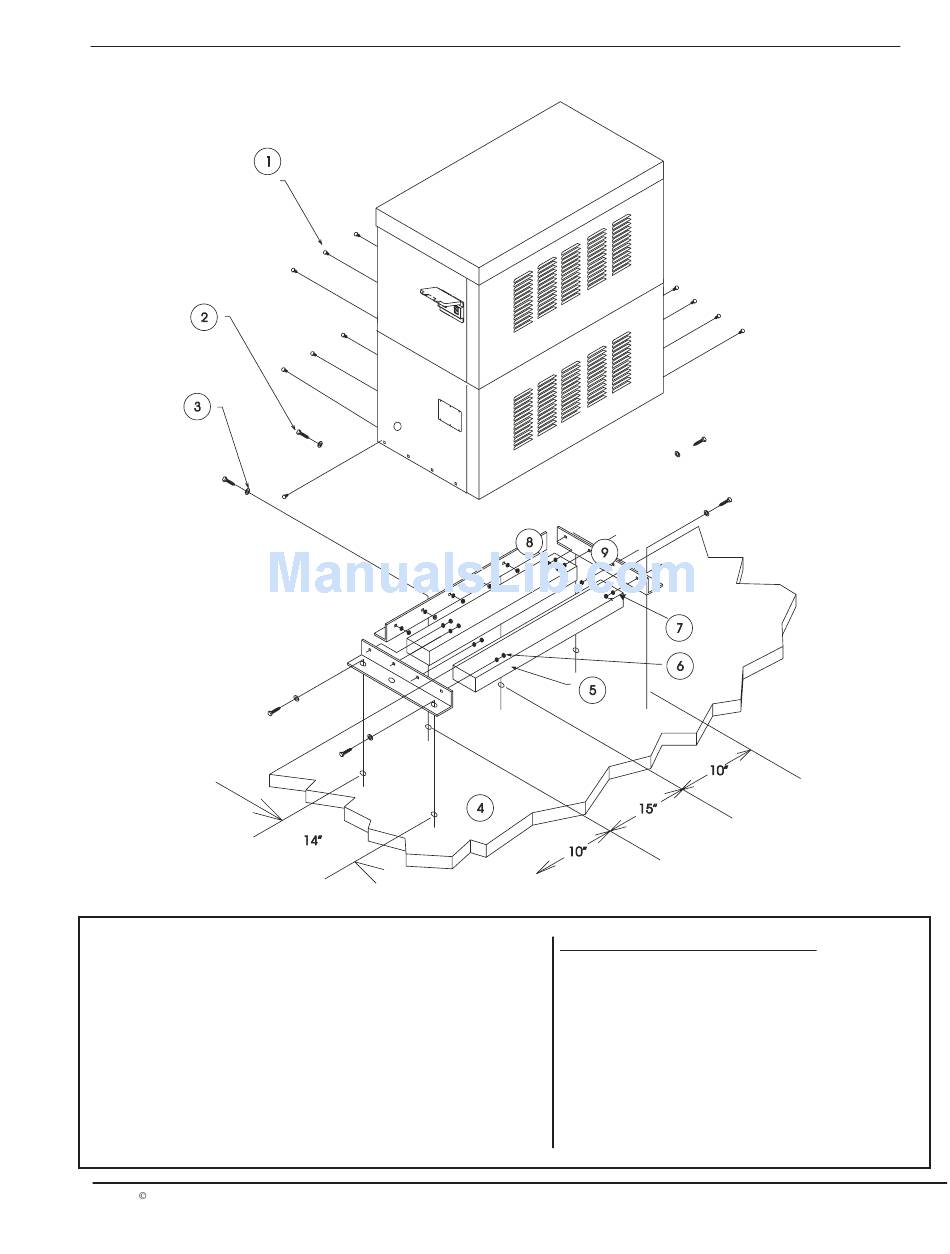

Assembly: Set the PM (sides and bottom) inverted upon the work table and attach the feet (if unit
is to be the only or the bottom unit of the stack). Secure the feet to the PM with 14 10-24 x 1.5"
carriage bolts provided. Place an internal-tooth starwasher on the bolt, insert through the PM and
then the bracket, place a flatwasher over the bolt and secure with a 10-24 nut. Repeat 13 times to
secure the brackets on three sides. Tighten to 10-12 foot pounds with 5/16" wrench, socket, or nut
driver. Starwashers have a sharp and a smooth side. Always place the sharp side against the
powder-coated metal.
Copyright Trace Engineering Co., Inc.
5916 195th Street, NE
Arlington, WA 98223 USA
# Qty Part No.
1 14 3190
2 6 US
3 6 US
4 US
5 US
6 14 3192
7 14 465
8 1 3209
angle
9 2 3208
angle
Telephone (360) 435-8826
Fax (360) 435-2229
www.traceengineering.com
6-17
Description
10-24 x 1.5" carriage bolts
½" x 1½" anchor bolts or lag screws
½ " flat washers
concrete slab or 4" x 4" timbers
2" x 4" x 32" pressure-treated lumber
10-24 SAE SS nut
#10 SAE flat washers
33.5" x 1.5" x 3/16" 6061 T6 aluminum
17" x 1.5" x 3/16" 6061 T6 aluminum
Part Number 3471
Released: Thursday, April 29, 1999
