Pm Add - Trace Engineering POWER MODULE SYSTEM Assembly Instructions Manual

PM ADD

PM ADD
PM ADD is an enclosure which does not include
FEET or a LID. It is used as stacking enclosure atop
a PM. Identical in every other respect, PM ADD is
used for adding equipment including batteries, an
inverter, charge controllers, or what ever you like. It
is fabricated from the same high-quality material as
the PM module.
Copyright Trace Engineering Co., Inc.
5916 195th Street, NE
Arlington, WA 98223 USA

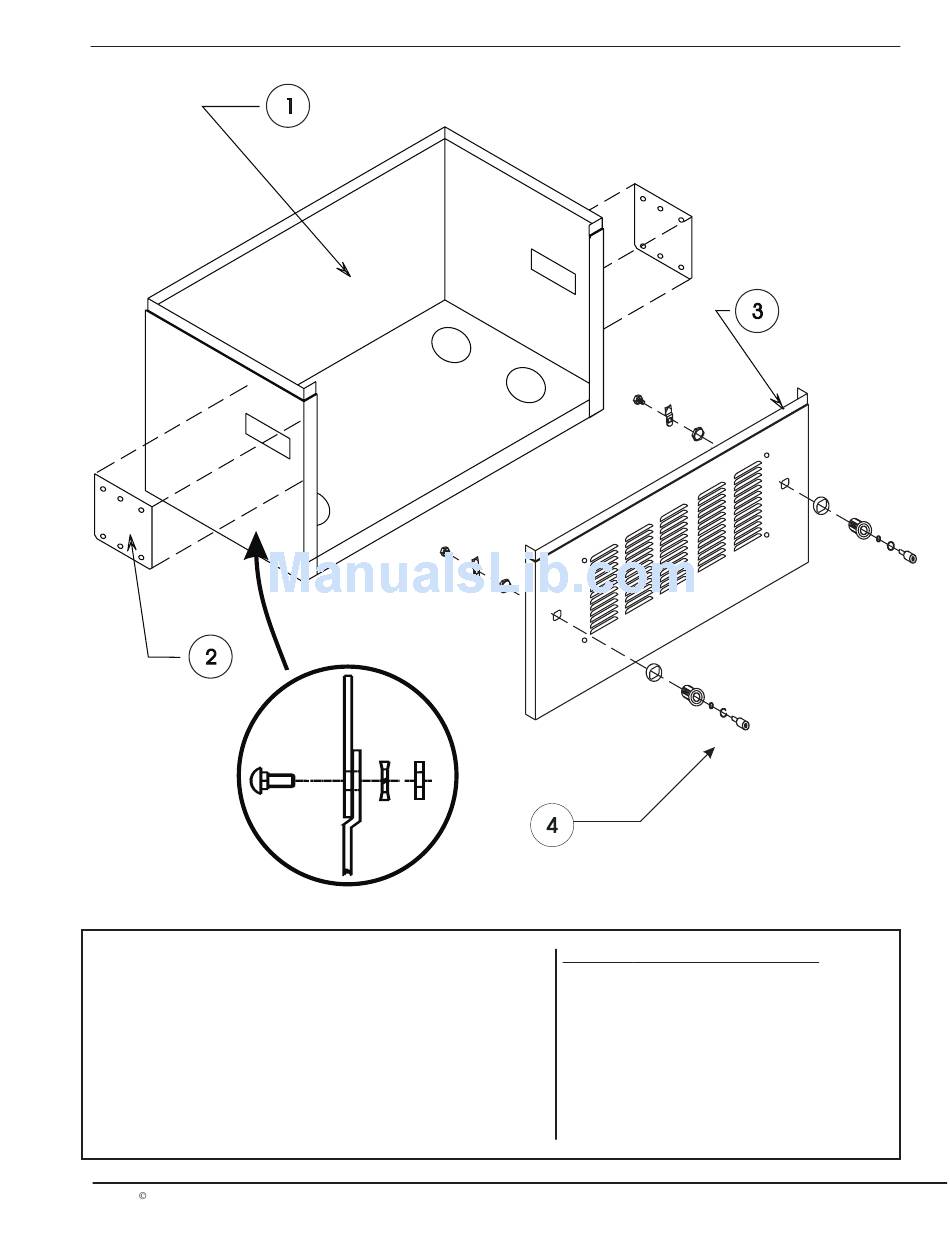

A B C
# Qty Part No.
1 1 ELEC-MOD
2 2 BLANK
openings
3 1 DOOR
screen
4 2 LATCH
optional
Use the fasteners shown in the inset above and listed below to secure
the ADD to the enclosure or base.
A 3190 14
B 465 14
Telephone (360) 435-8826
Fax (360) 435-2229
www.traceengineering.com
6-5
Description
Side, back & floor panel
Cover for unused breaker
Ventilated door panel w/ baffle &
Cam-type latches, locks are
10-24X1/2" carriage bolts
#10 SAE flat washer
Part Number 3471
Released: Thursday, April 29, 1999
