5-10
3. Route all battery temperature sensor (BTS) cables through the opening
in the tray of the module at the bottom right rear behind the DC disconnect
breakers. This allows the BTS cables to be routed along with the battery
cables. There may be multiple temperature sensors depending on the
number of charge controllers and inverters in the system. Utilize all
available temperature sensors to maximize system performance. Connect
the temperature sensors to the charge controllers through one of the
openings in the rear of the PM with a plastic grommet protecting the edge.
Place all temp sensors on the same battery and in the middle of the battery
bank.

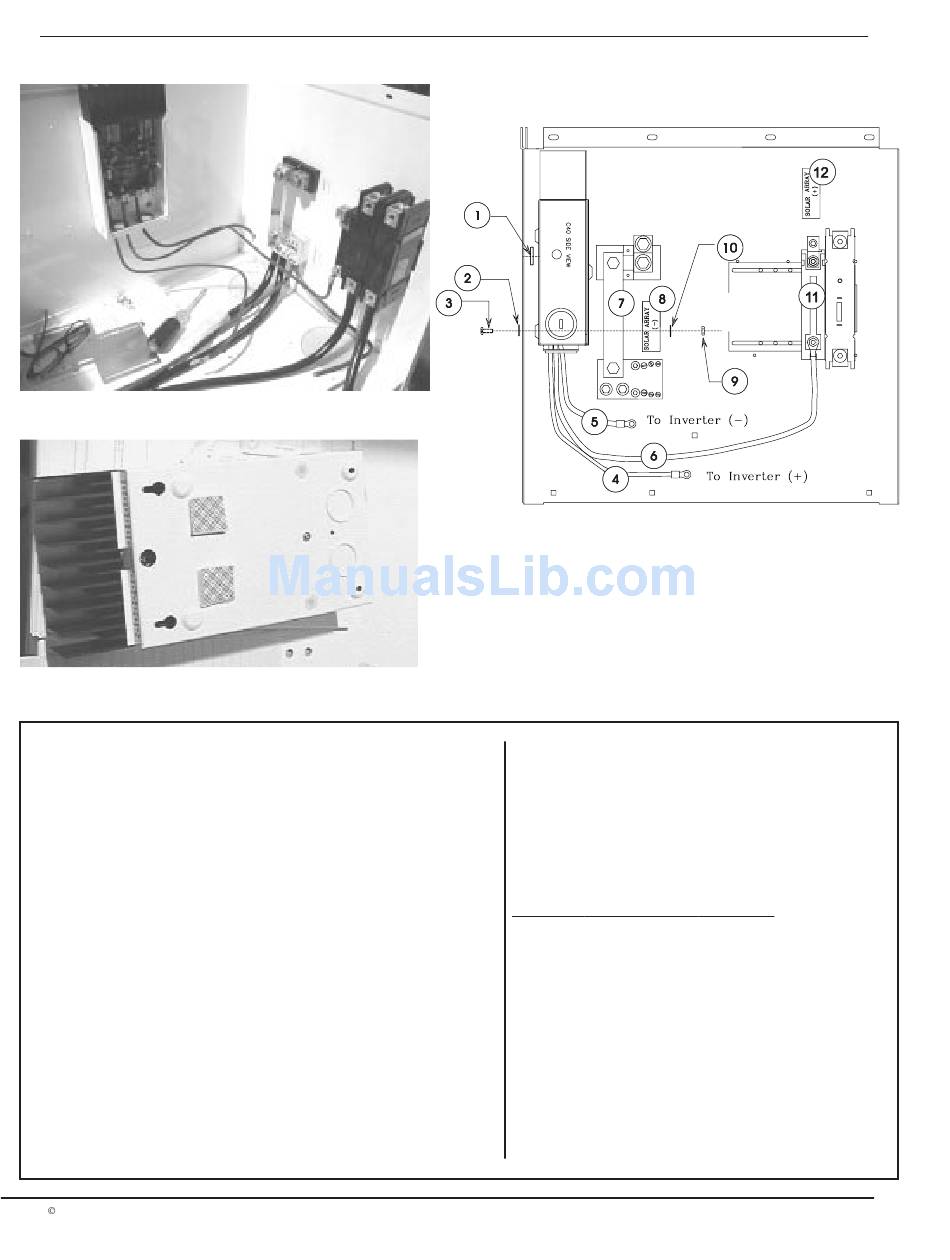

The top view illustrates the installation, mounting, and cabling of the C40
option looking toward the right-hand cabinet panel. The C40 multipurpose
controller has three modes: PV charge control mode, DC load control
mode, and diversion load control mode (the controller can operate in only
one mode at a time). In addition, the C40 option includes a 60-amp
Heineman™ DC breaker, #6 AWG wiring with ring terminals, and all
mounting hardware. A 24-page operating manual for the C40 controller is
also included. The VLC40 is a voltage limiting controller. It includes all of
Copyright
Trace Engineering Co., Inc.
5916 195th Street, NE
Arlington, WA 98223 USA
PMO-40, C40k & VLC40 for Sinewave Systems
the items that come with the C40, but uses a modified C40
for systems that use PV modules generating high
open-circuit voltage (over 70 volts DC) without batteries.
The VLC40 automatically limits voltage to less than 70 volts
DC. The PMO-C40K installation kit includes everything that
the PMO-C40 includes except the C40 and the C40
operating manual.
#
Qty
1
6"
2
2
3
2
4
AR
5
AR
6
AR
7
1
8
1
9
2
10
2
11
1
12
1
Telephone (360) 435-8826
Fax (360) 435-2229
www.traceengineering.com
Part No.
Description
3304
1" square of double-backed tape
486
#10 starwasher
411
10-32 x ½" HH SS bolt
2323
6 AWG cable w/ 3204 decal & 2430 ring
terminal to inverter positive terminal
2323
6 AWG cable with 2430 ring terminal &
3228
decal to inverter negative terminal
2323
6 AWG cable & 716-1 ring terminal to
60-amp Heineman DC breaker
DCBB
DC bonding block
3224
"Solar Array (-)" decal
442
10-32 HH SS capscrew
486
#10 star washer
2298
60-amp Heineman™ DC breaker
3233
"Solar Array (+)" decal
Released: Thursday, April 29, 1999
Part Number 3471
