Trace Engineering POWER MODULE SYSTEM Assembly Instructions Manual page 57

PM
2
3
4
PM

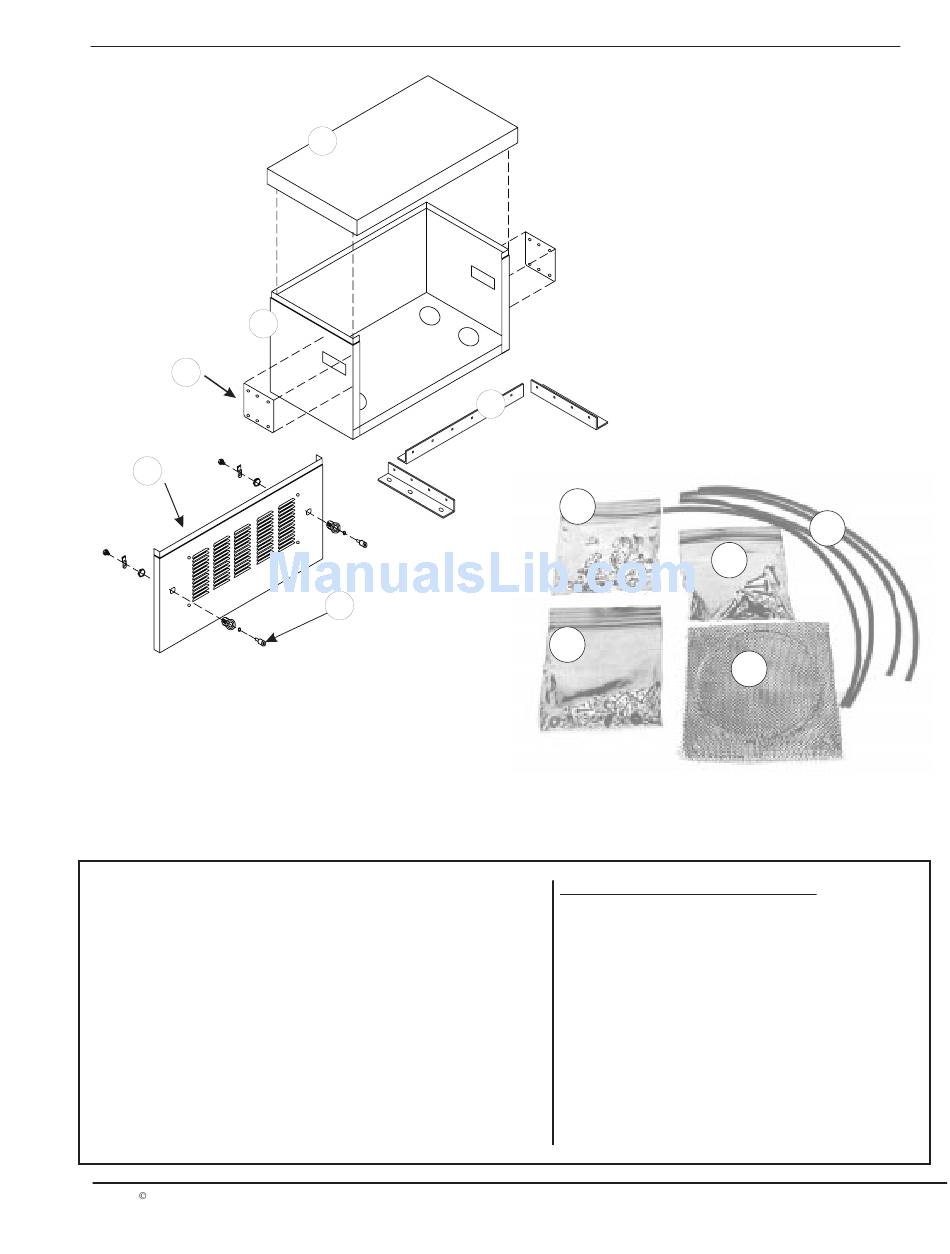

The PM is the basic power module component. PM components are
fabricated from 0.090 T6061 aluminum plate, and are powder-coated to
prevent corrosion (except the blanks for unused breaker openings).
Included are the lid, the back and sides, two blanks, the door and
associated baffles and screens, door latches, neoprene gaskets, and
aluminum brackets for securing the module to a concrete pad or wooden
platform. The gaskets, baffles, and screens for the door and cabinet
bottom prevent insects and small animals from entering the cabinets.
Install the neoprene perimeter gasket only after all PM's and PM-ADD's
have been set atop each other to ensure complete sealing.
Copyright Trace Engineering Co., Inc.
5916 195th Street, NE
Arlington, WA 98223 USA
1
6
5
7
a
7
b
# Qty Part No.
1 1 LID
2 1 ELEC-MOD (back & sides)
3 2 BLANK
4 1 DOOR
5 1 LATCH
6 1 FEET
7a 1
bolts,
440 nuts, 466 flat washers, 492 internal starwashers
7b 1
425
bolts, 444 nuts, 485 internal starwashers, 468
7c 1
3190
carriage bolts, 3192 nuts, 485 internal starwashers,
Telephone (360) 435-8826
Fax (360) 435-2229
www.traceengineering.com
6-3
8
7
c
9
Description
PM mounting hardware includes 16 each: 401
inverter fastener assortment includes 6 each:
flatwashers, 2147 external starwashers.
module fastener assortment includes 14 each:
2147 external starwashers, 465 flat washers.
Part Number 3471
Released: Thursday, April 29, 1999
